Ambient Temperature Sensor / Switch HVAC: Description and Operation

GF83.57-P-4000SX Outside Air Temperature Sensor Component Description

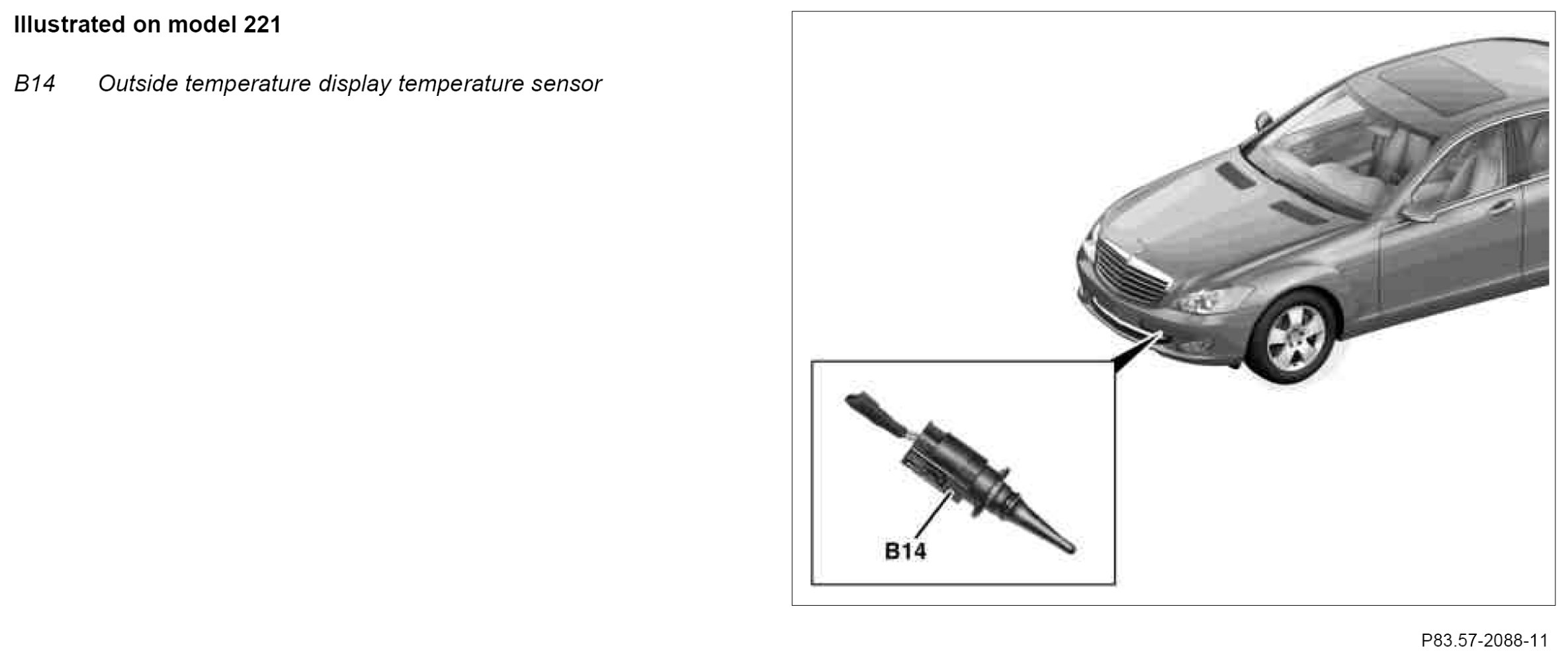

Component Identification:

Location
The temperature sensor is located in the left front in the bumper.

Task
Recording the outside air temperature.

Function
The temperature sensor changes its resistance depending on the outside air temperature. It is discretely read in by the front SAM control unit with fuse and relay module (N10/1).
