Steering Wheel Heater Control Module: Diagrams

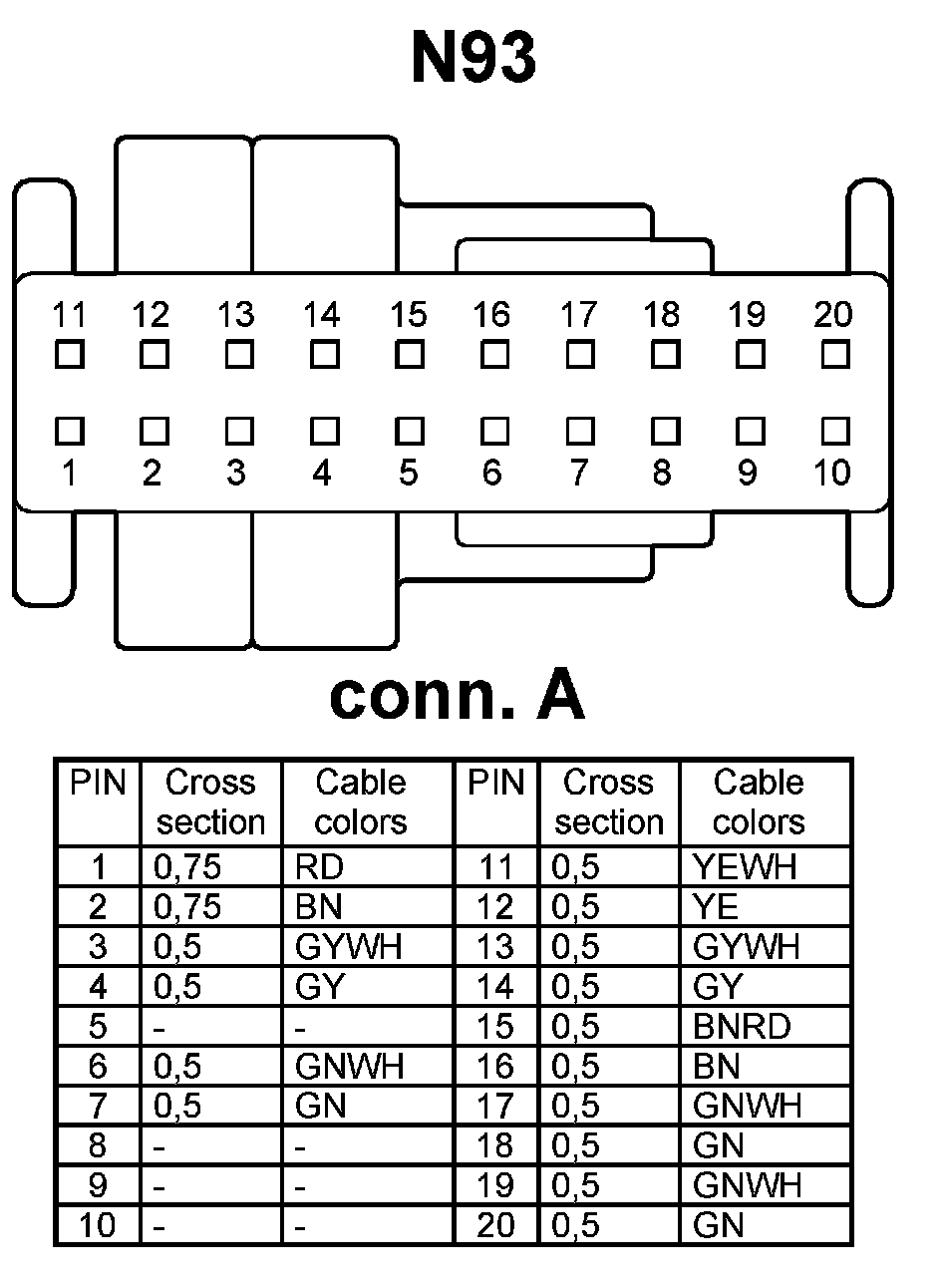

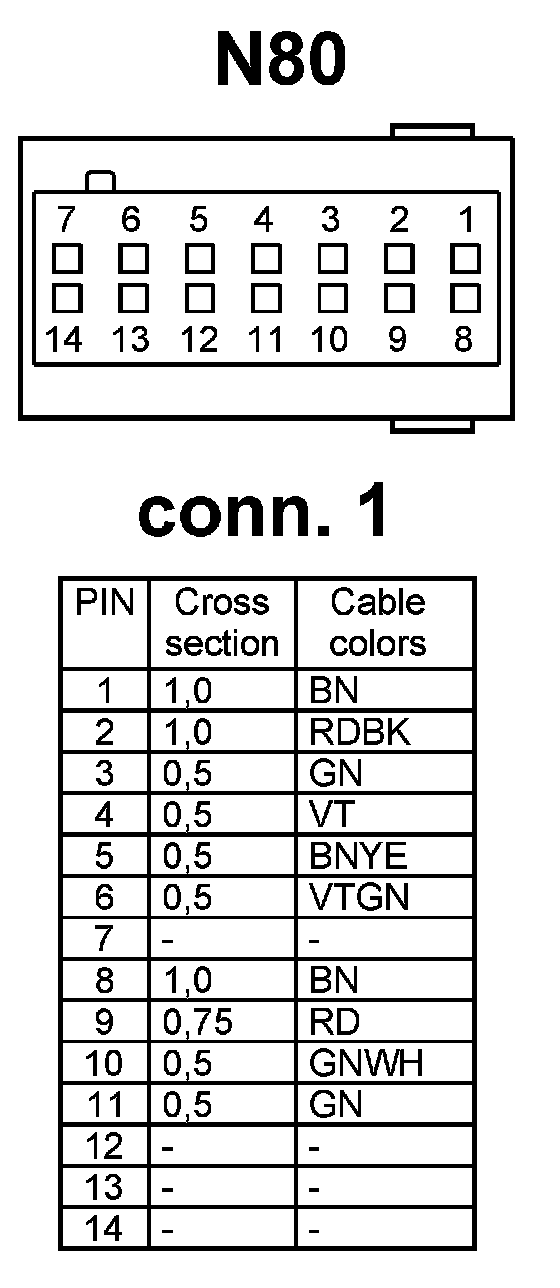

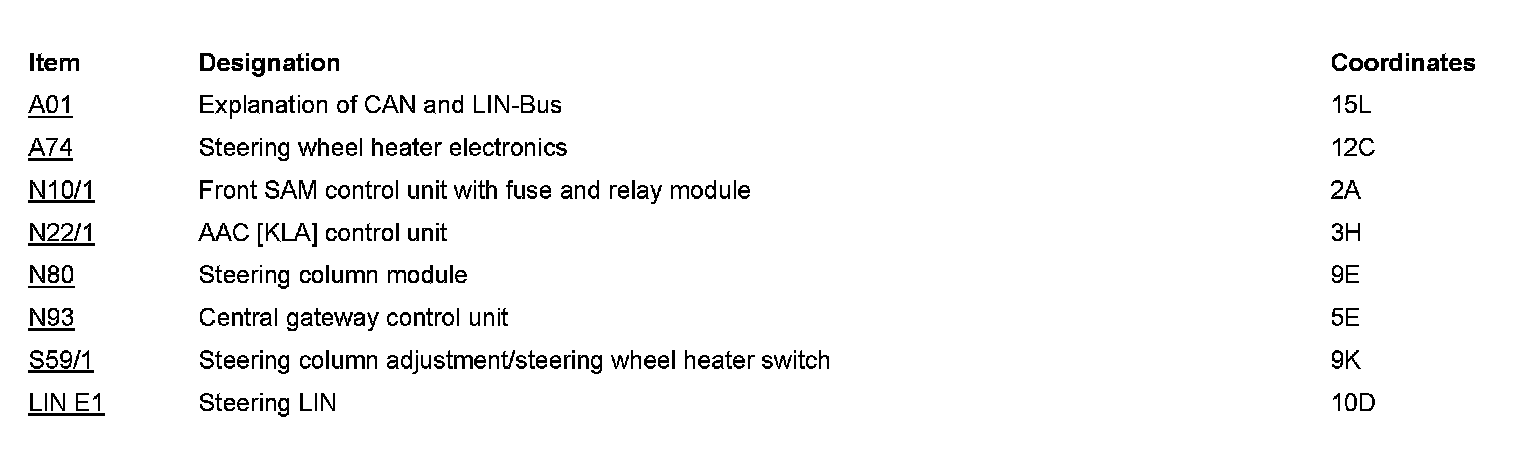

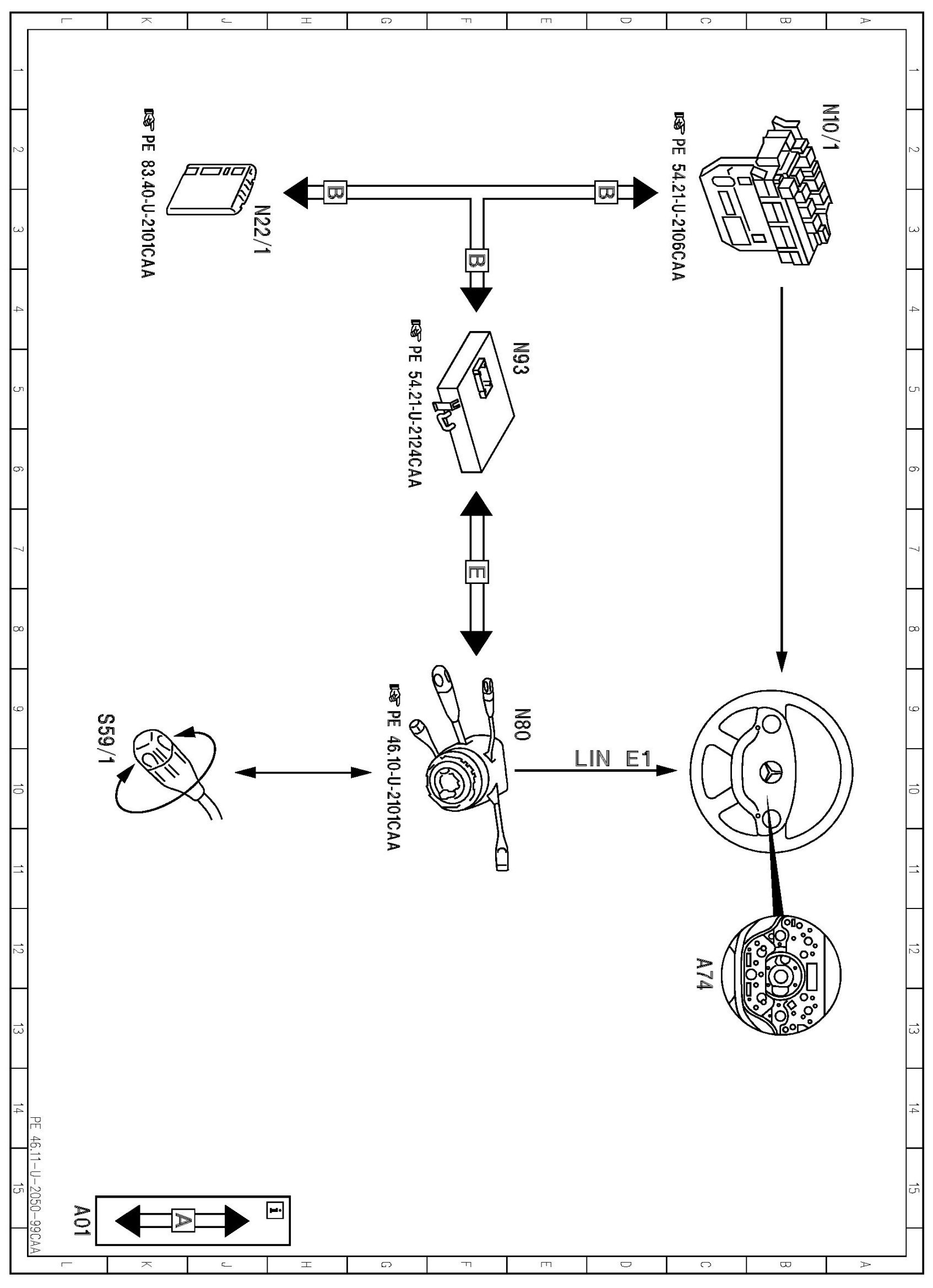

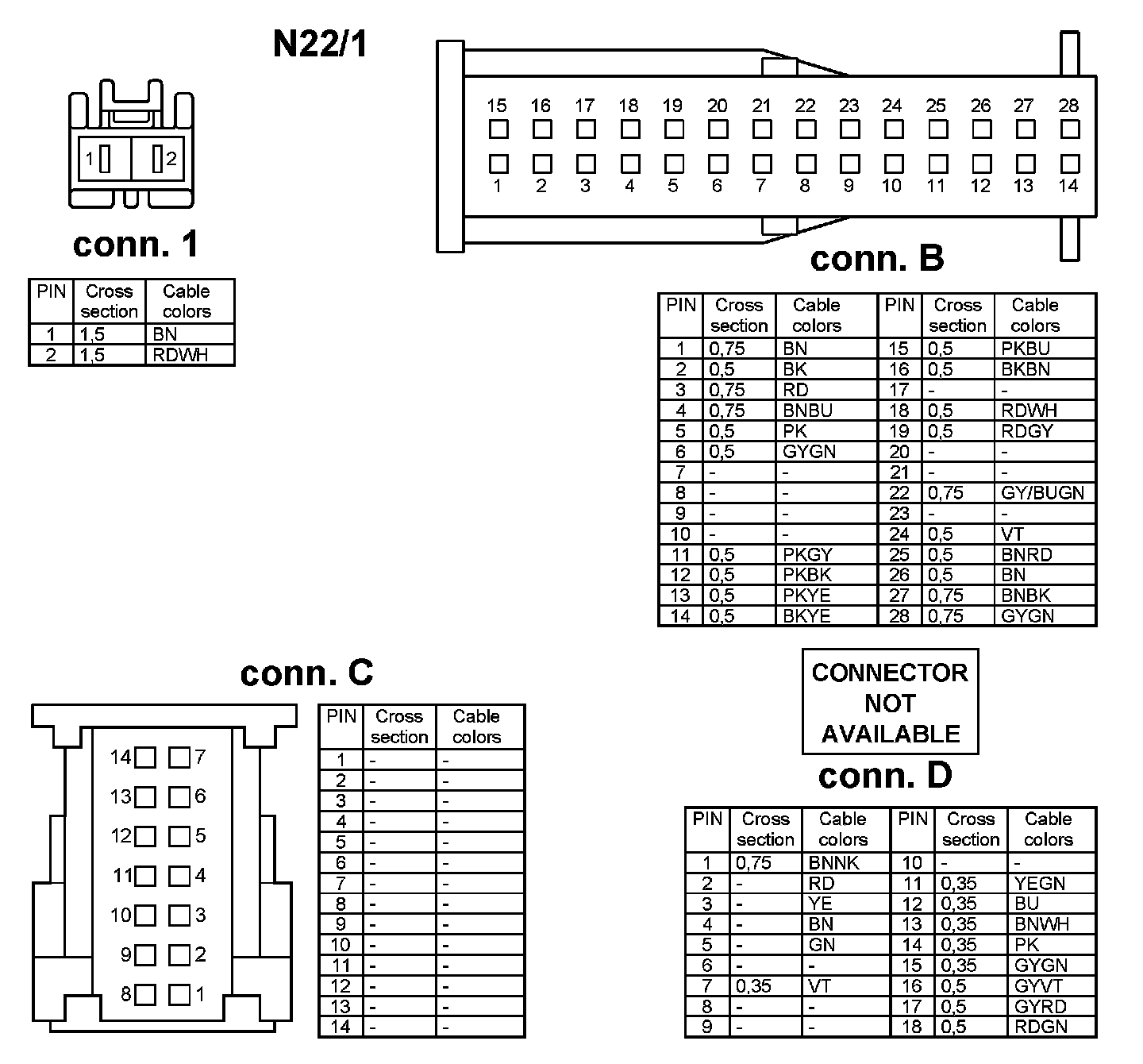

PE46.11-U-2050CAA Function Diagram of Electrical System For Steering Wheel Heater

MODEL 216
- with CODE (443) Steering wheel heater
- up to Model Year 2008



























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
