Instruments - Beep From Instrument Cluster

Instrument cluster: Beep tone when unlocking the vehicle or switching on the ignition

Topic number LI54.30-P-047910

Version 2

Design group 54.30 Instrument cluster/display instruments/warning devices

Date 01-15-2010

Validity Models 216, 221 up to model year 2008 (code 808)

Reason for change Remedy revised

Reason for block

Complaint:

After a software update or after replacement of the instrument cluster (A1), a single beep tone may be heard from the instrument cluster (A1) when the vehicle is unlocked and when the ignition is switched on.

Cause:

Communication error in new instrument cluster (A1) software.

Remedy:

As of DAS/Xentry Diagnostics 01/2010 the correct software is installed during initial startup of the instrument cluster (A1).

Do not remove/install/replace any parts.

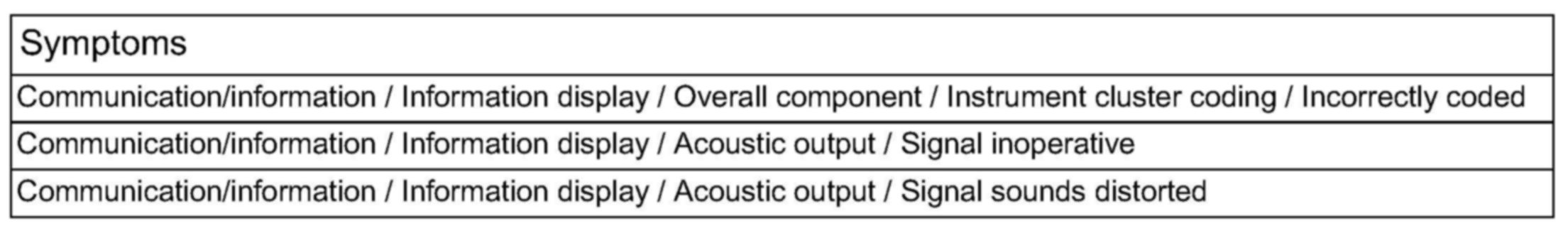

Symptoms

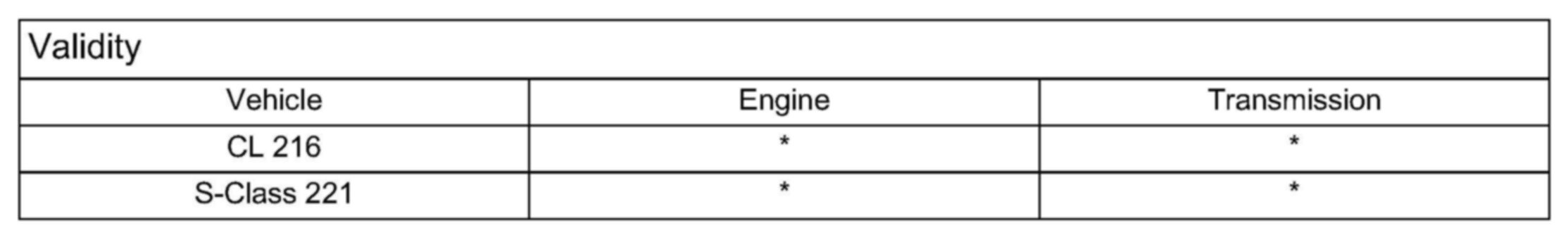

Validity
