Collision Avoidance Module: Locations

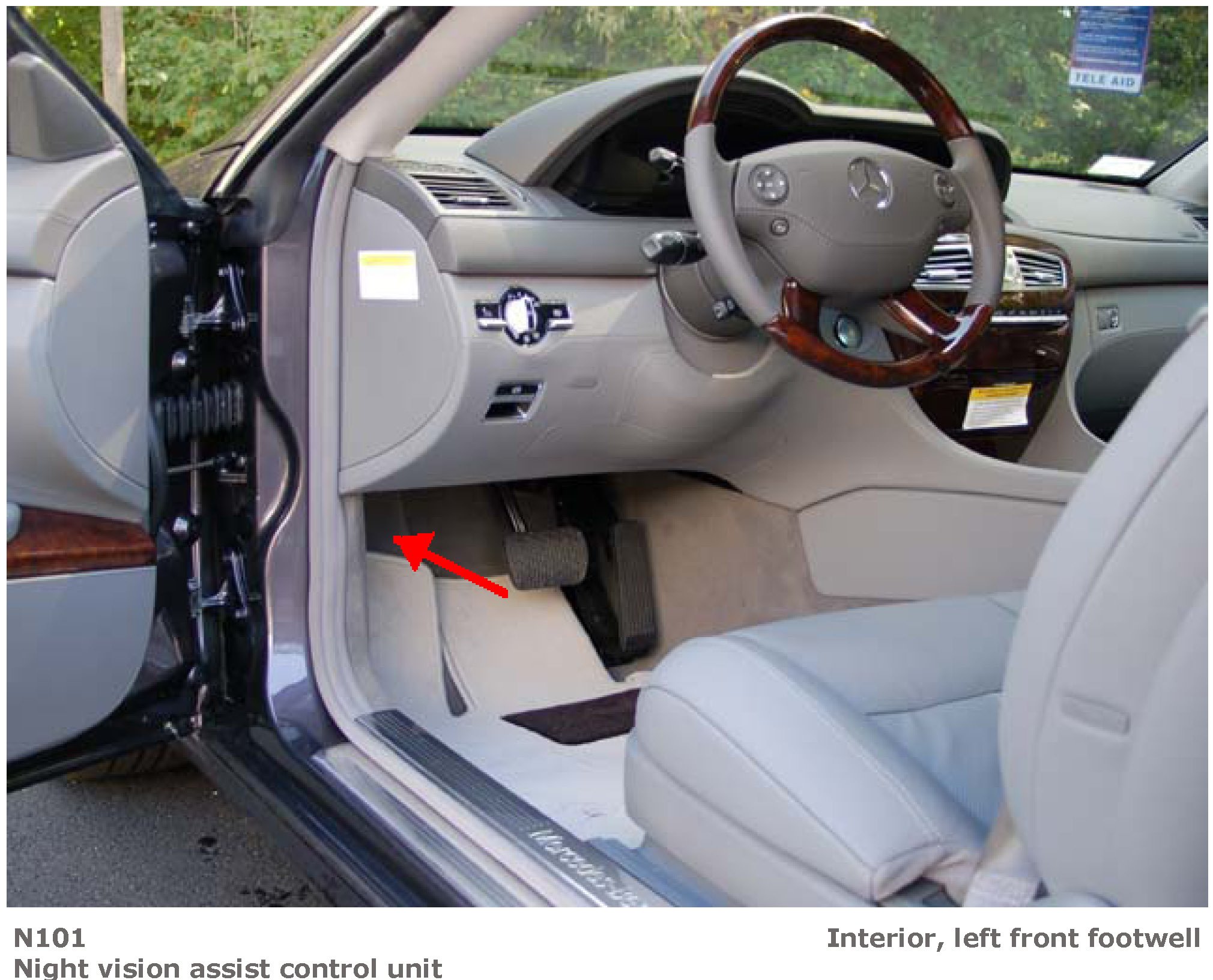

Night Vision Assist Control Unit (View 1):

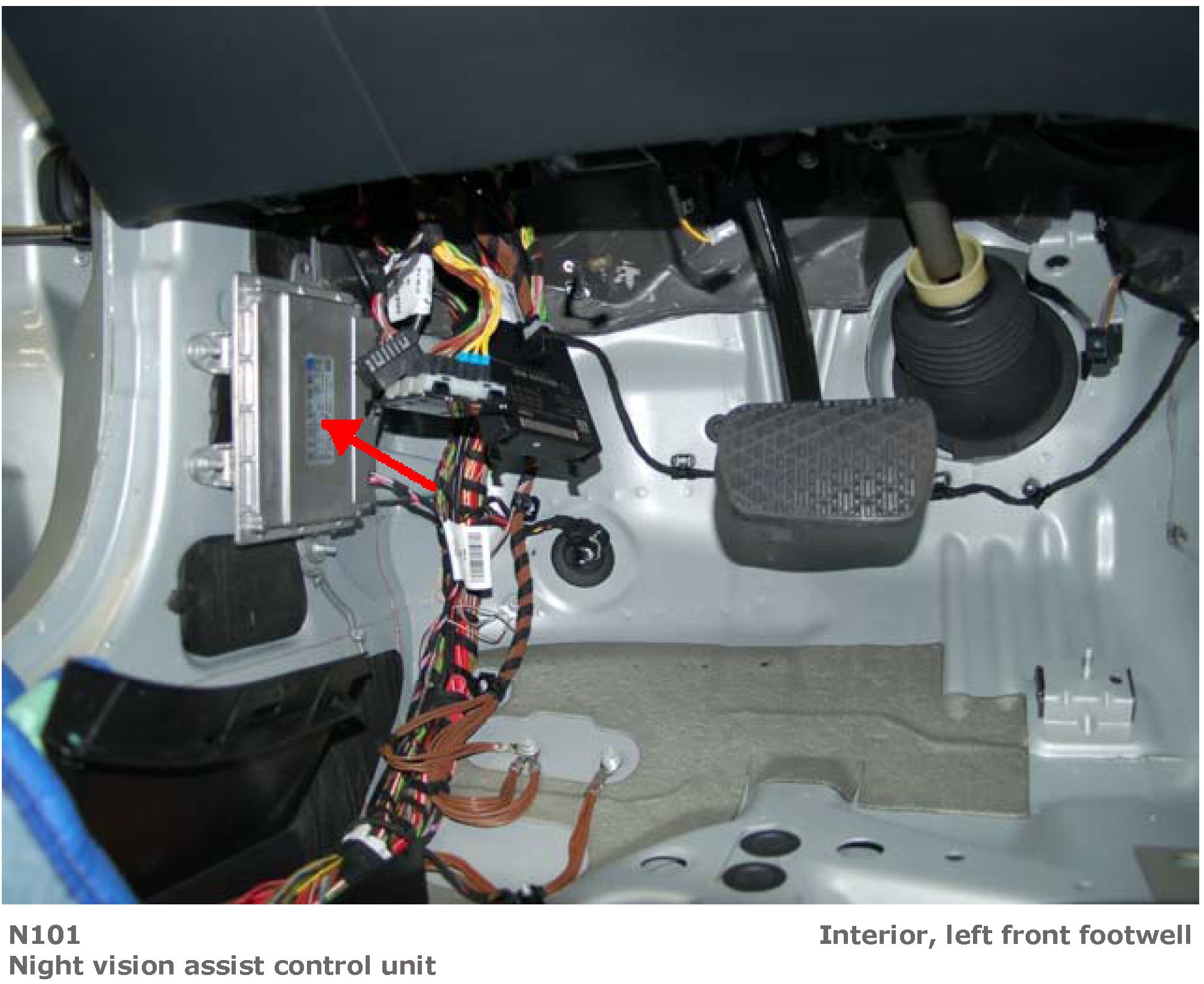

Night Vision Assist Control Unit (View 2):
