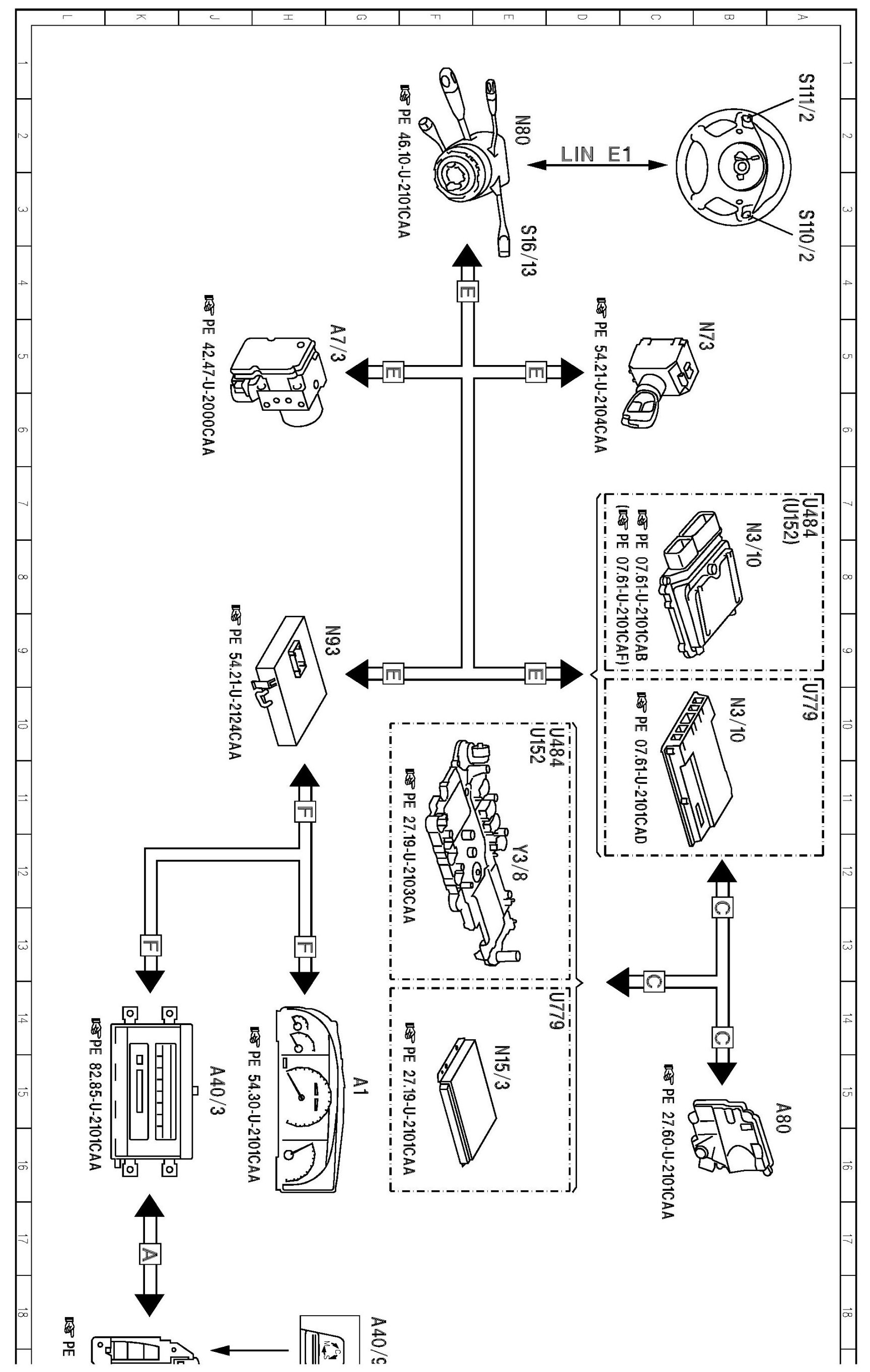

PE27.19-U-2052CAA DIRECT SELECT Electrical Function Diagram Electrical Function Diagram

PE27.19-U-2052CAA DIRECT SELECT Electrical Function Diagram

TRANSMISSION 722.6 in MODEL 216.376
- with ENGINE 275.953
- up to Model Year 2008
TRANSMISSION 722.6 in MODEL 216.379
- as of 06/01/07
- with ENGINE 275.982
- up to Model Year 2008
TRANSMISSION 722.9 in MODEL 216.377
- with ENGINE 156.984 as of 06/01/07
- up to Model Year 2008
TRANSMISSION 722.9 in MODEL 216.371
- with ENGINE 273.961
- up to Model Year 2008

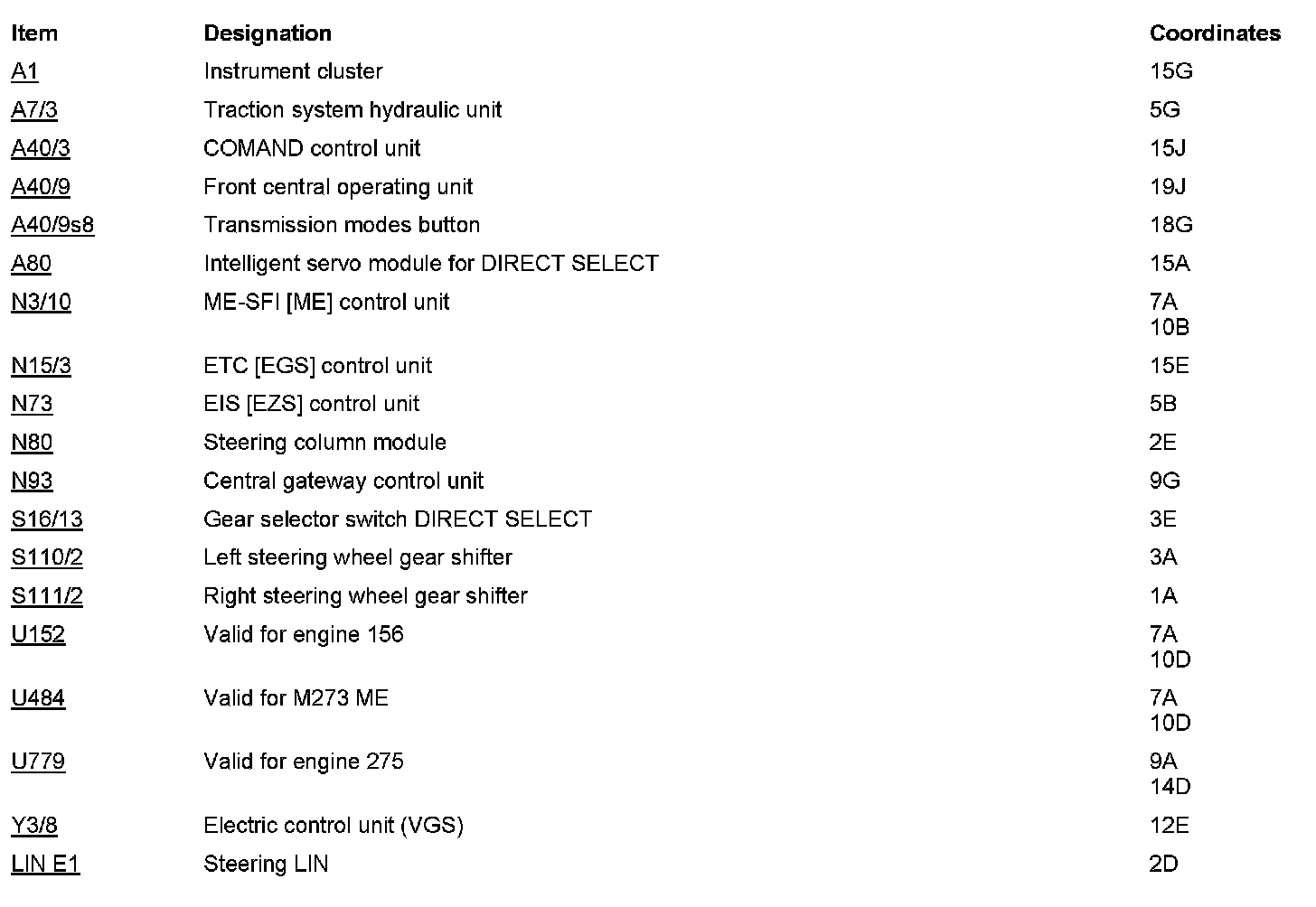

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
