PE27.19-U-2050CAB Function Diagram of Electrical System For Electronic Transmission Control (ETC)

PE27.19-U-2050CAB Function Diagram of Electrical System For Electronic Transmission Control (ETC)

TRANSMISSION 722.6 in MODEL 216.376
- with ENGINE 275.953
- up to Model Year 2008
TRANSMISSION 722.6 in MODEL 216.379
- as of 06/01/07
- with ENGINE 275.982
- up to Model Year 2008

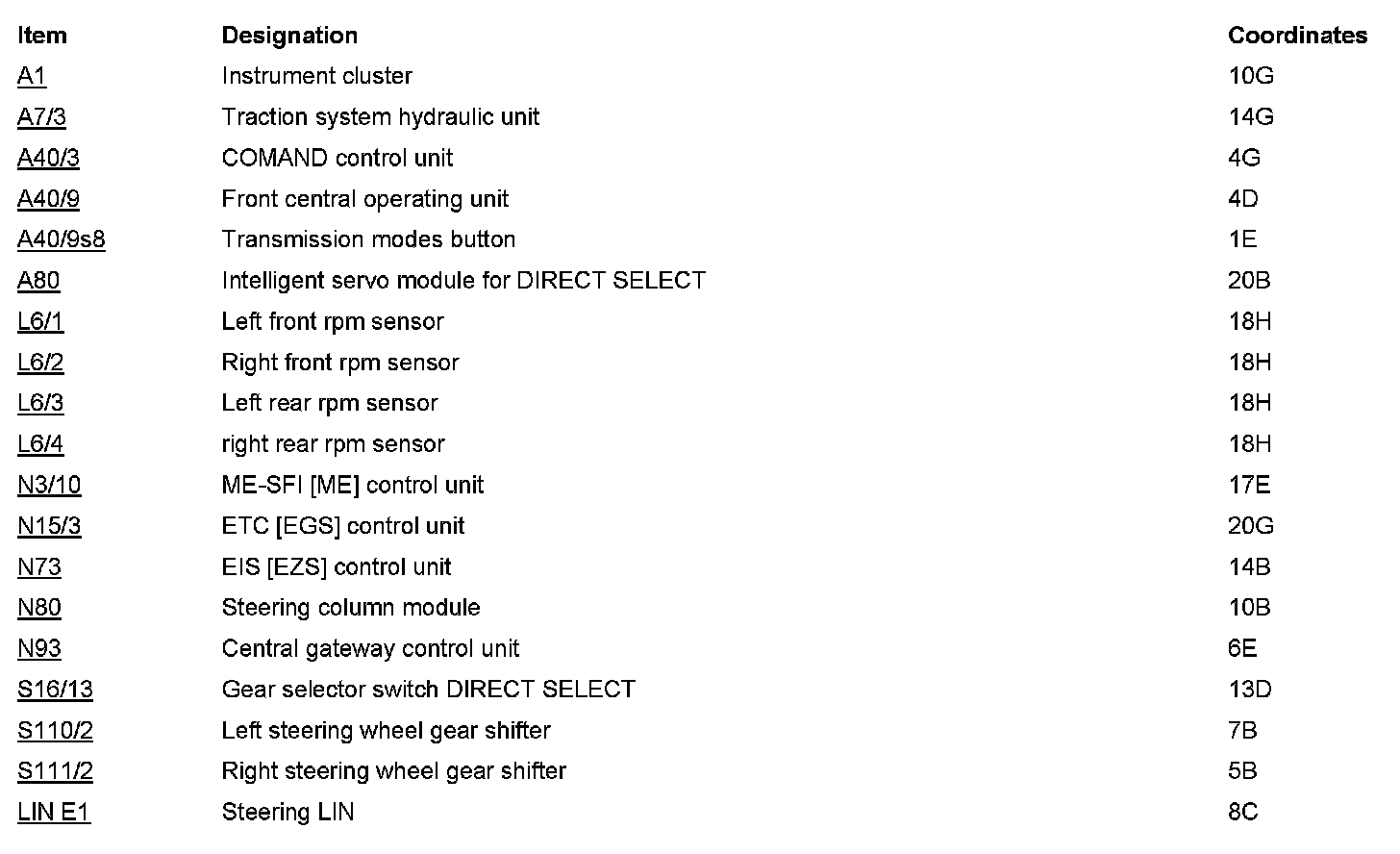

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
