Data Link Connector: Description and Operation

GF54.22-P-2200SX Data Link Connector Component Description
MODEL 216.3, 221.0 /1 up to Model Year 8





Illustrated on model 221
X11/4 Data link connector

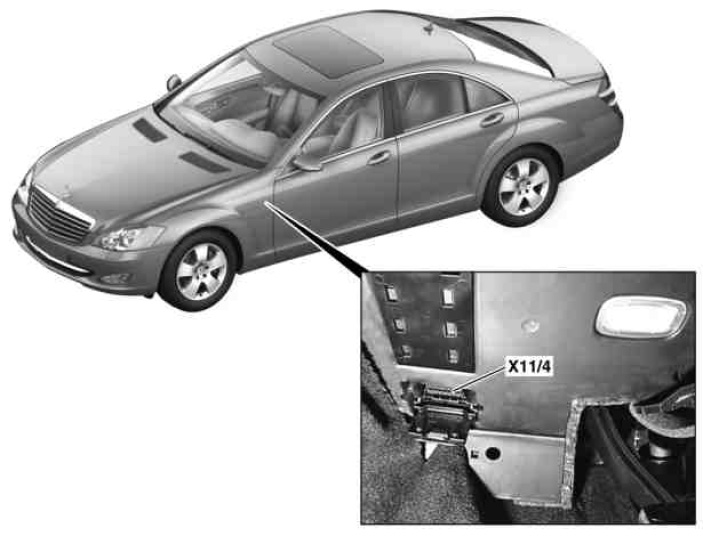

Location
The data link connector is installed in the footwell on the driver's side of the vehicle.

Task
The data link connector is used to connect the STAR DIAGNOSIS to the central gateway control unit (N93) via the diagnostic CAN.

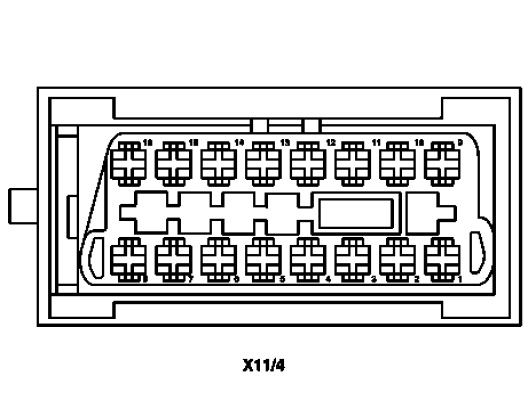

Assignment of data link connector (X11/4)
^ Circuit 31 (pin 4)
^ Circuit 31 (pin 5)
^ Diagnostic CAN (high) (pin 6)
^ Diagnostic CAN (low) (pin 14)
^ Circuit 30 (pin 16)
The remaining pins are not used.
