GF00.20-P-0004-01SX Active Service System (ASSYST Plus), Operating Instructions

GF00.20-P-0004-01SX Active Service System (ASSYST PLUS), Operating Instructions

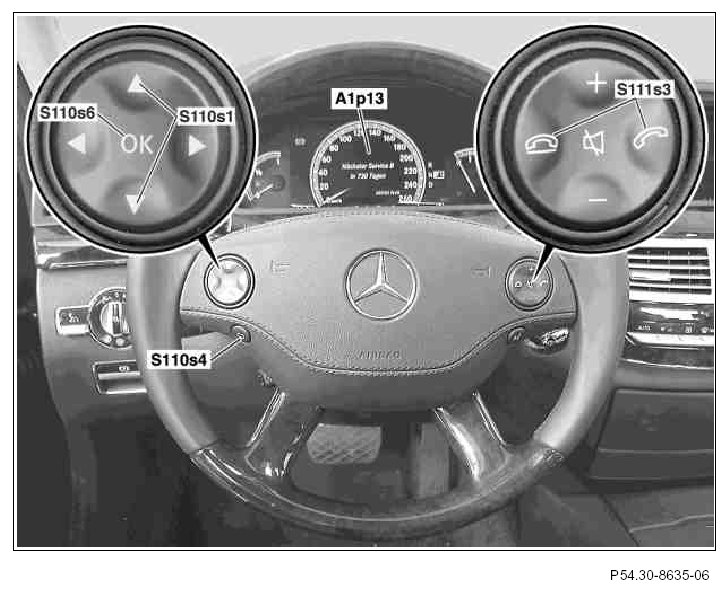

Shown on model 221.056 up to 31.8.06







A1p13 Multifunction display
S110s1 Scroll forward/back button
S110s4 "Back" and VCS [SBS] off button
S110s6 OK button

General
The Active Service System PLUS (ASSYST PLUS) can be used to display information in the multifunction display of the instrument cluster (A1).
The following information can be displayed:
- Service interval indicator
- Remaining distance
- Remaining time
- Engine oil warning messages
- Service memory full

The ASSYST PLUS is operated via the left multifunction steering wheel button group (S110) and the right multifunction steering wheel button group (S111) of the multifunction steering wheel (MFL).

All the data stored in the memory of ASSYST PLUS can be called up via STAR DIAGNOSIS.
