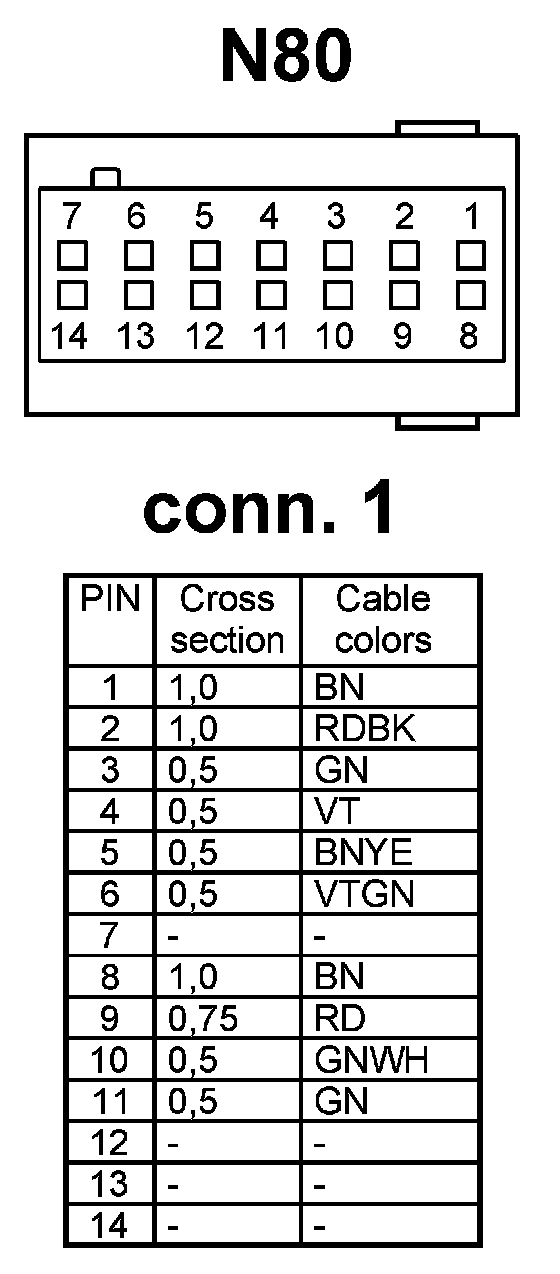

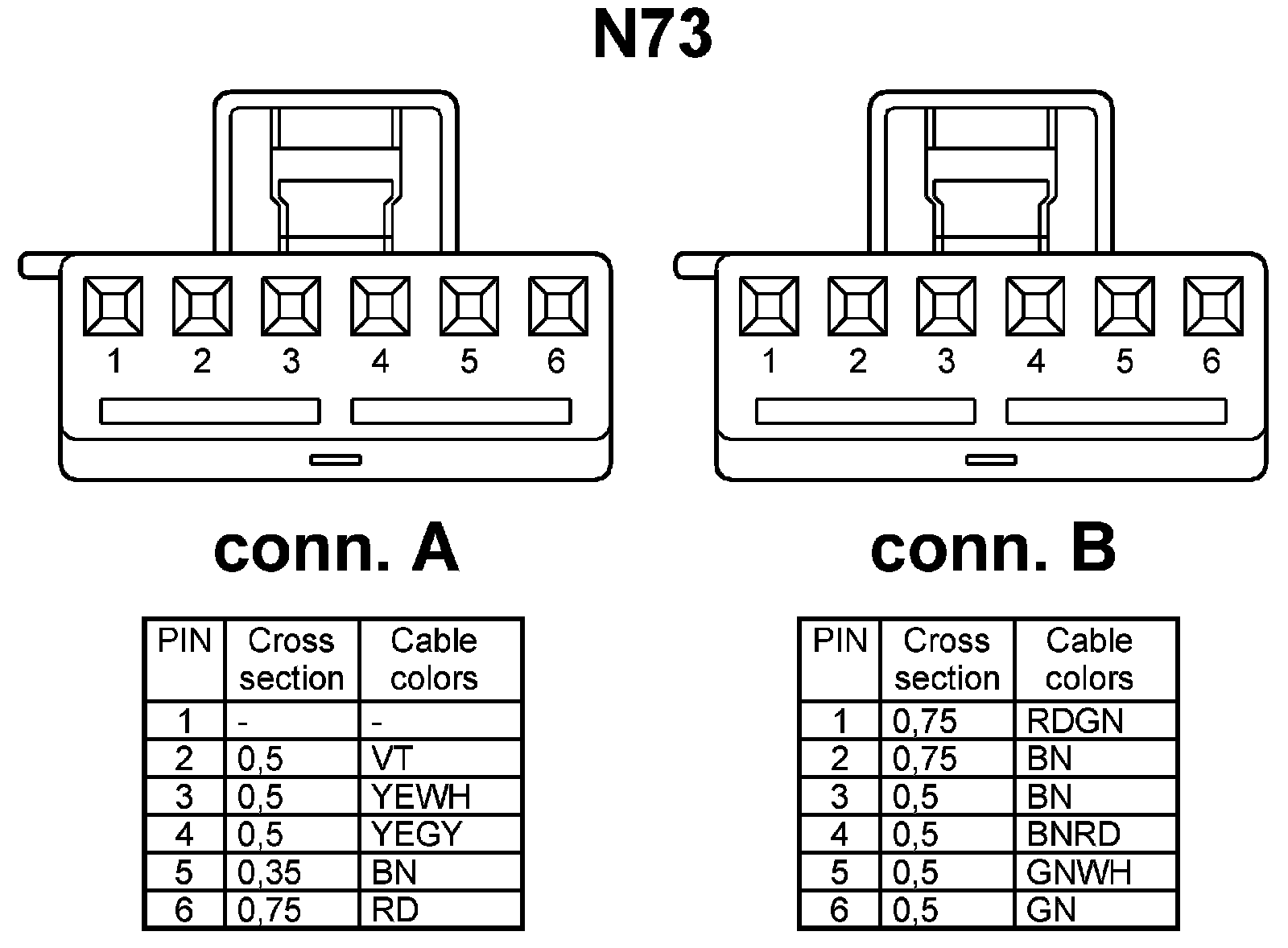

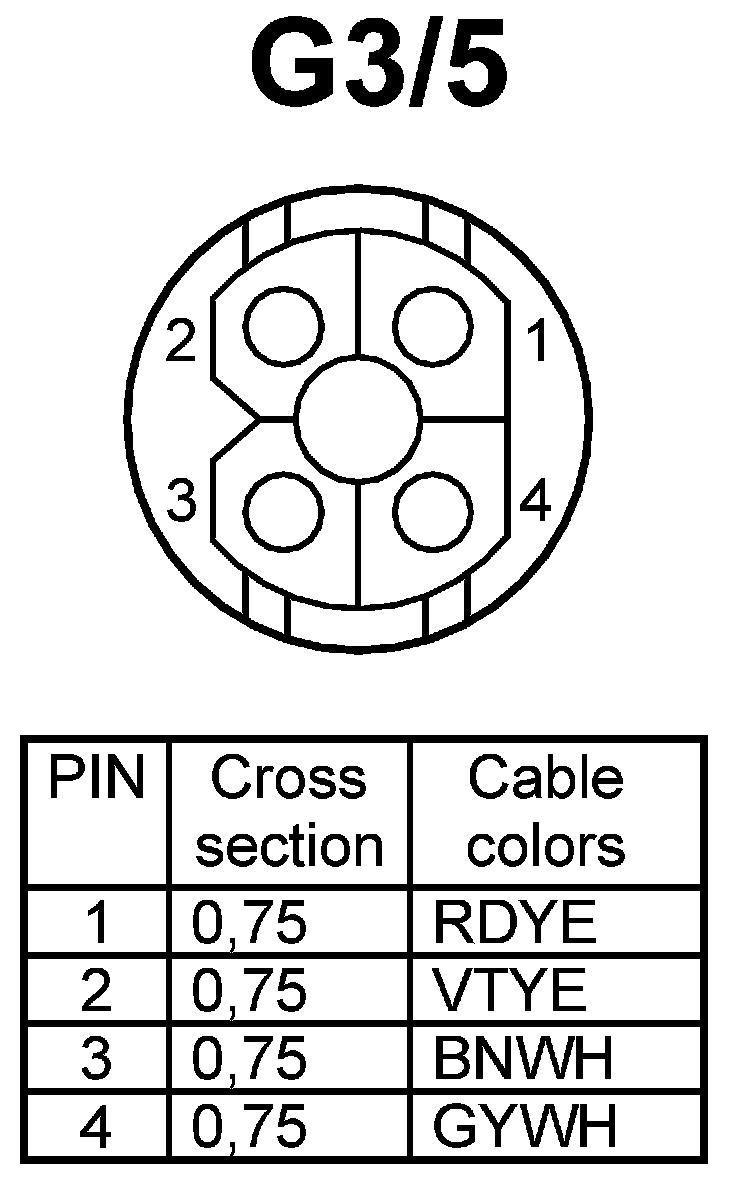

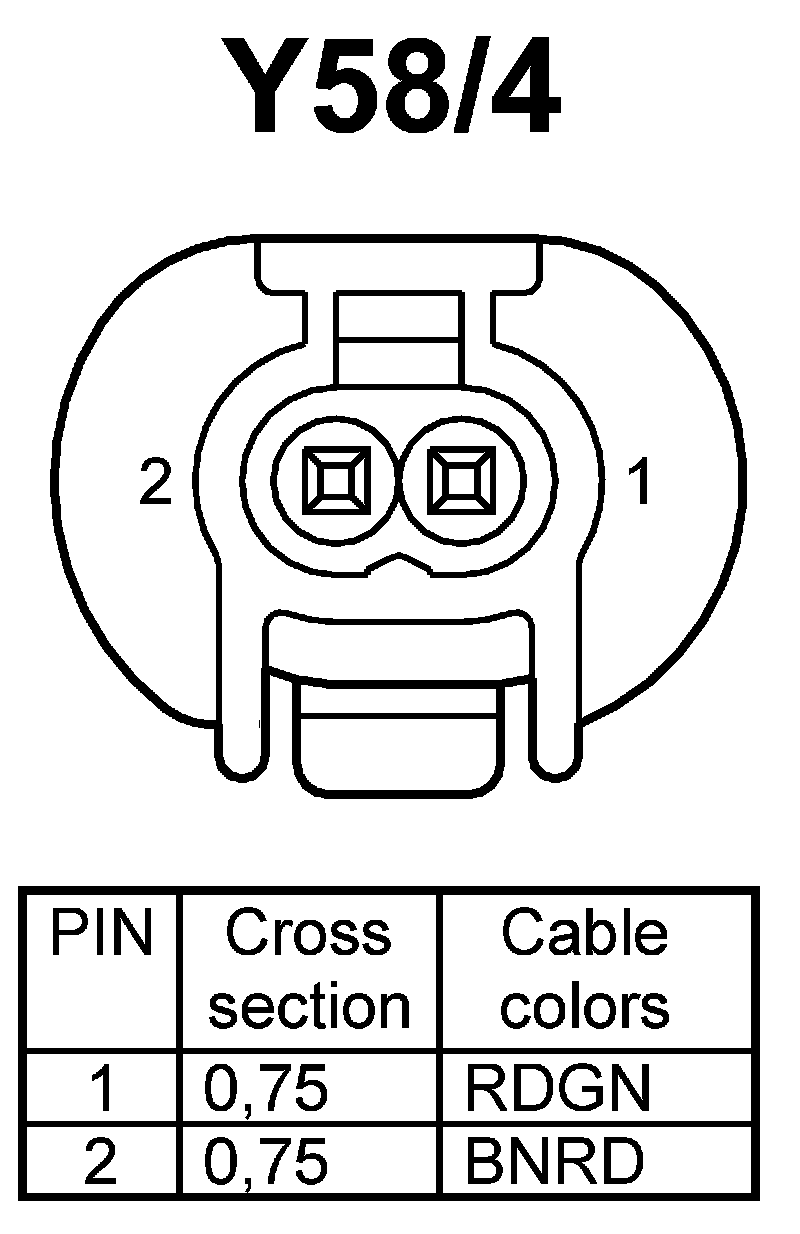

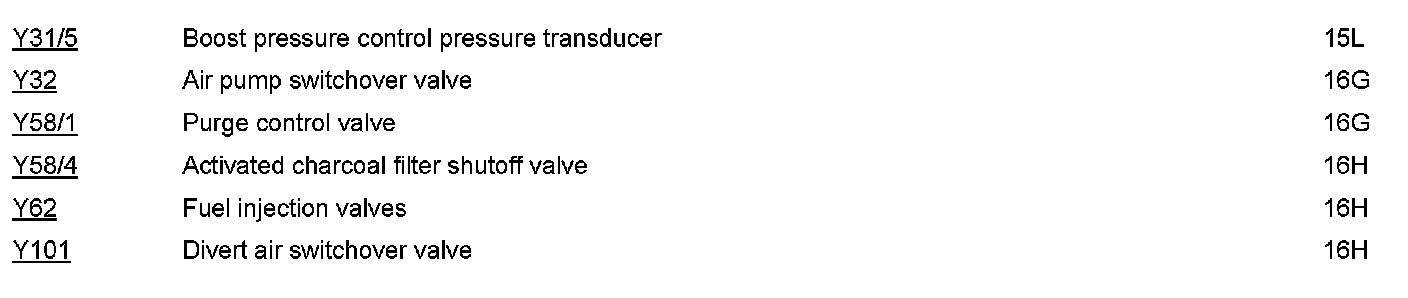

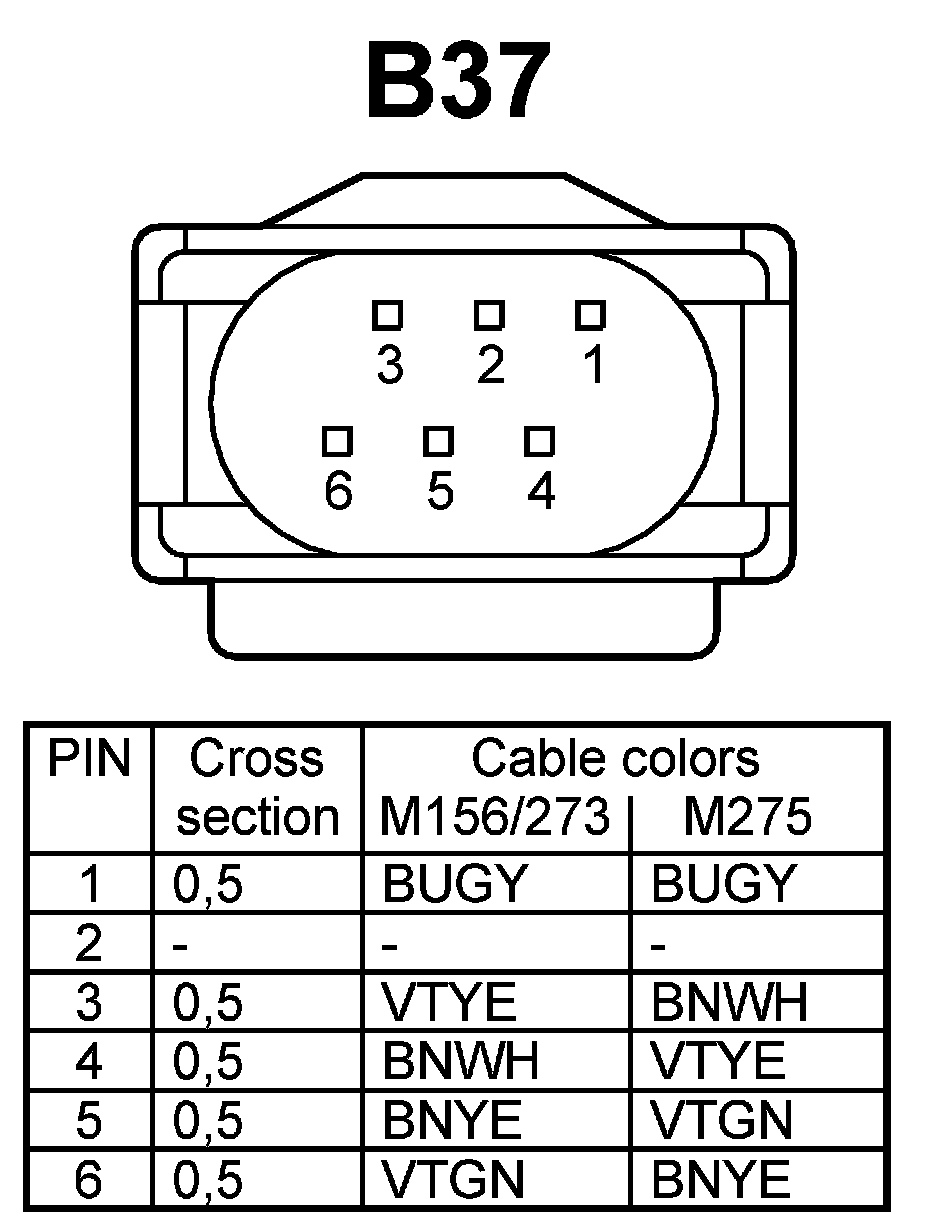

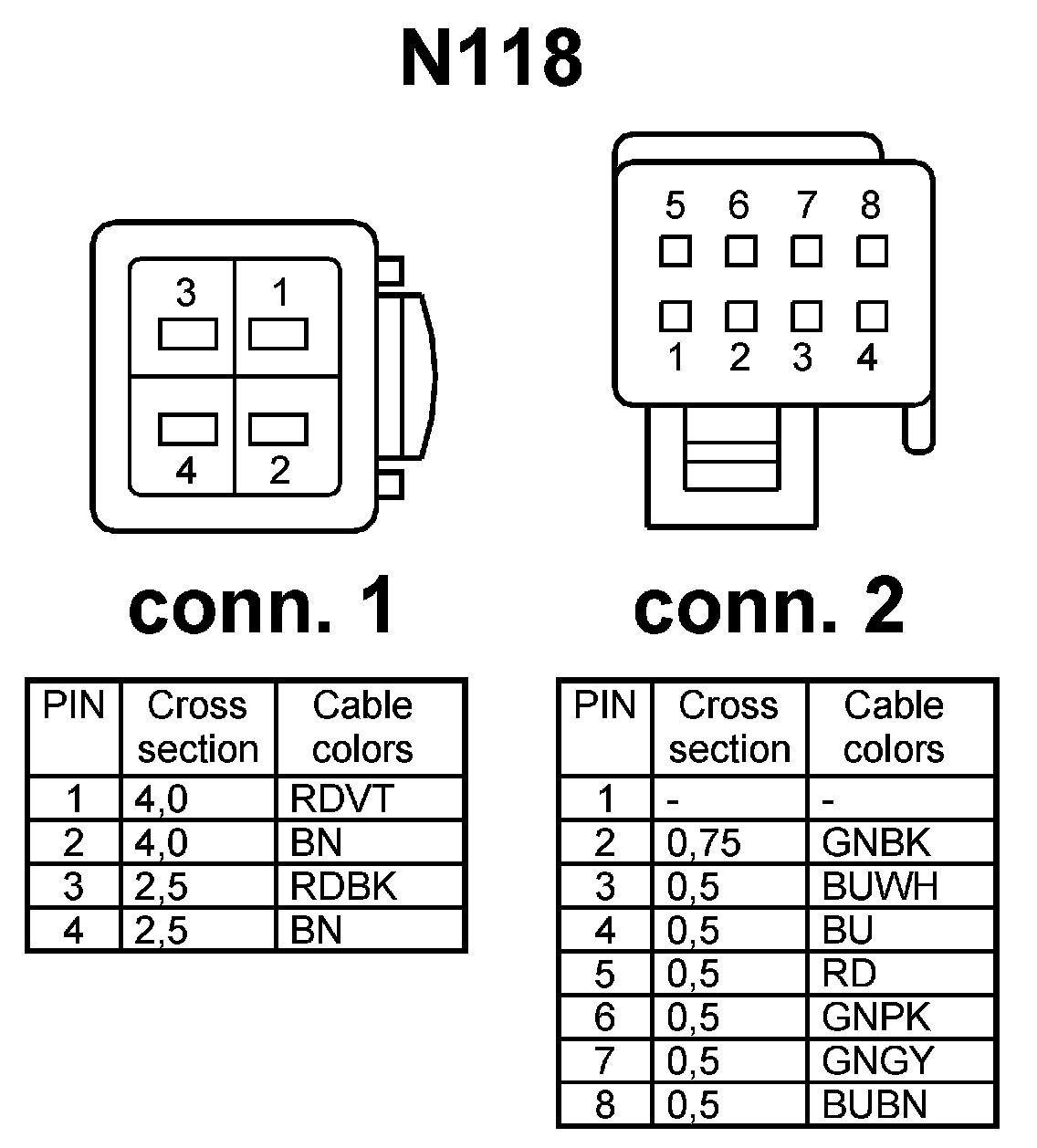

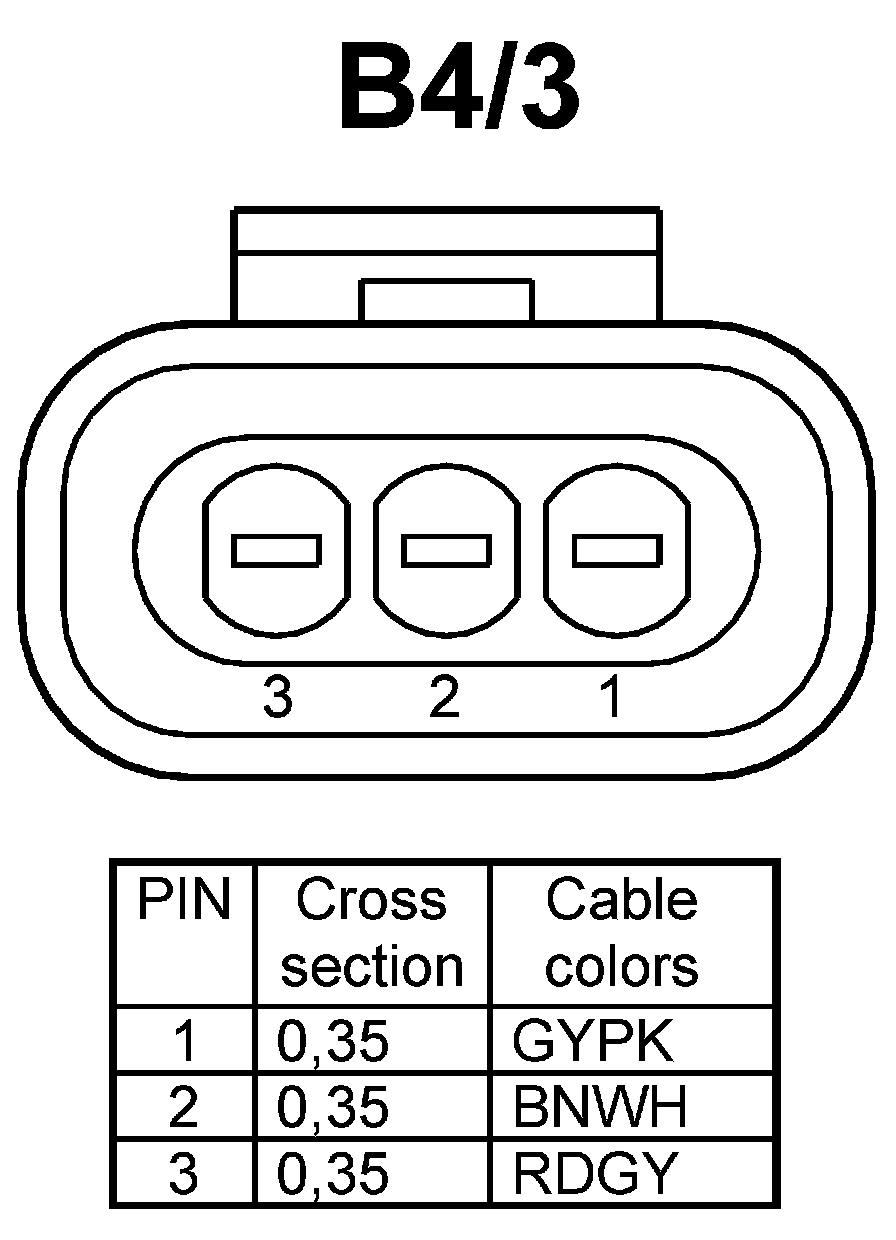

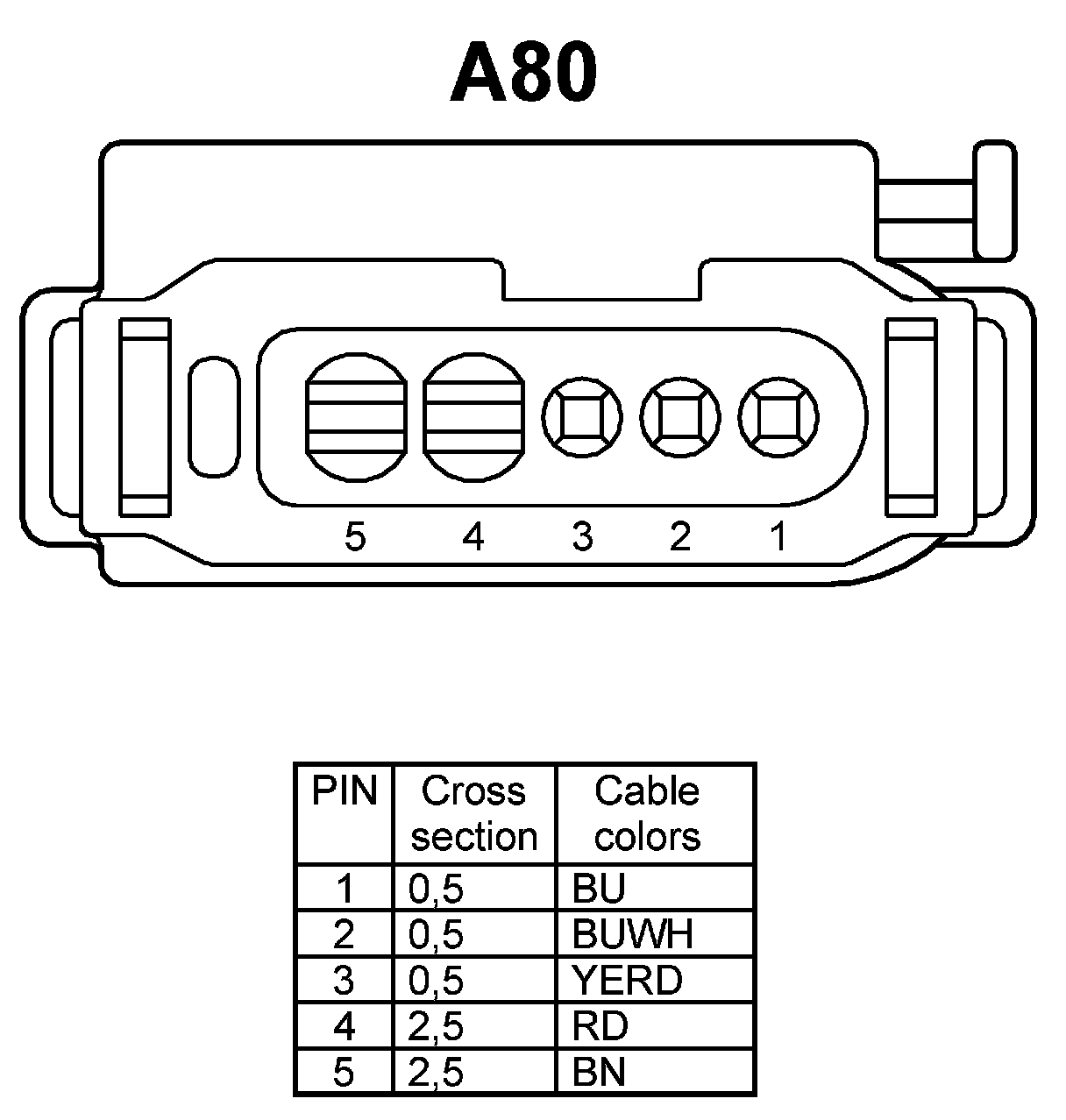

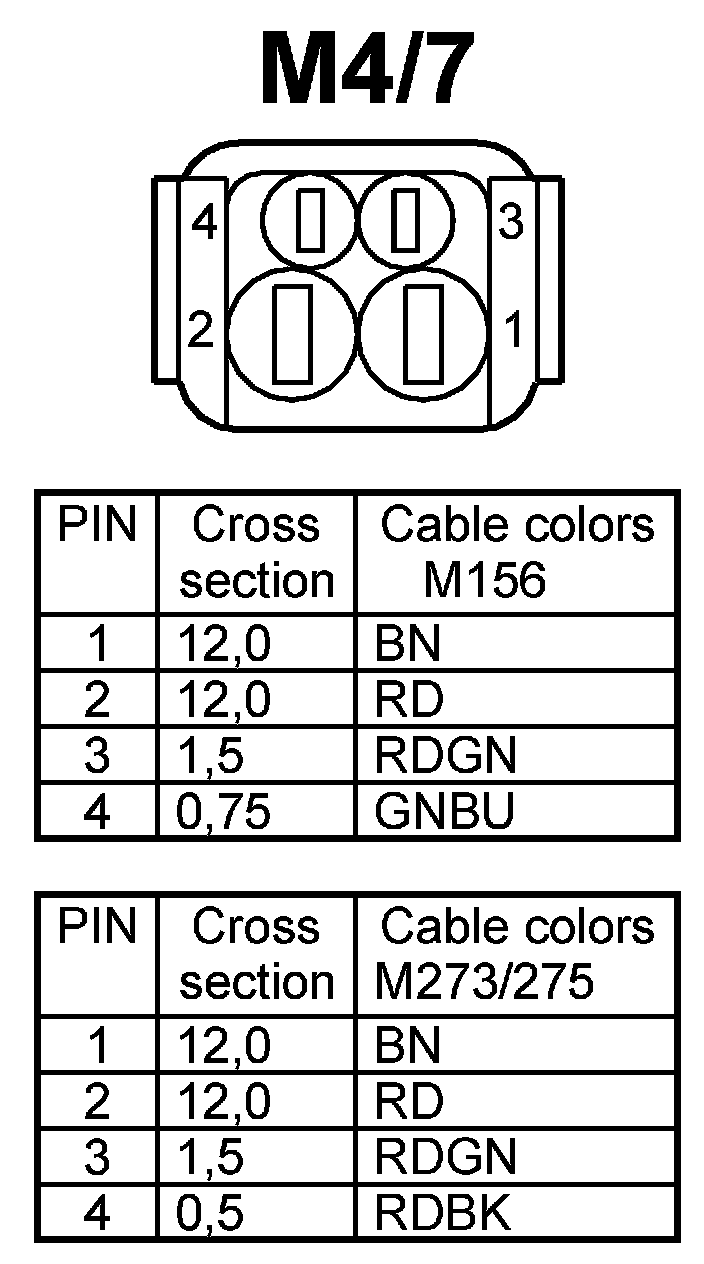

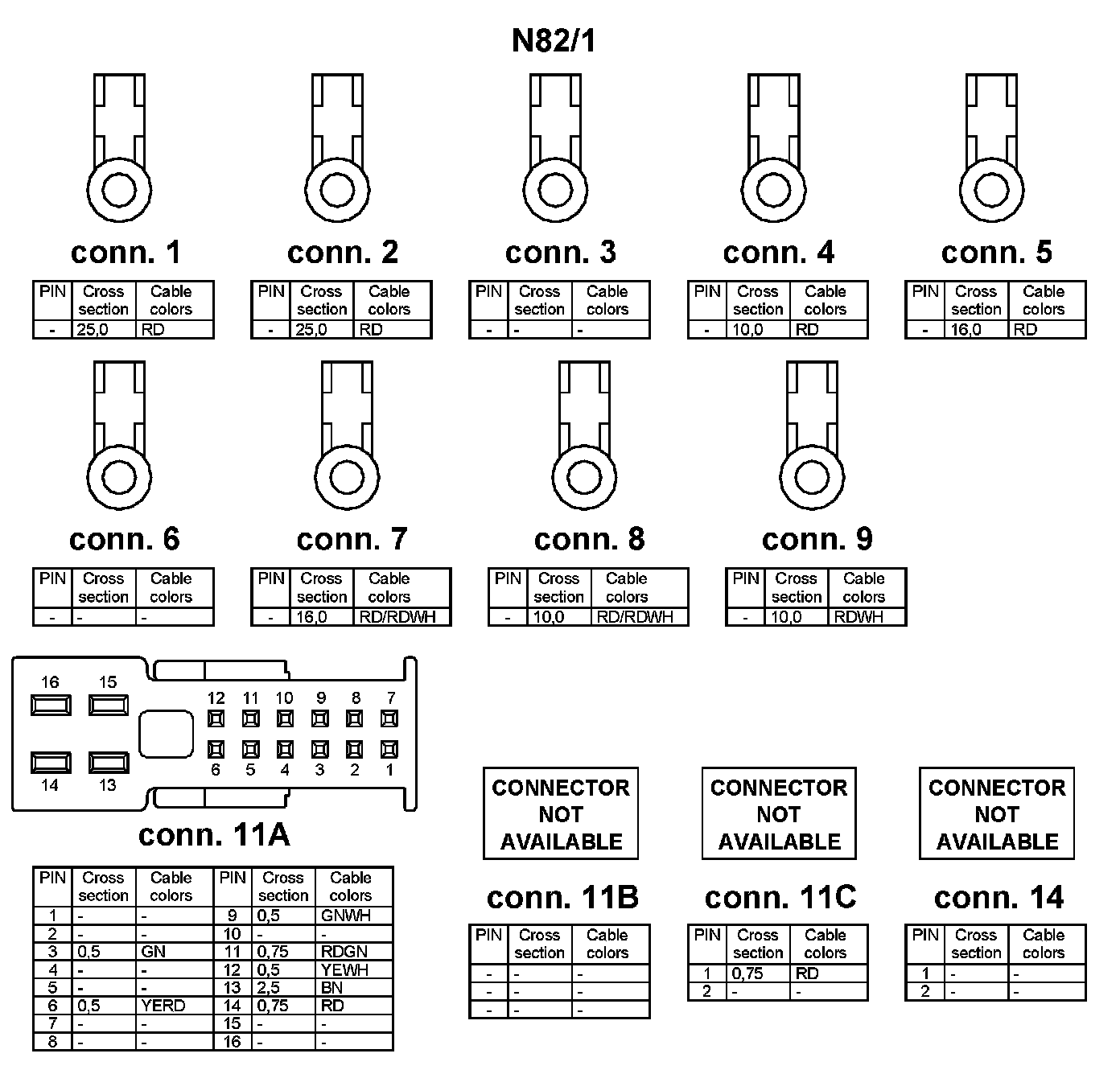

PE07.61-U-2050CAB Function Diagram of Electrical System For Me Engine Control

PE07.61-U-2050CAB Function Diagram of Electrical System For ME Engine Control

ENGINE 275.953 in MODEL 216.376
- up to Model Year 2008 ME 2.7.2
ENGINE 275.982 in MODEL 216.379
- as of 06/01/07
- up to Model Year 2008 ME 2.7.2



































































































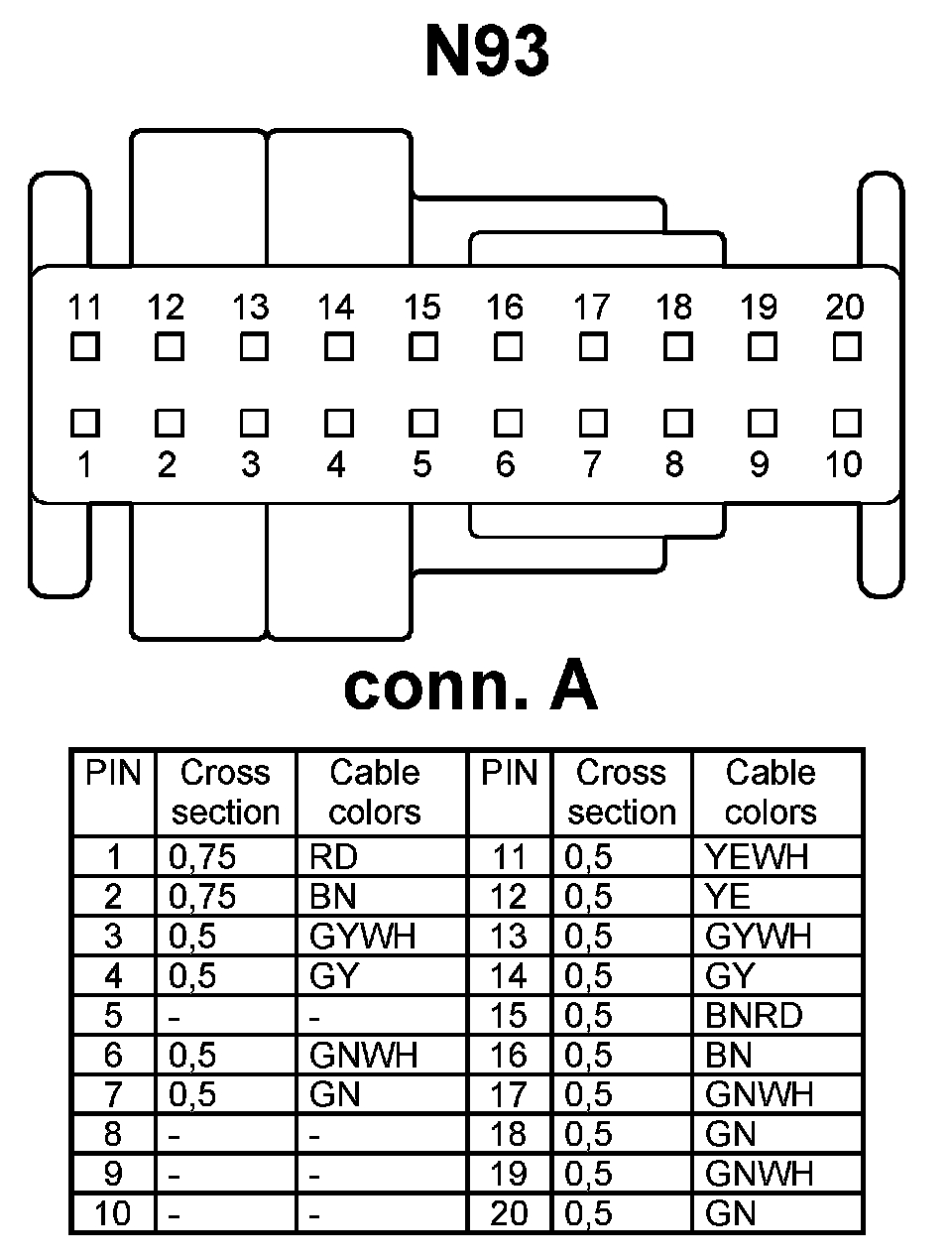

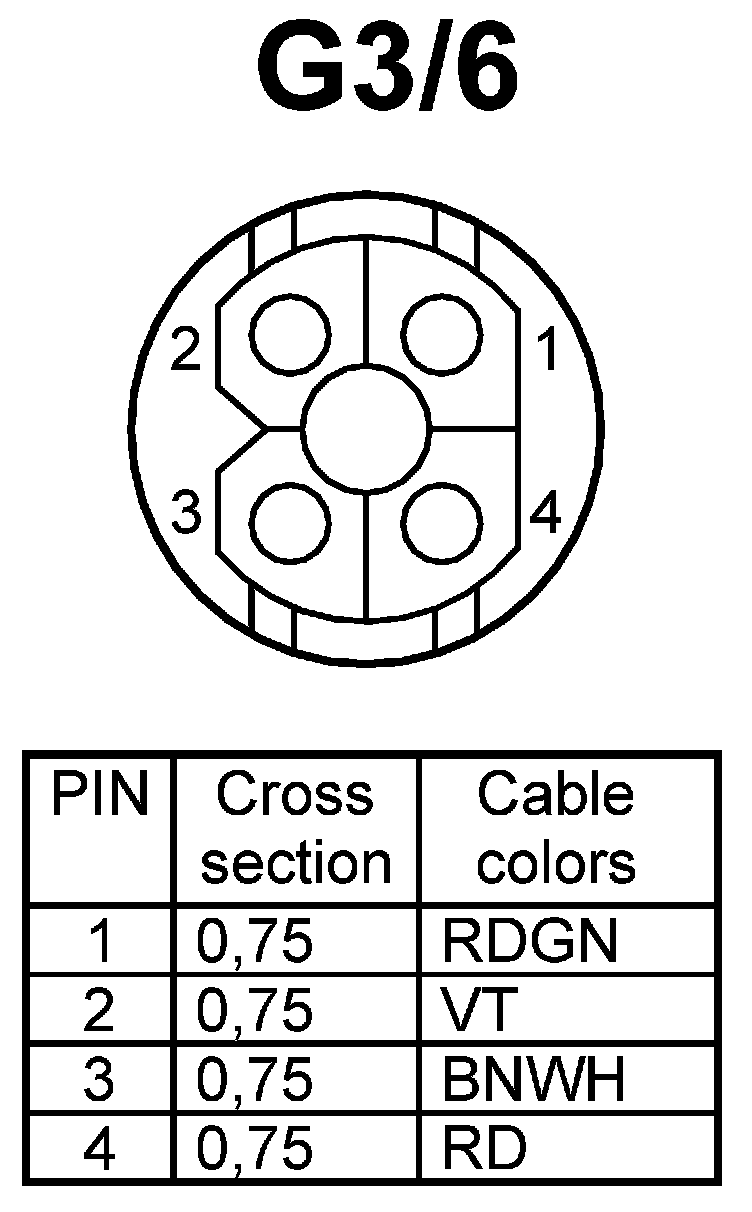

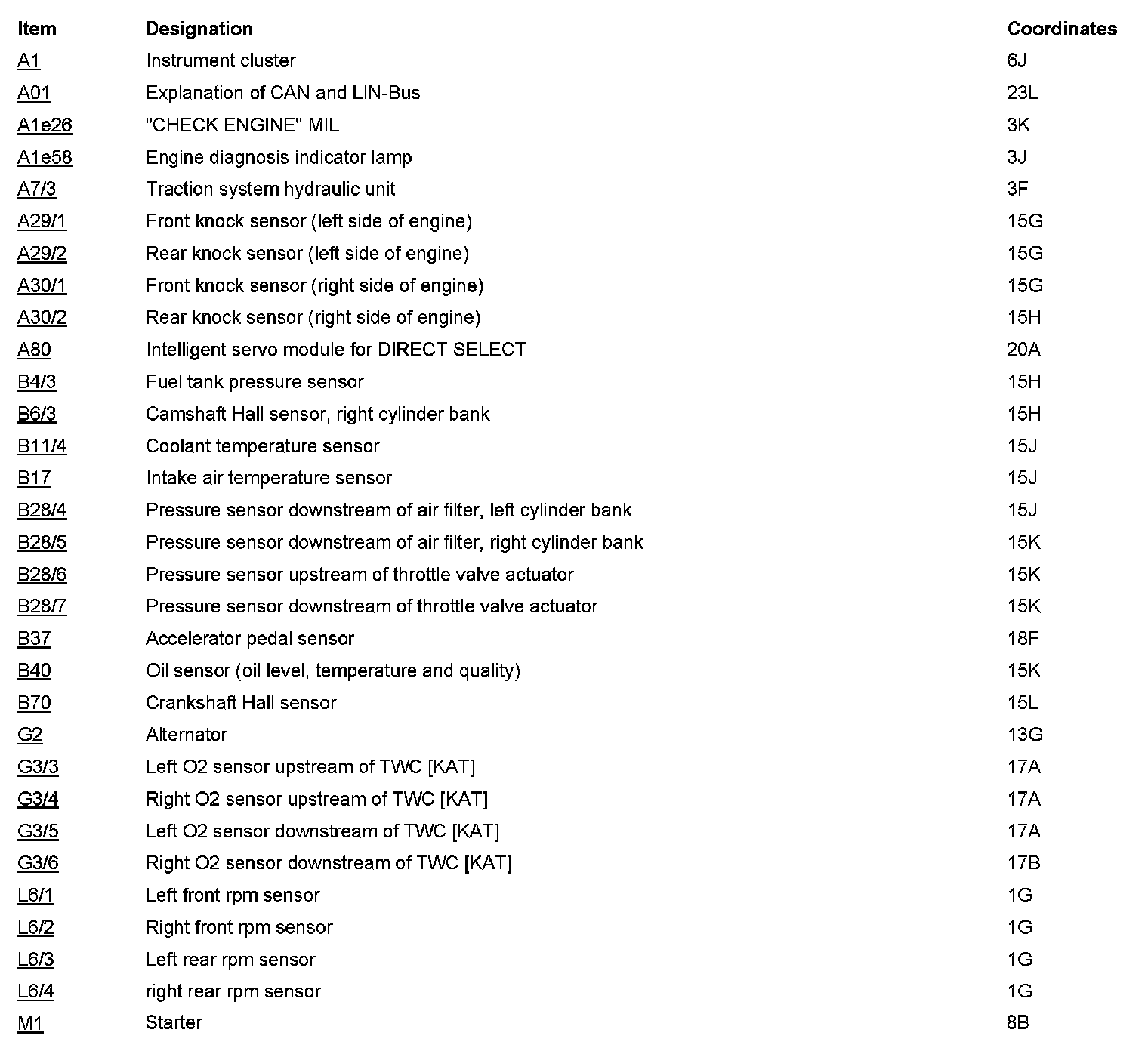

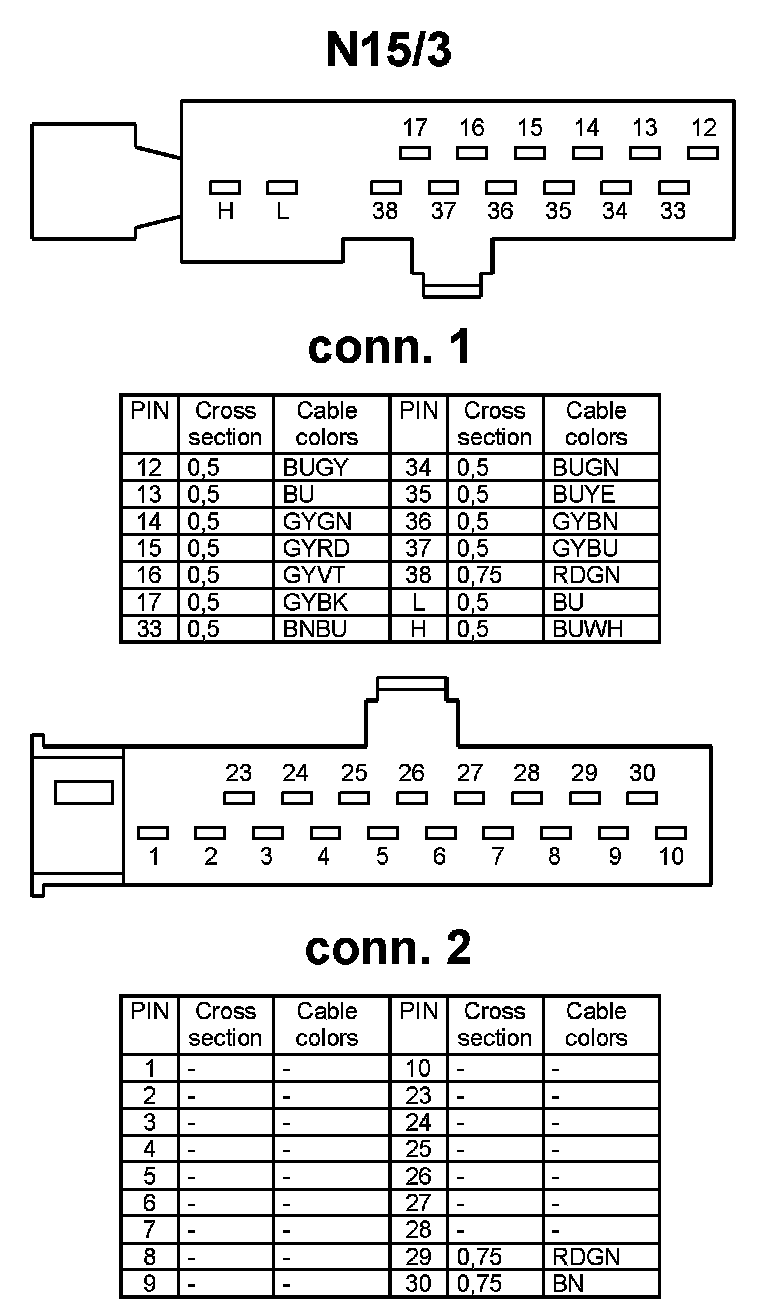

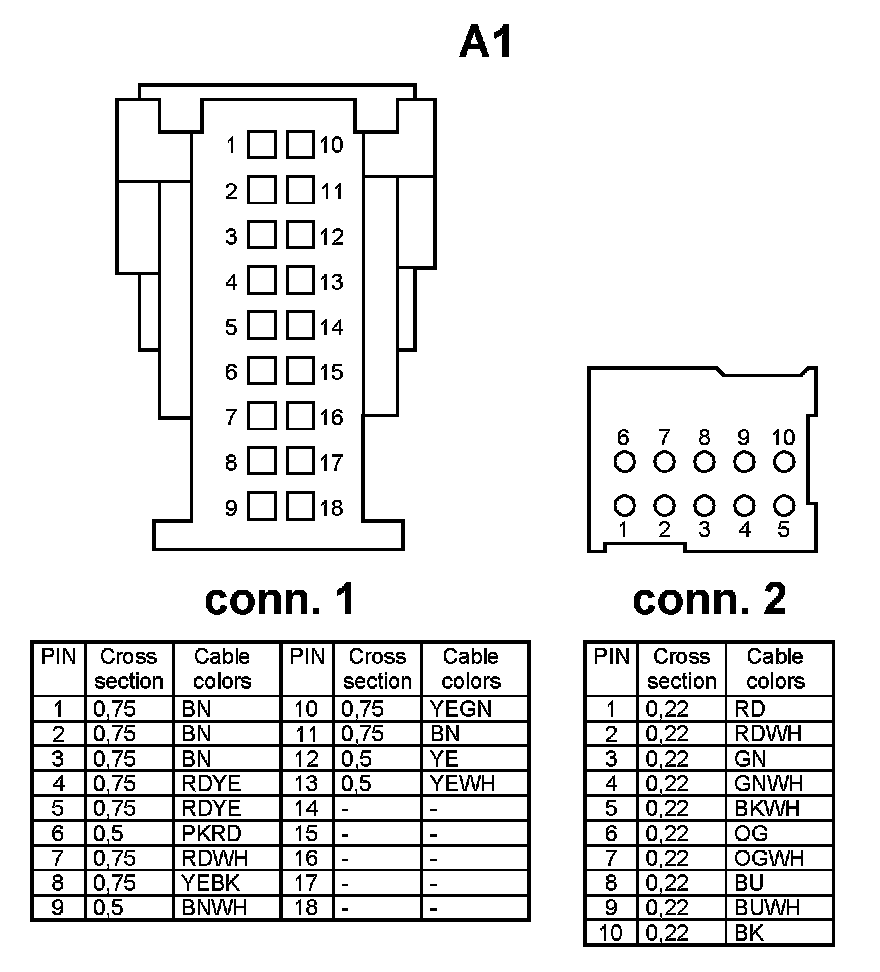

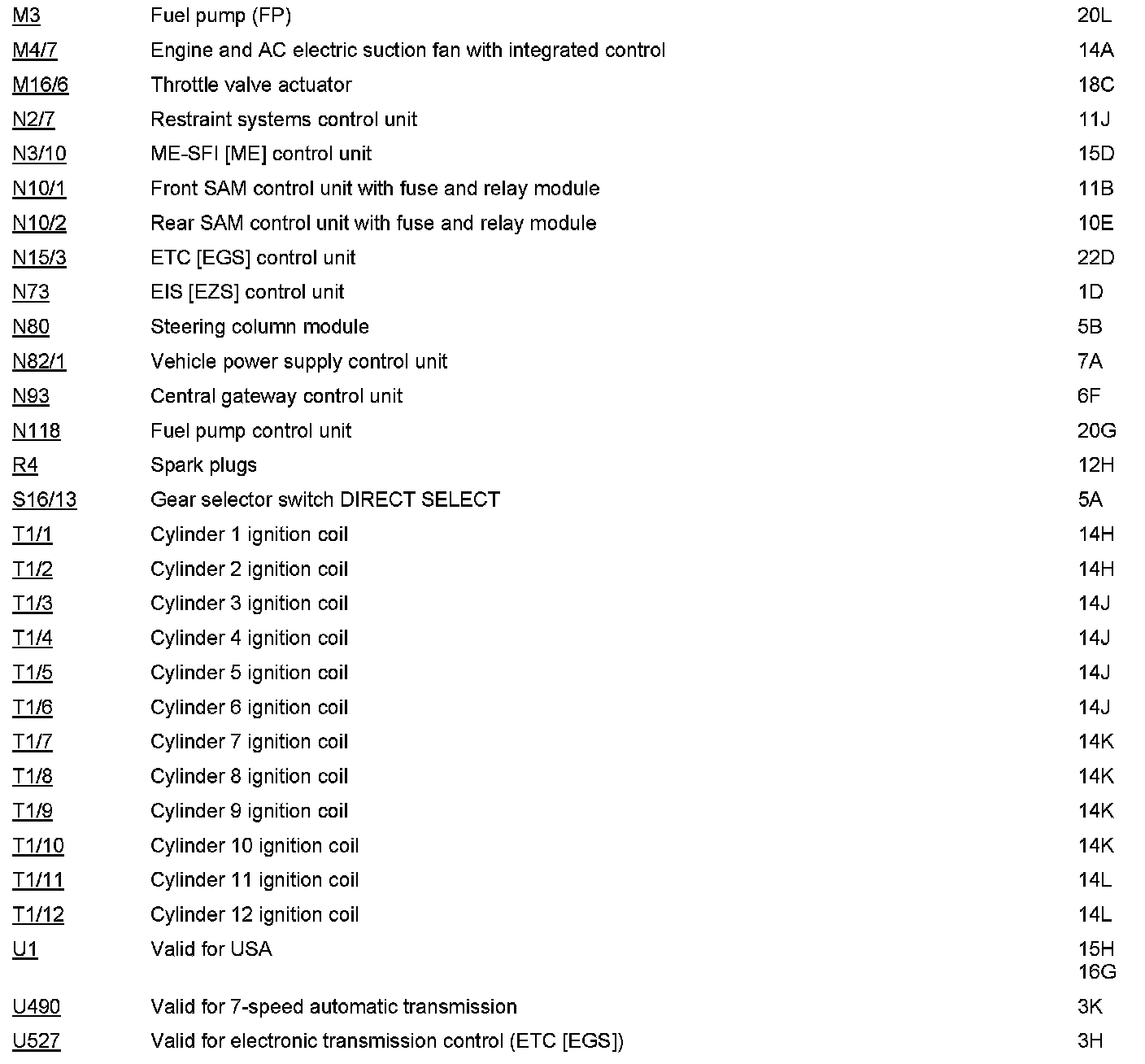

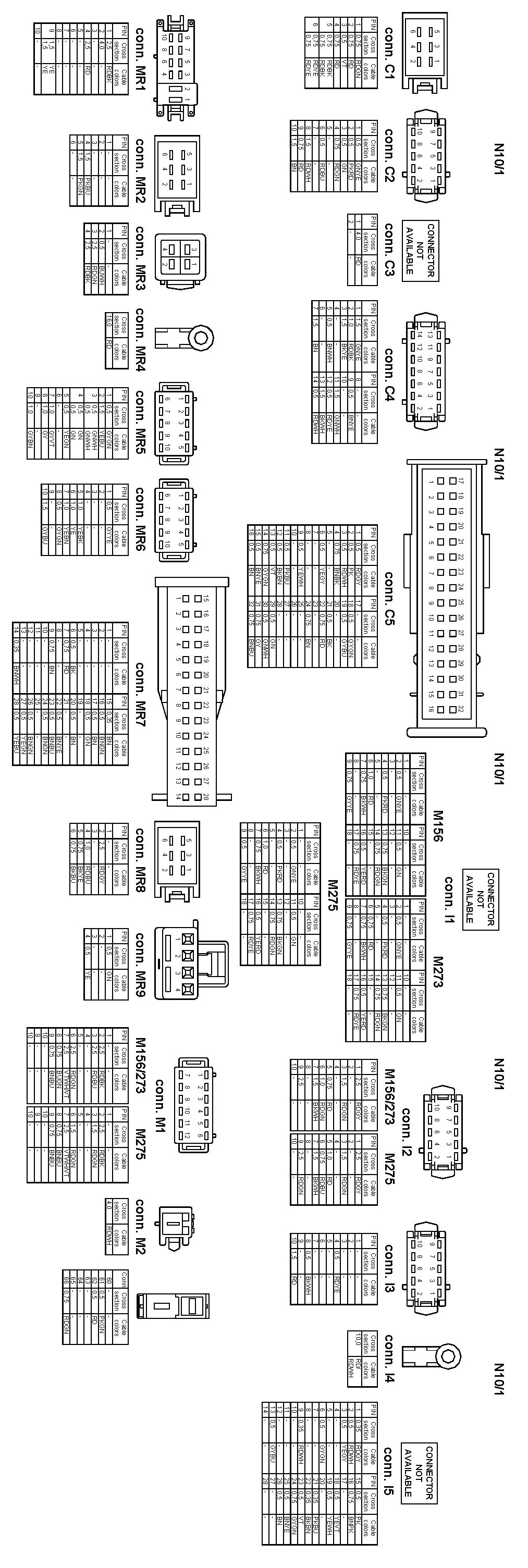

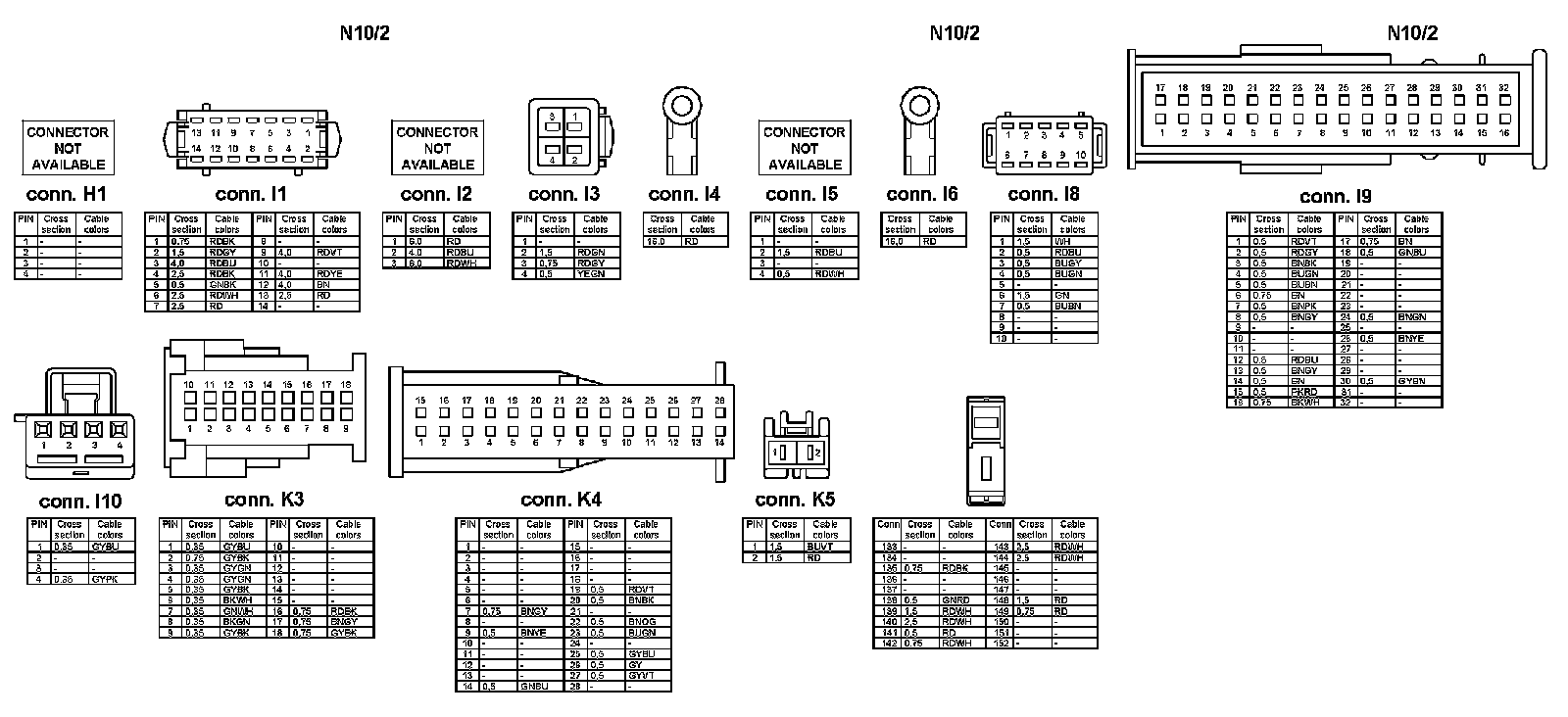

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
