PE82.85-U-2052CAB Electrical Function Diagram For Information and Communications System

Electrical Function Diagram For Information And Communications System PE82.85-U-2052CAB
- Man Machine Interface

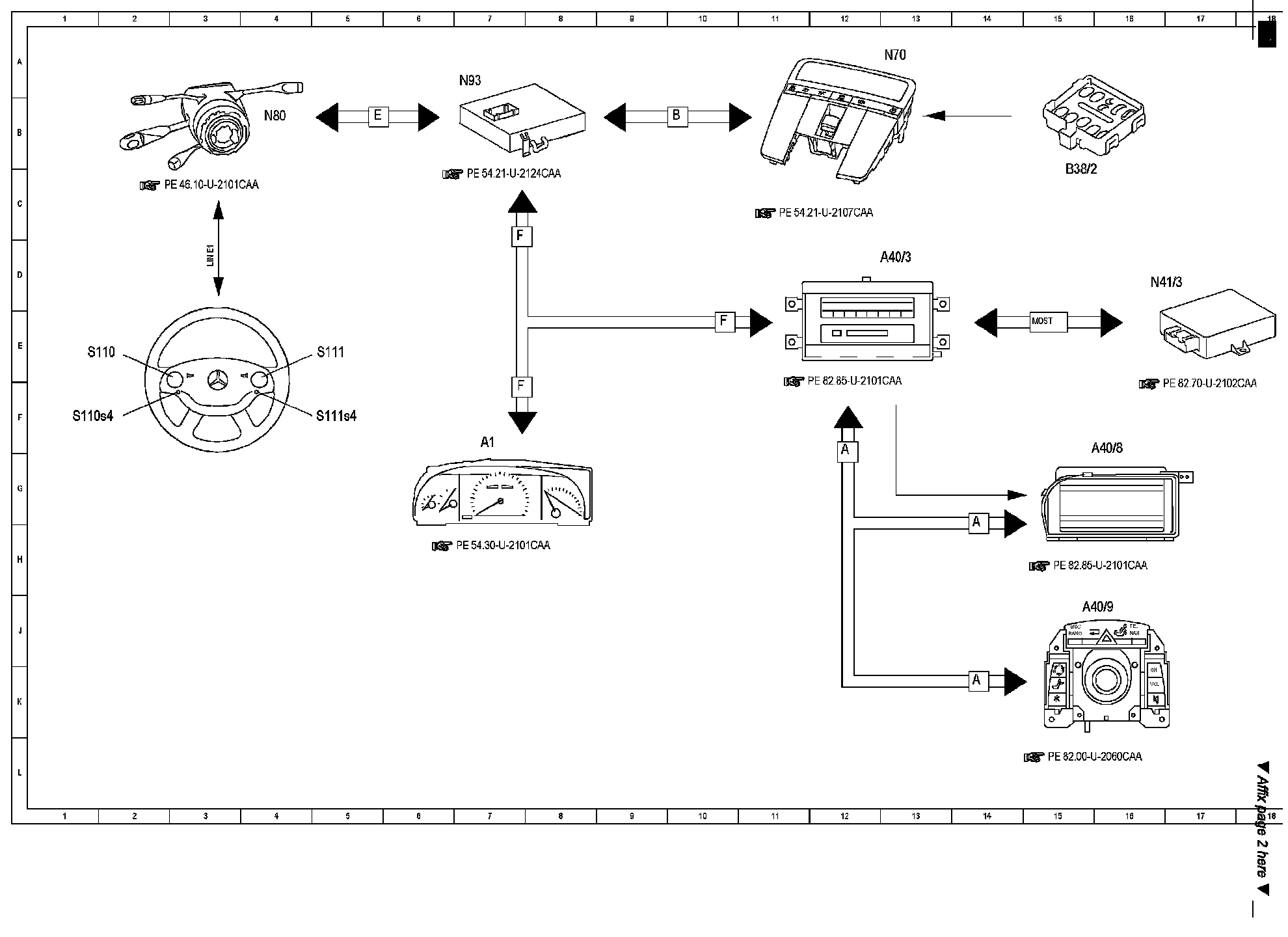

Function Diagram (Part 1):

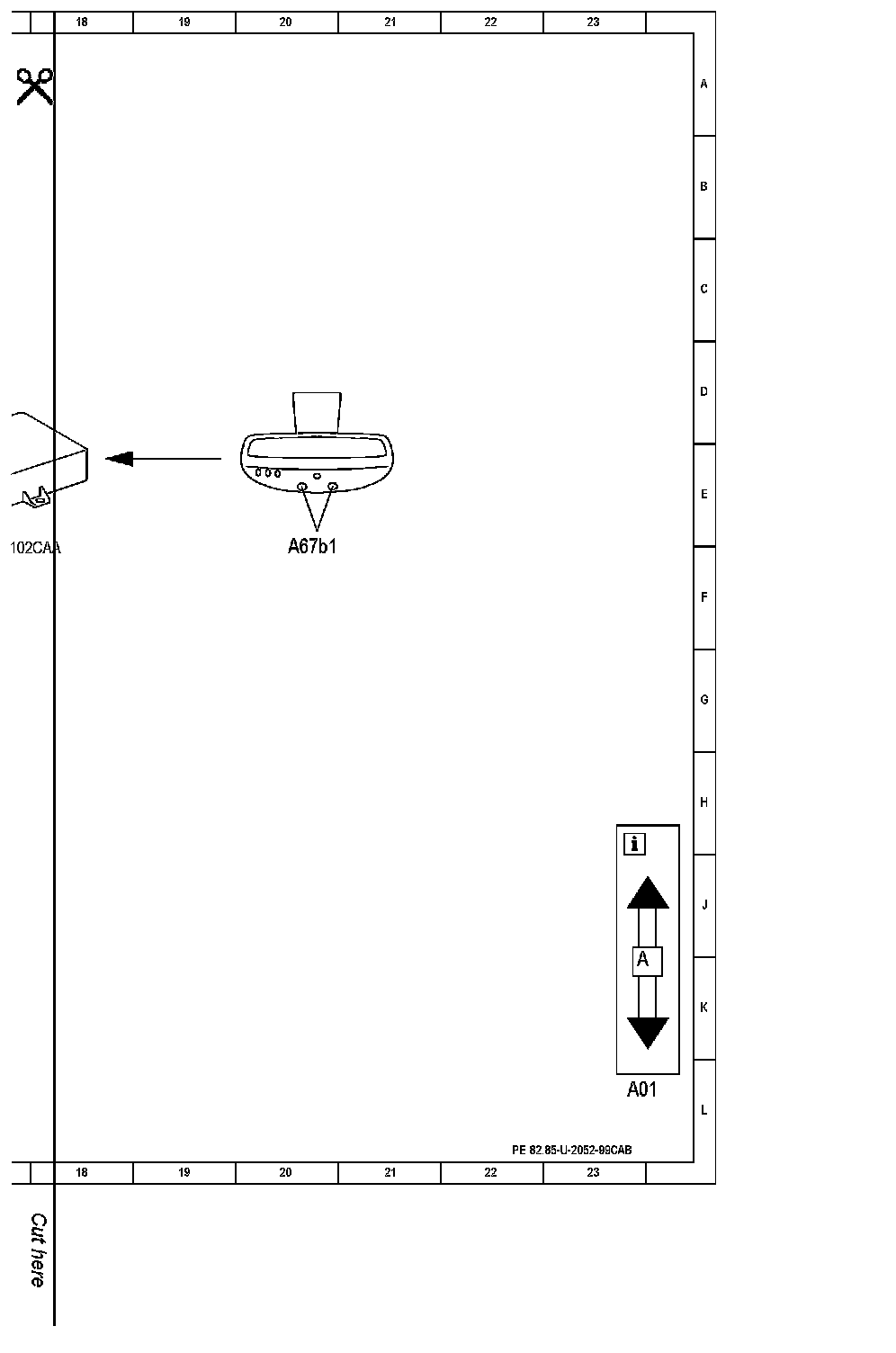

Function Diagram (Part 2):

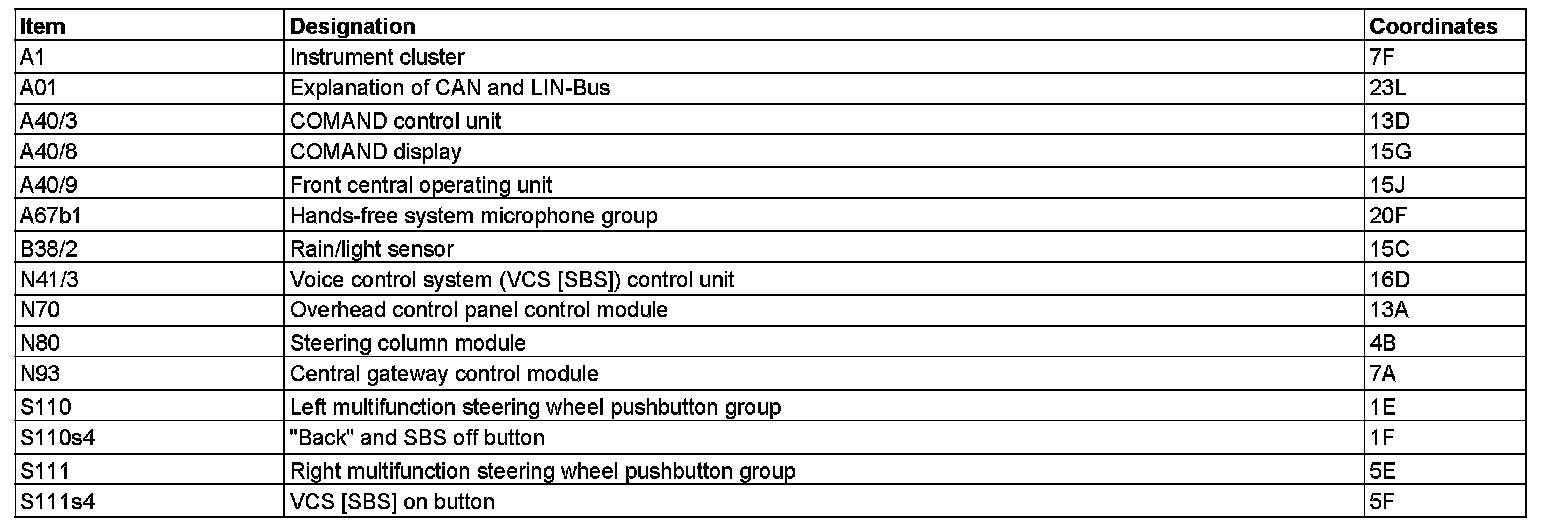

Component Description/Coordinates, A1 To S111s4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
