PE82.85-P-2051CAC Electrical Function Schematic For Navigation System

Electrical Function Schematic For Navigation System PE82.85-P-2051CAC
- with CODE (498) Japan version
- up to model year 08

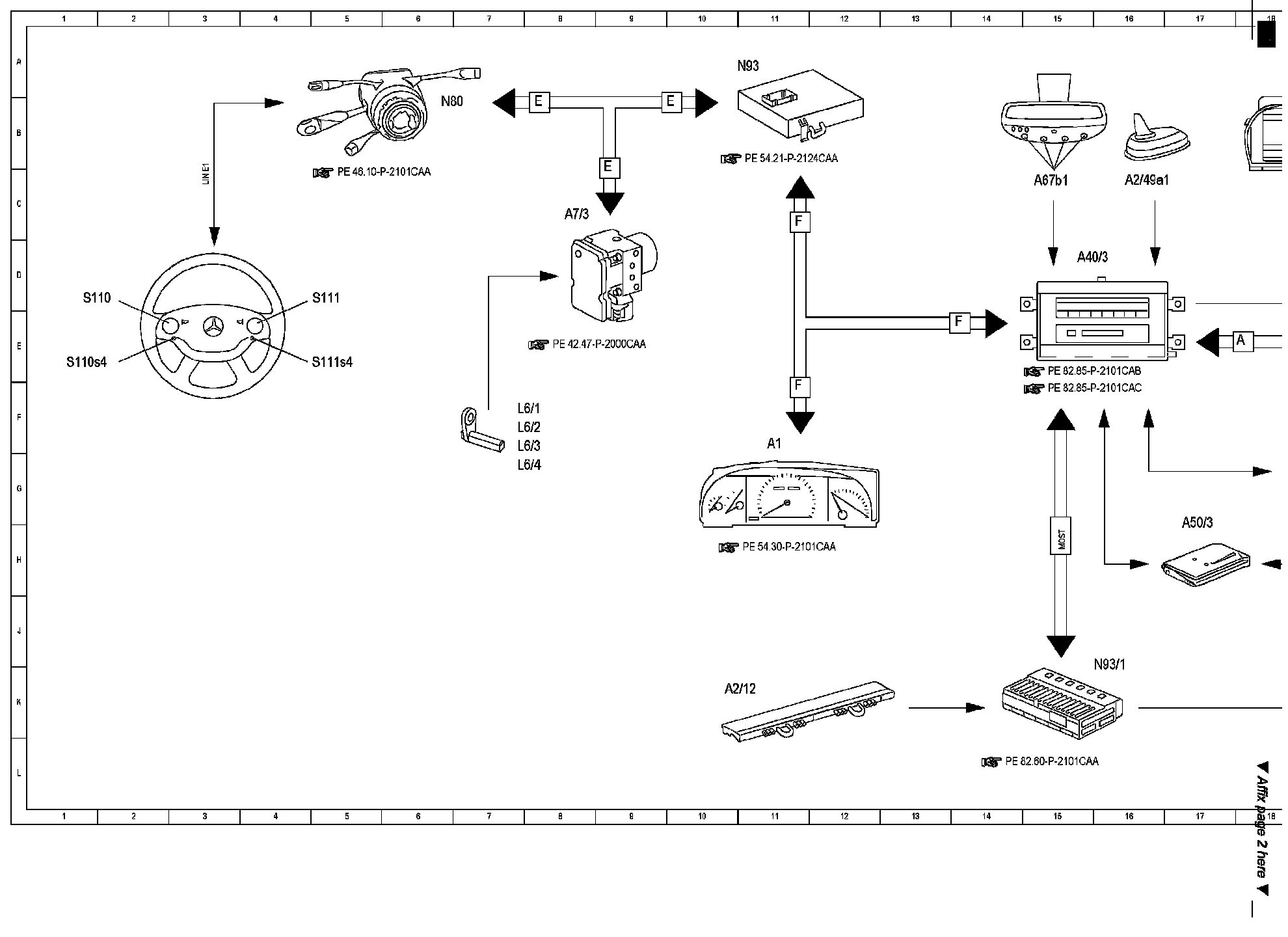

Function Diagram (Part 1):

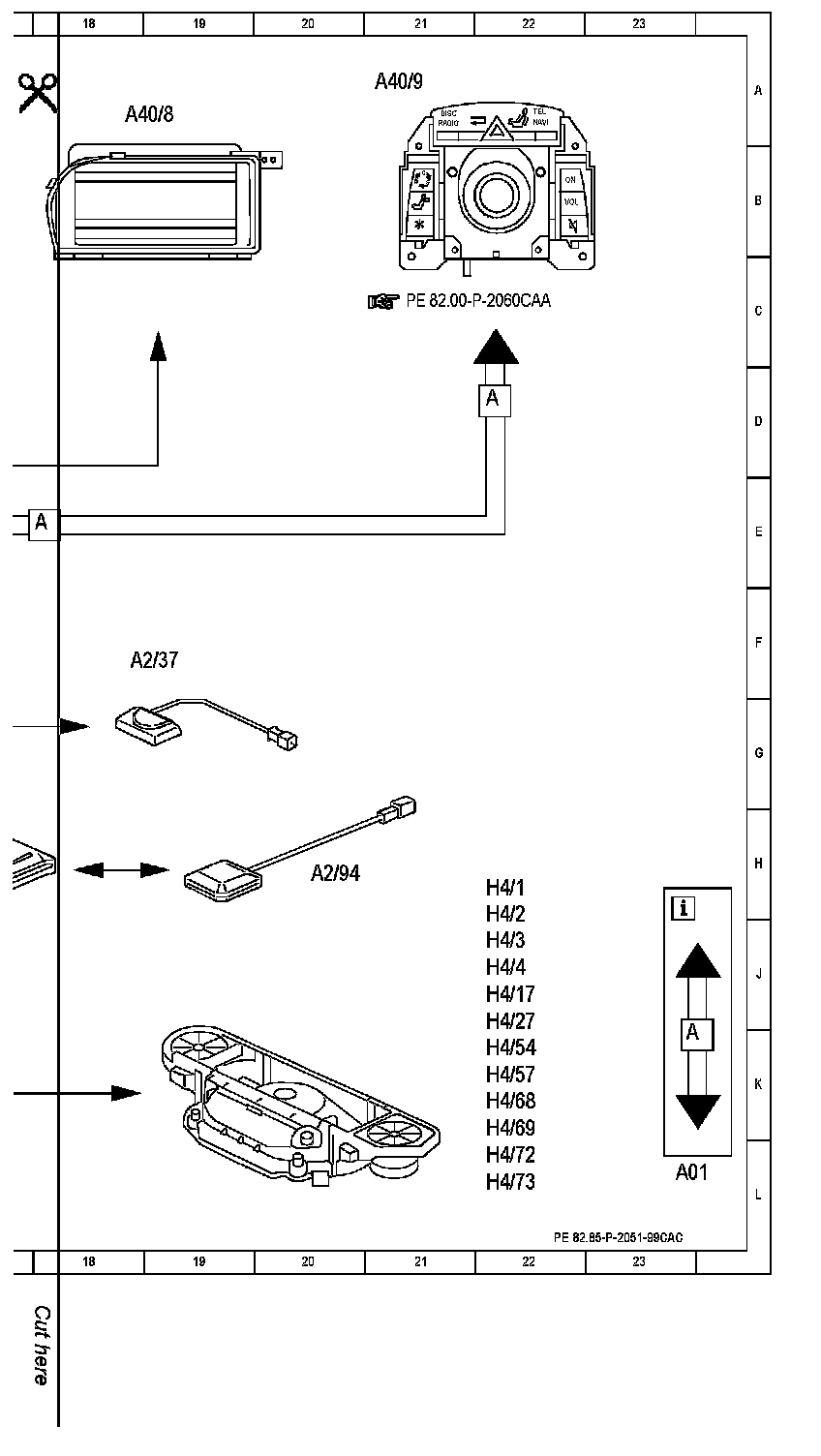

Function Diagram (Part 2):

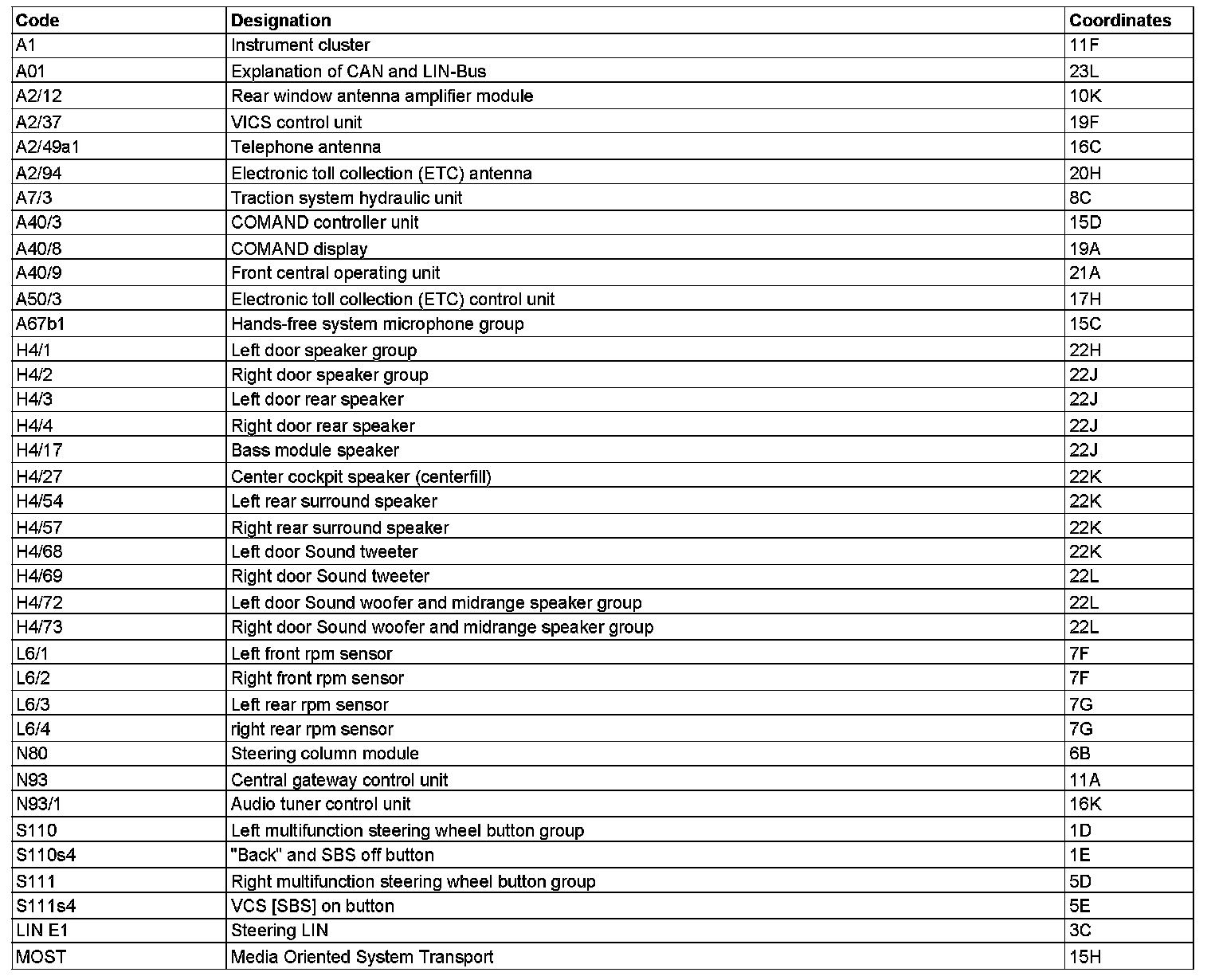

Component Description/Coordinates, A1 To MOST:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
