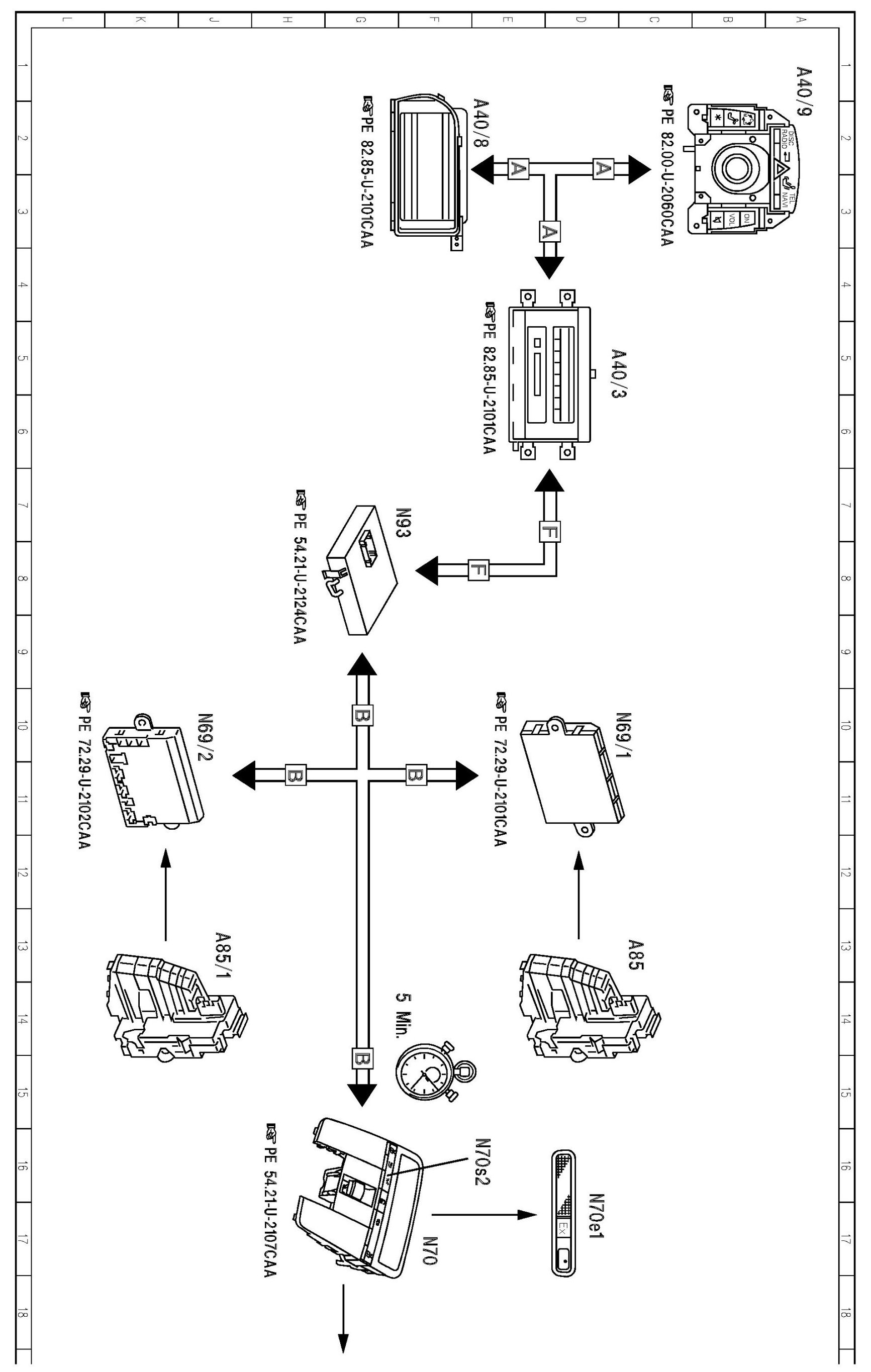

PE82.20-U-2050CAA Electrical System Function Diagram For Interior Lights

PE82.20-U-2050CAA Electrical System Function Diagram For Interior Lights

MODEL 216
- up to Model Year 2008
- interior light

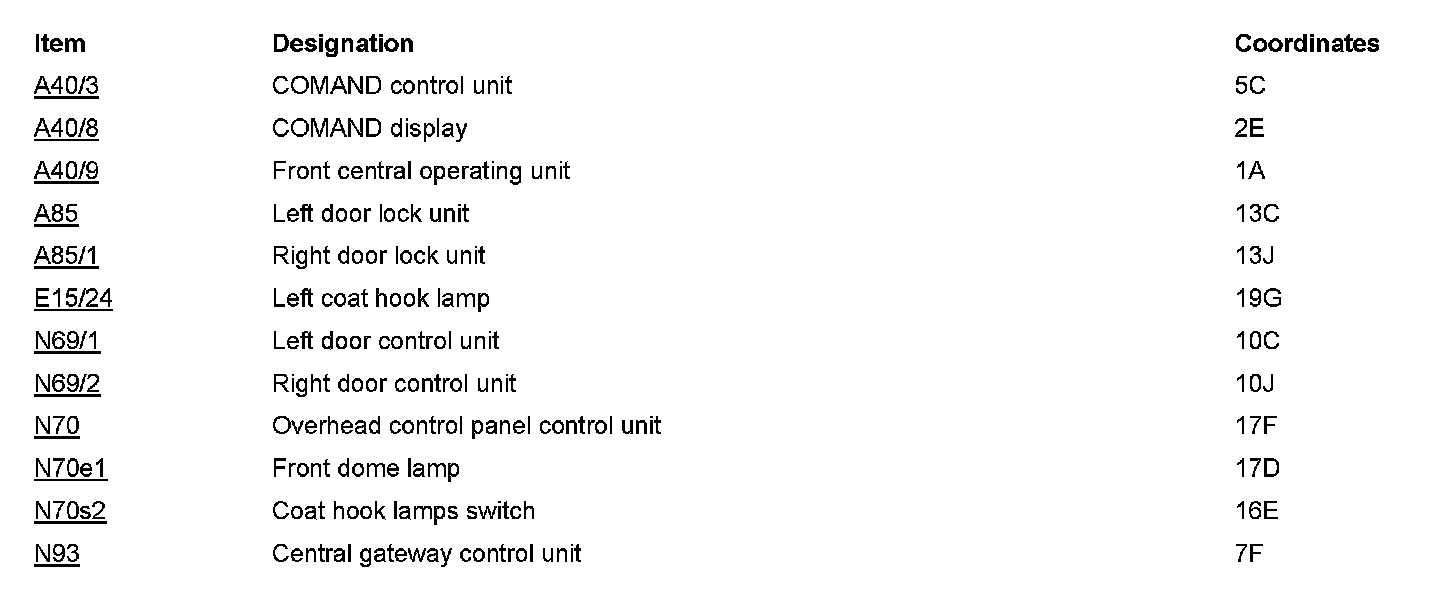

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
