PE82.10-U-2051CAF Electrical System Function Diagram For Exterior Lights

PE82.10-U-2051CAF Electrical System Function Diagram For Exterior Lights

MODEL 216
- up to Model Year 2008
- Cornering illumination when driving forwards

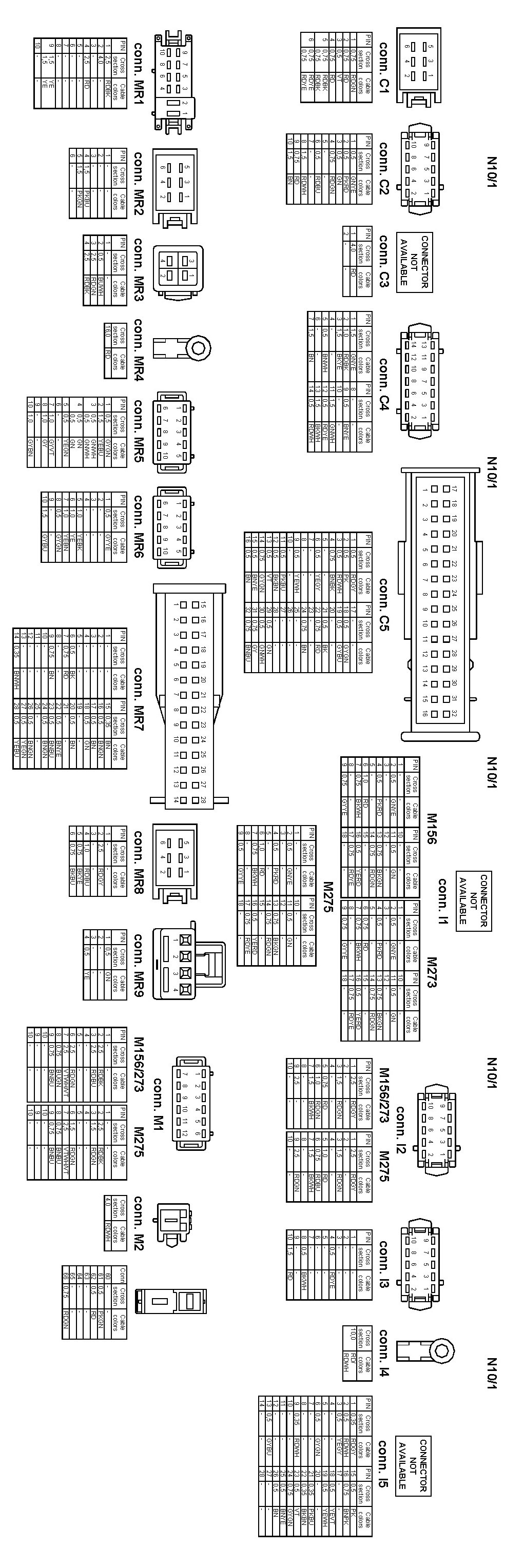

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
