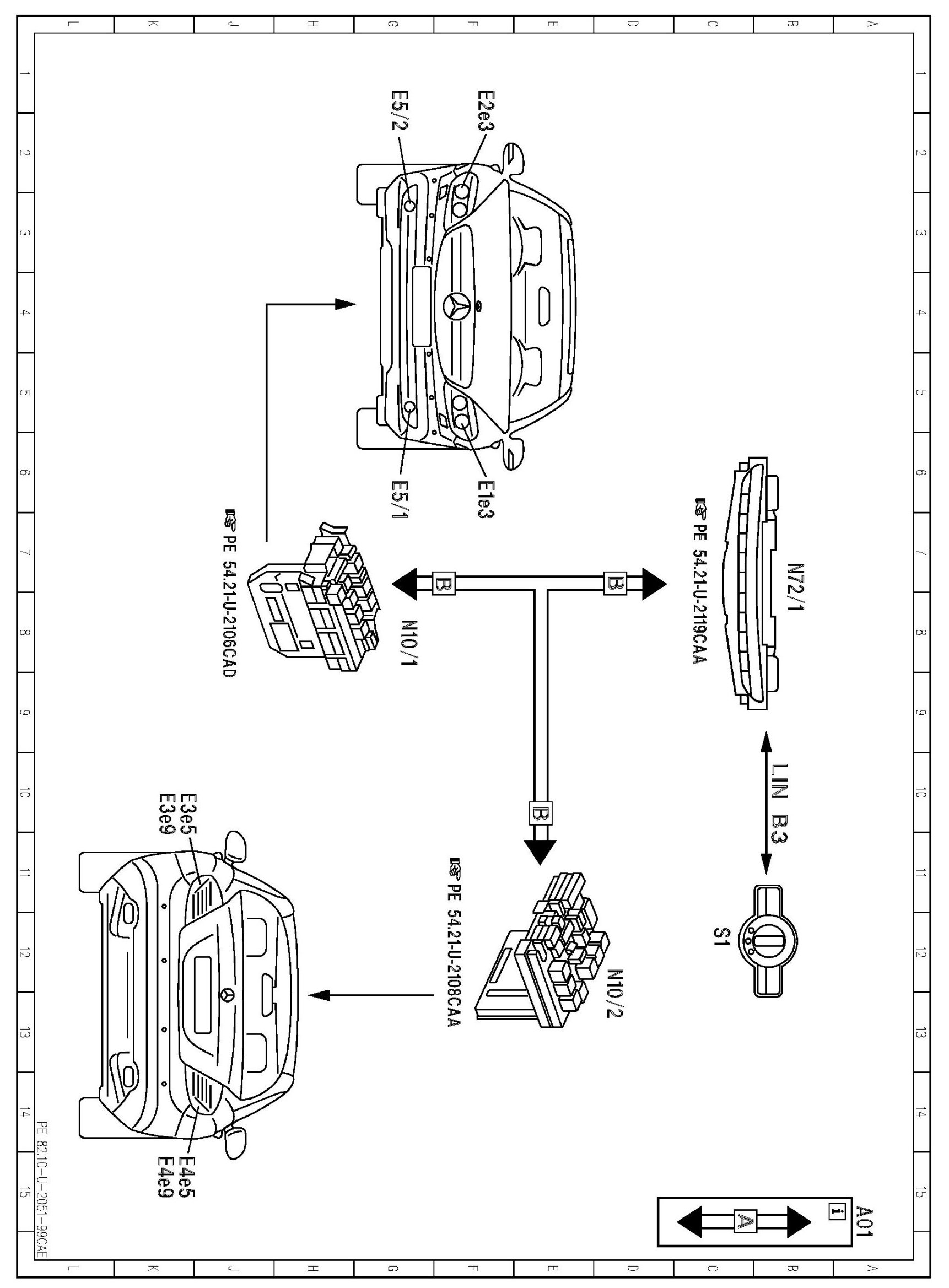

PE82.10-U-2051CAE Electrical System Function Diagram For Exterior Lights

PE82.10-U-2051CAE Electrical System Function Diagram For Exterior Lights

MODEL 216
- up to Model Year 2008
- Front fog lamp, rear fog lamp



































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
