PE83.70-P-2050CAA Function Schematic For Stationary Heater (STH) Electrical System

Function Schematic For Stationary Heater (STH) Electrical System PE83.70-P-2050CAA
- with CODE (228)
- Stationary heater
- up to model year 08
- switch on/off using buttons

Function Diagram:

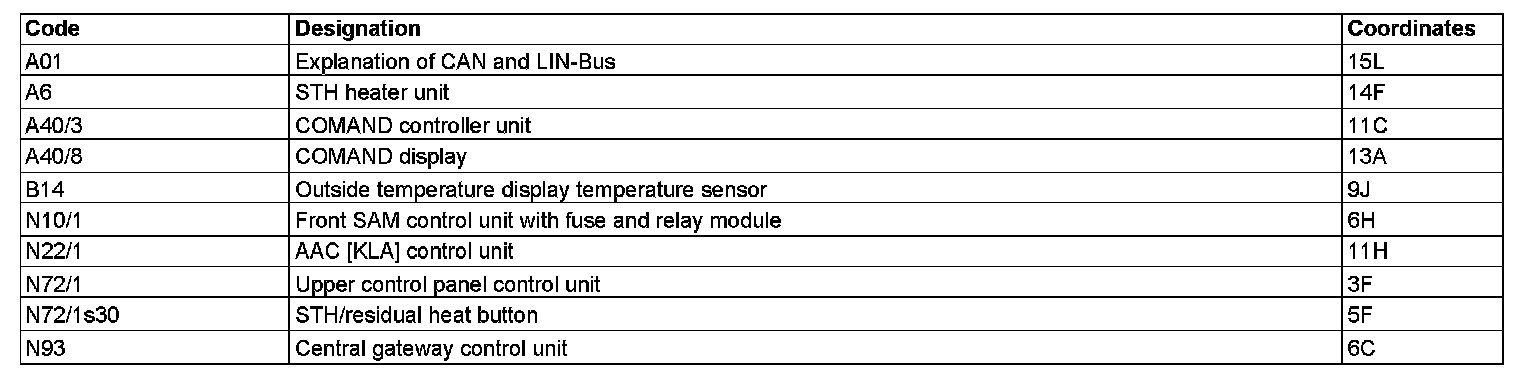

Component Description/Coordinates, A01 To N93:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
