PE72.29-P-2050CAA Electrical Function Schematic For Power Windows

Electrical Function Schematic For Power Windows PE72.29-P-2050CAA
- Manual and automatic function
- up to model year 08

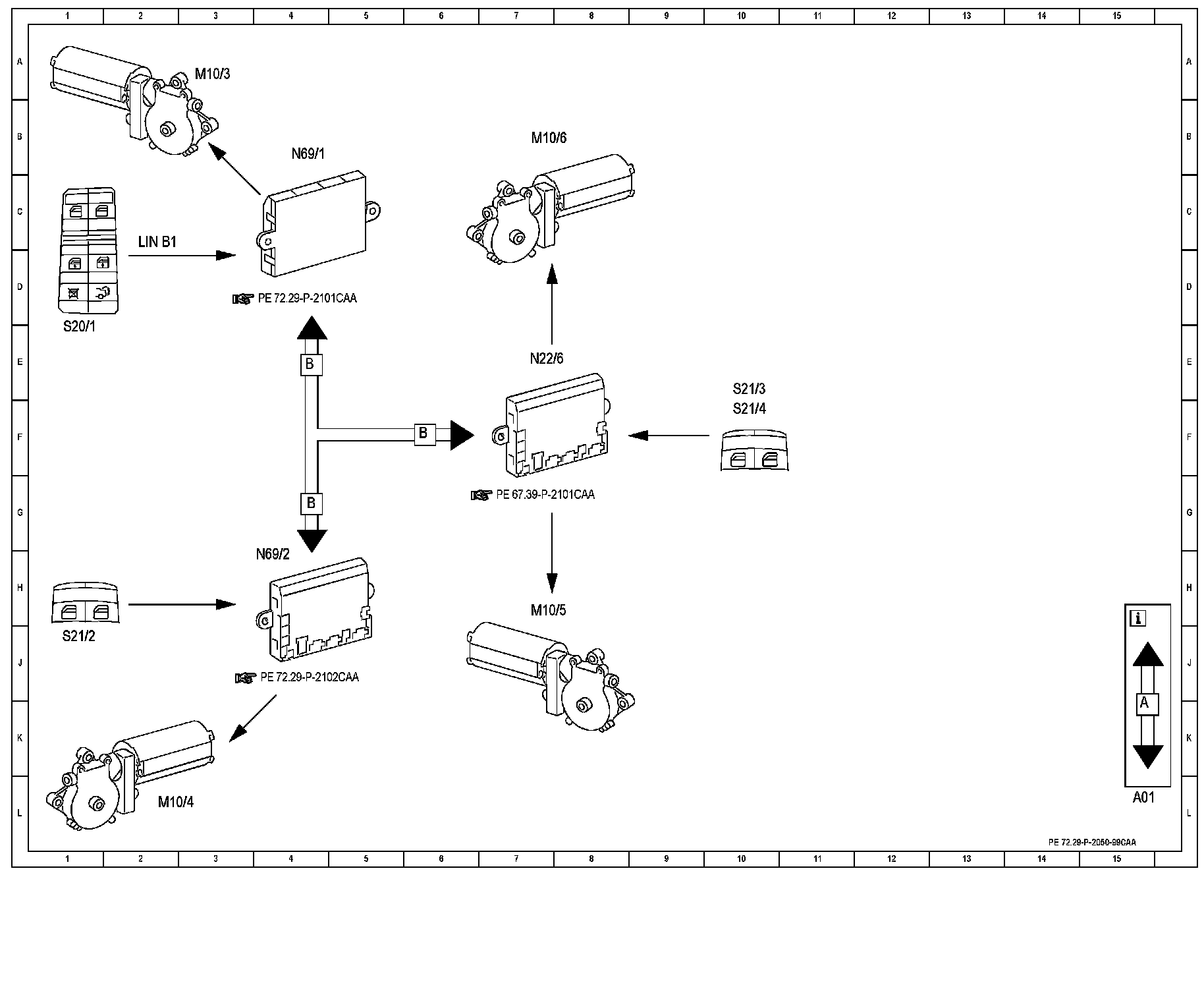

Function Diagram:

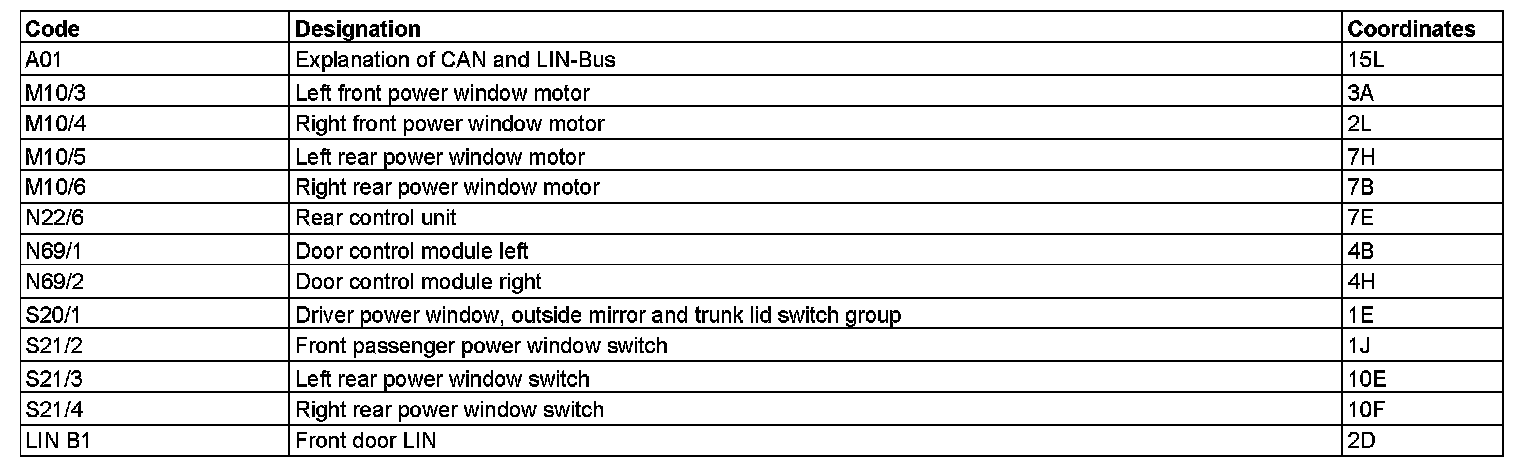

Component Description/Coordinates, A01 To LIN B1:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
