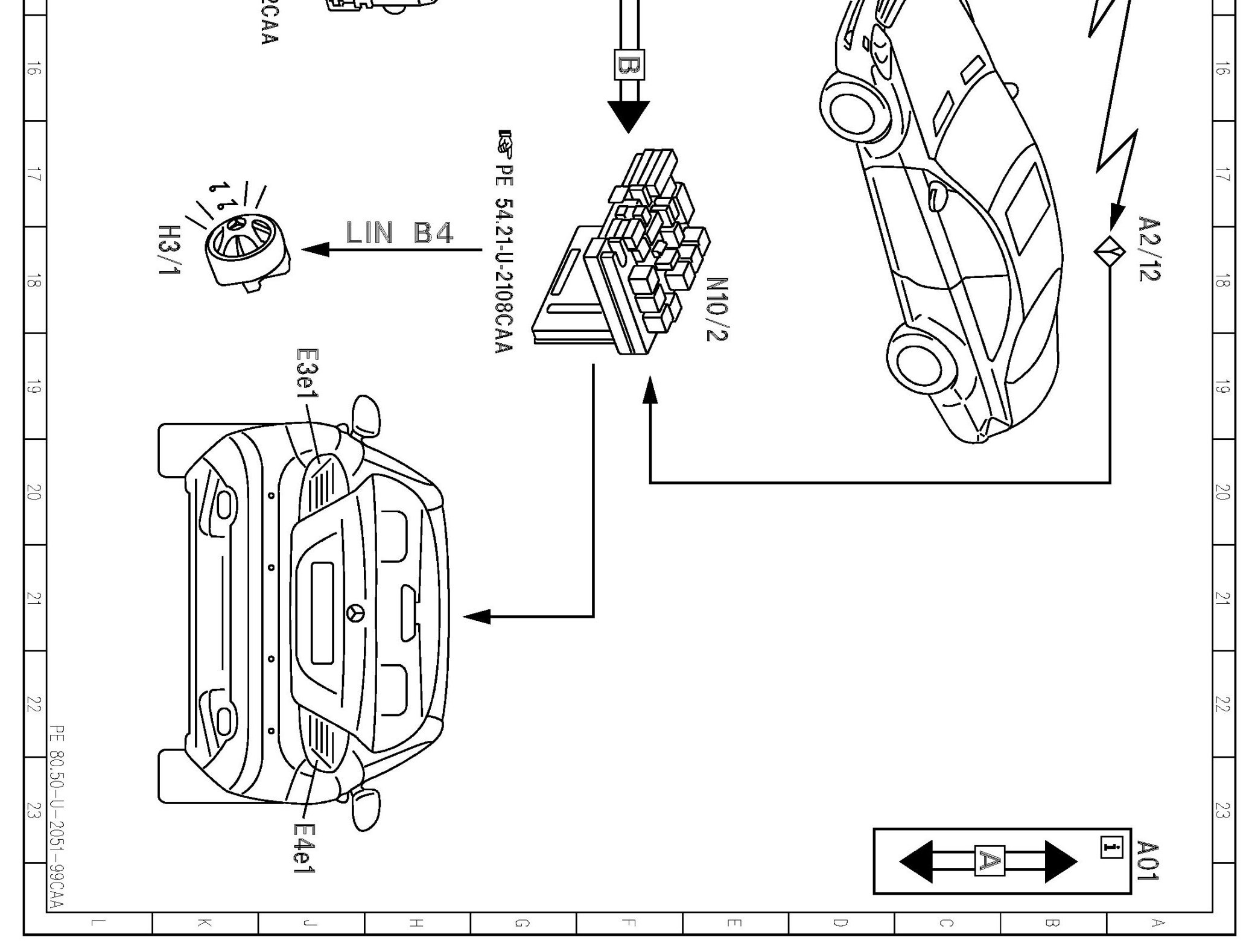

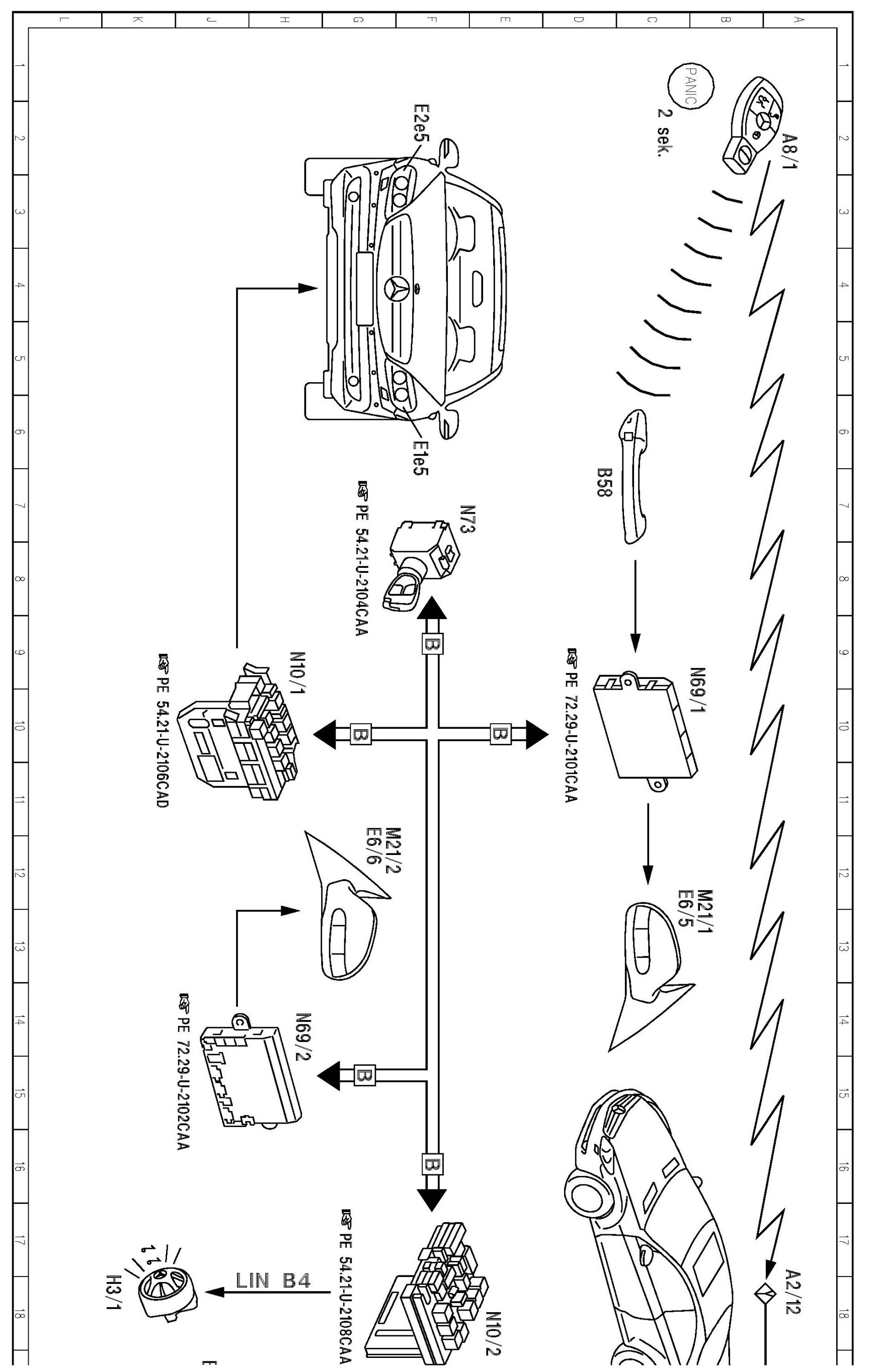

PE80.50-U-2051CAA Function Schematic For Panic Alarm Electrical System

PE80.50-U-2051CAA Function Schematic For Panic Alarm Electrical System

MODEL 216
- up to Model Year 2008
- switch on/switch off panic alarm



































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
