PE80.50-P-2050CAB Electrical Function Schematic For Anti-Theft Alarm System (ATA [EDW])

Electrical Function Schematic For Anti-theft Alarm System (ATA [EDW]) PE80.50-P-2050CAB
- ECE alarm interruption
- up to model year 08

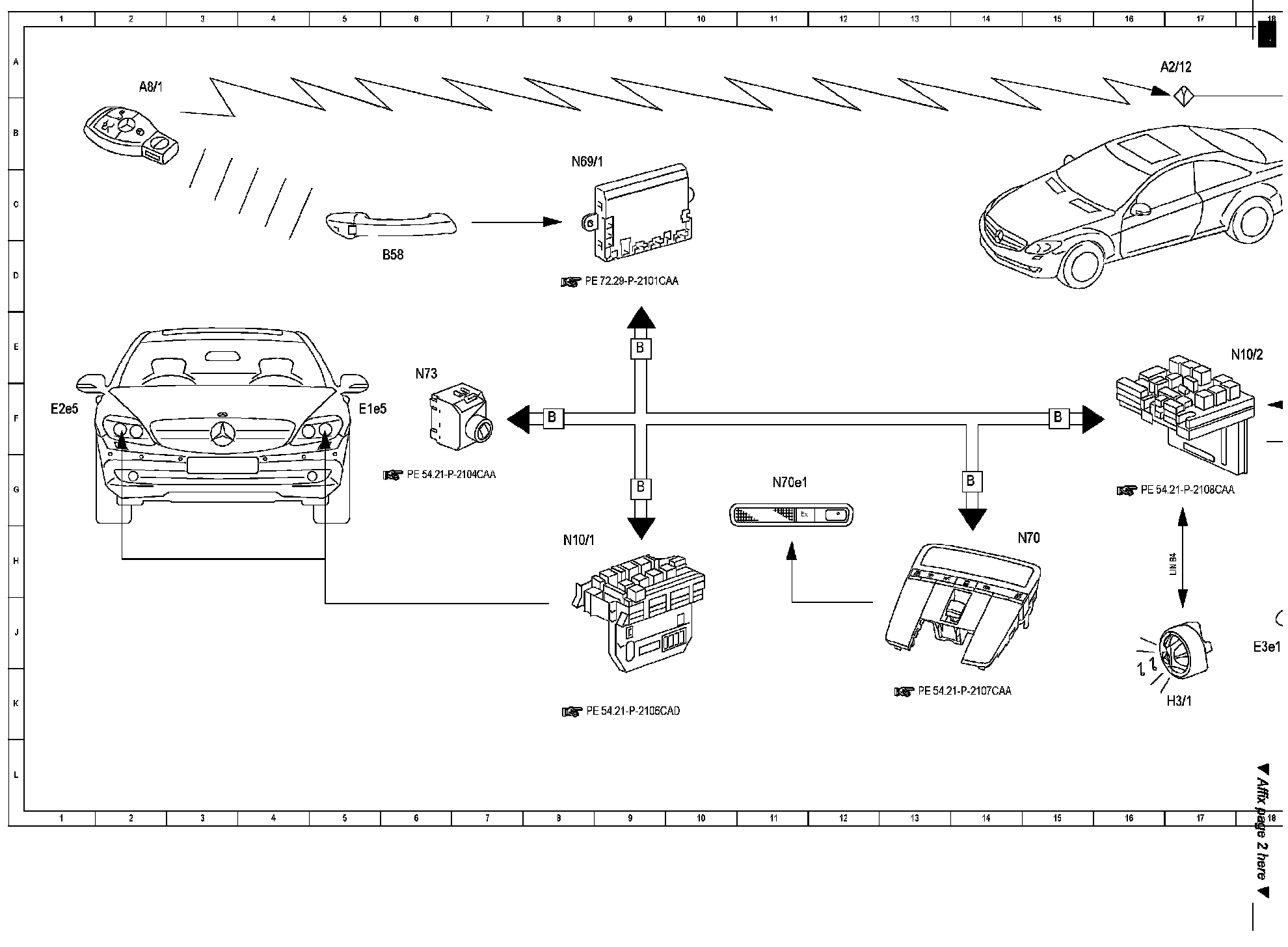

Function Diagram (Part 1):

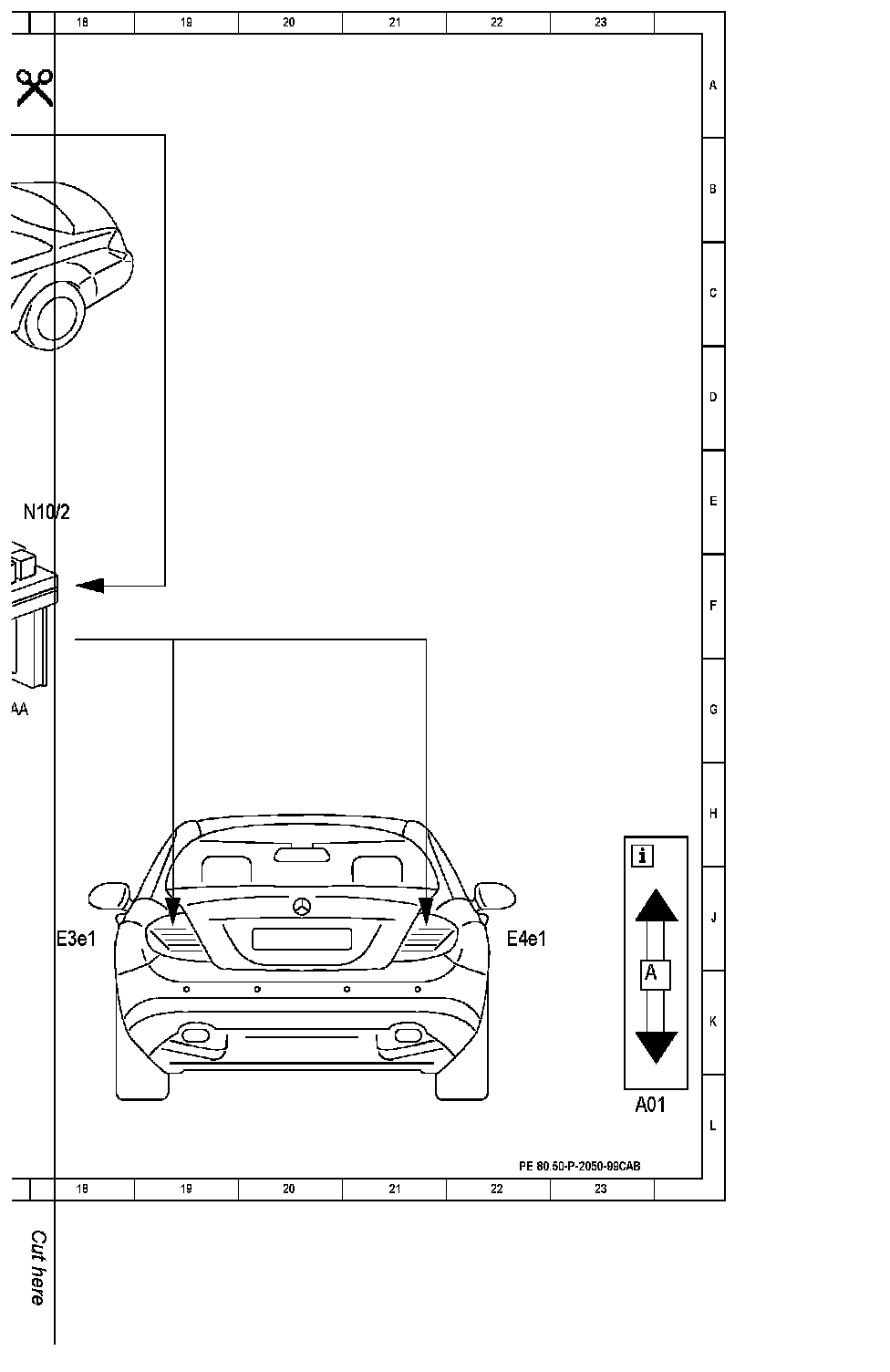

Function Diagram (Part 2):

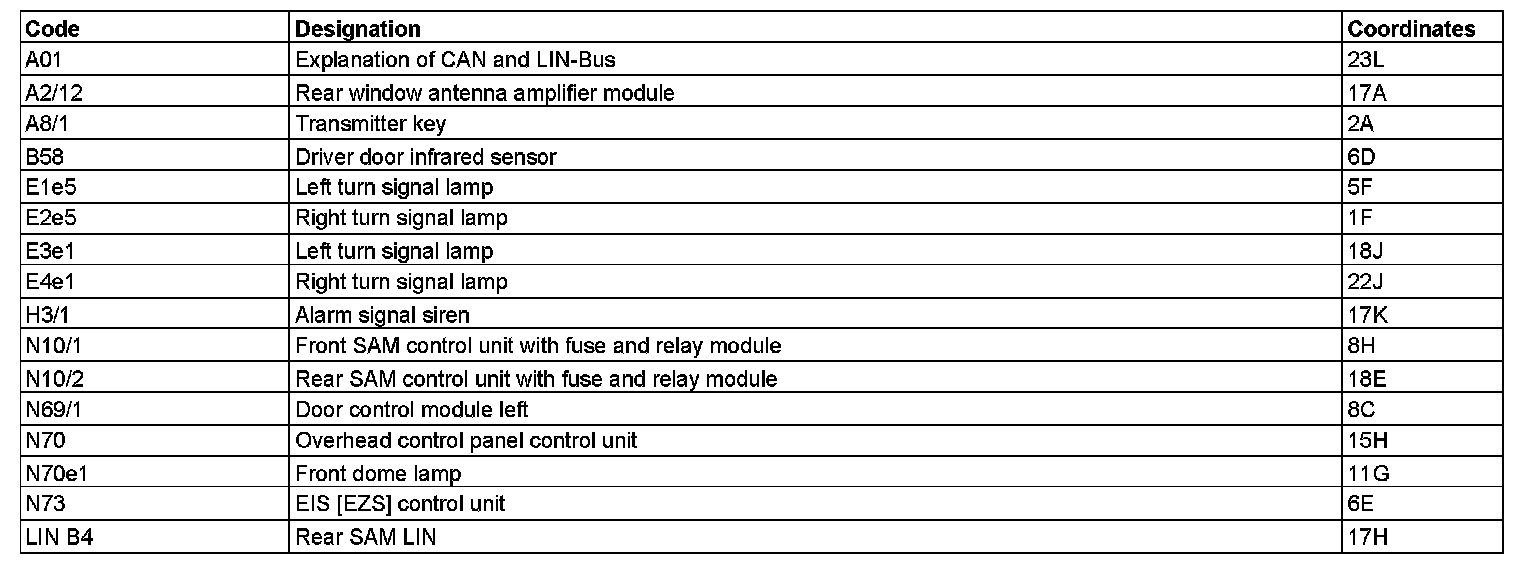

Component Description/Coordinates, A01 To LIN B4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
