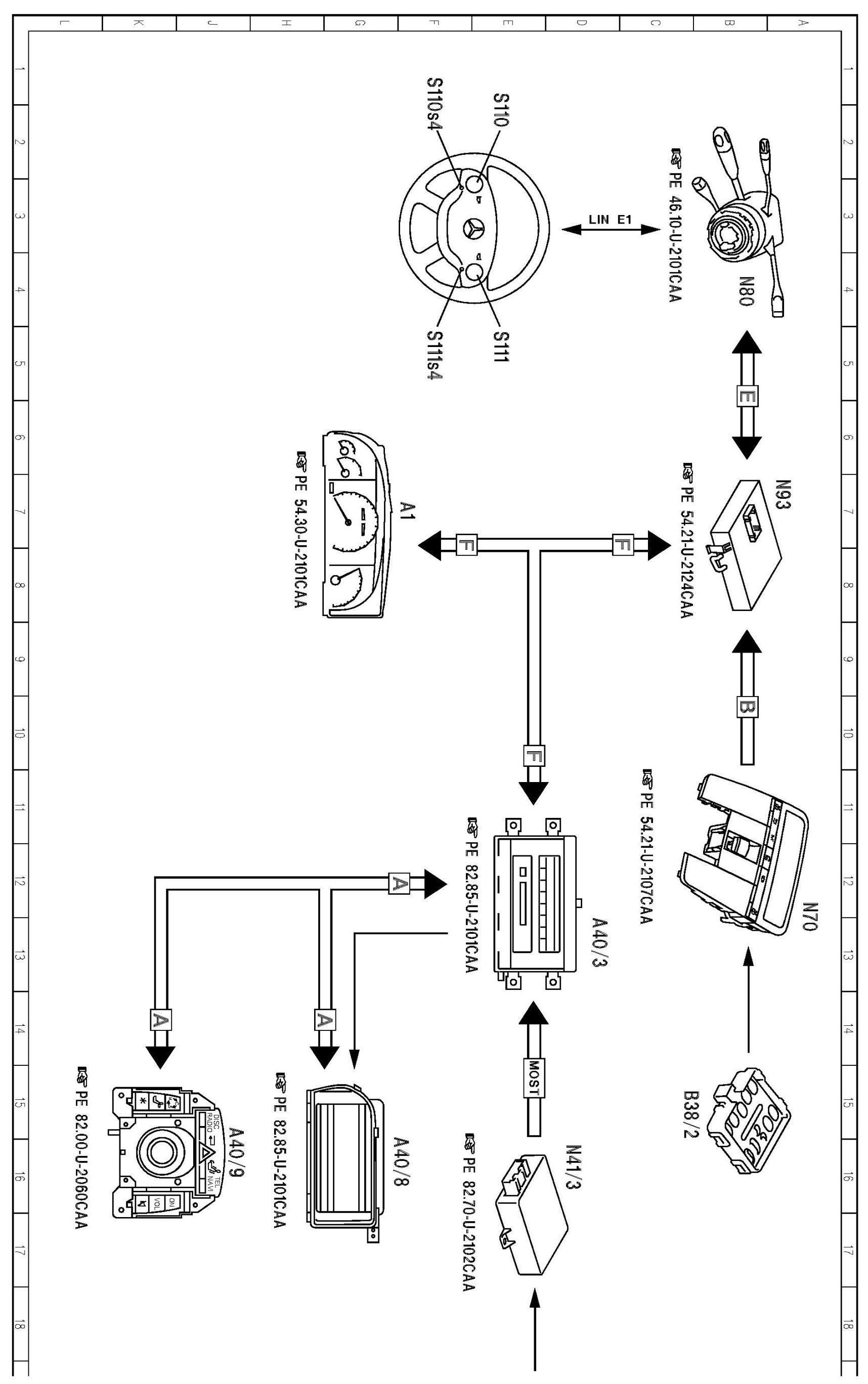

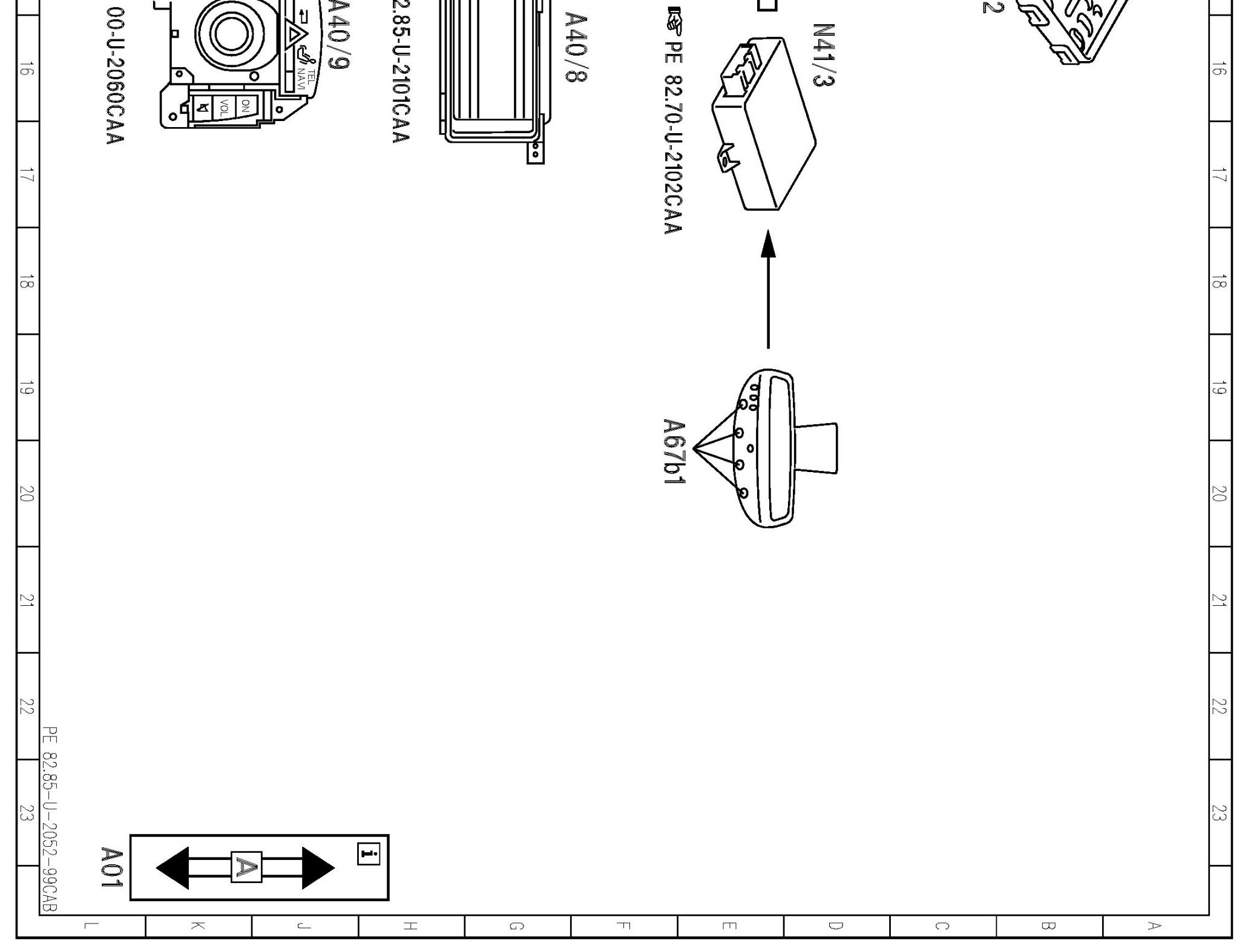

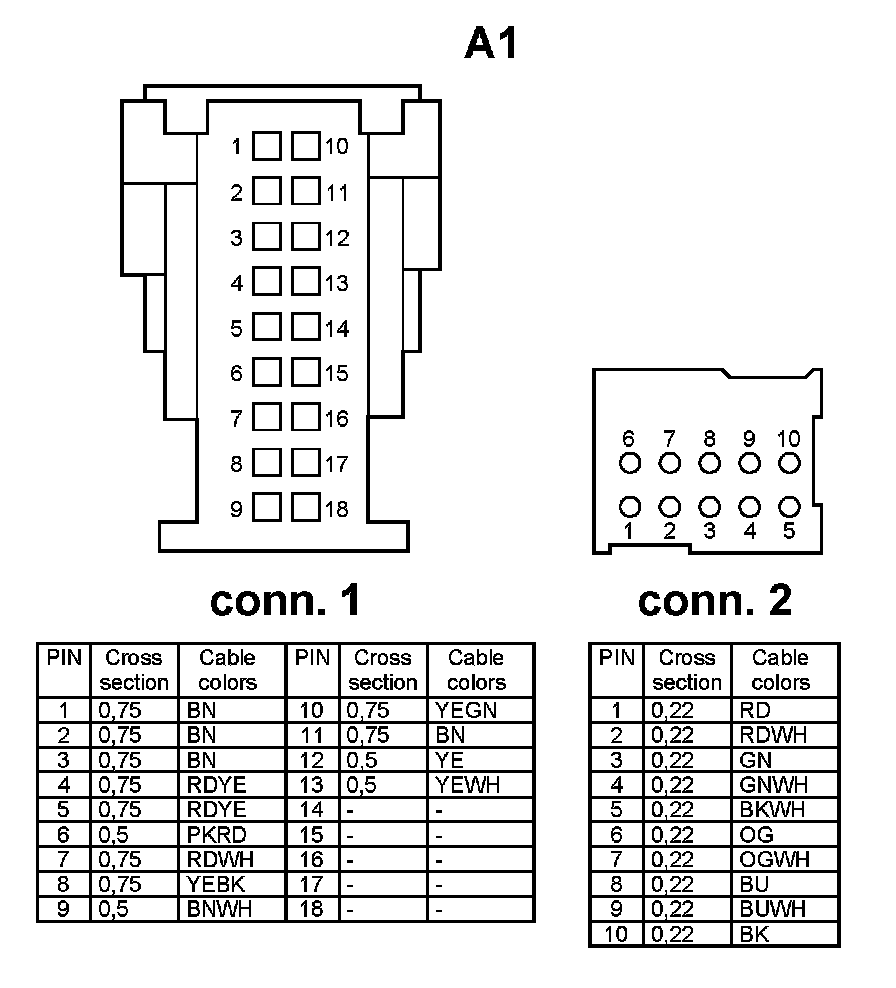

PE82.85-U-2052CAB Electrical Function Diagram For Information and Communications System

PE82.85-U-2052CAB Electrical Function Diagram For Information and Communications System

MODEL 216
- up to Model Year 2008
- Man Machine Interface







































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
