Home >> Mercedes Benz >> 2008 >> CL 65 AMG (216.379) V12-6.0L Turbo (275.982) >> Repair and Diagnosis >> Cruise Control >> Description and Operation >> GF30.30-P-0004-03SX Distronic Plus Including BAS Plus and Park Assist, Function Diagram

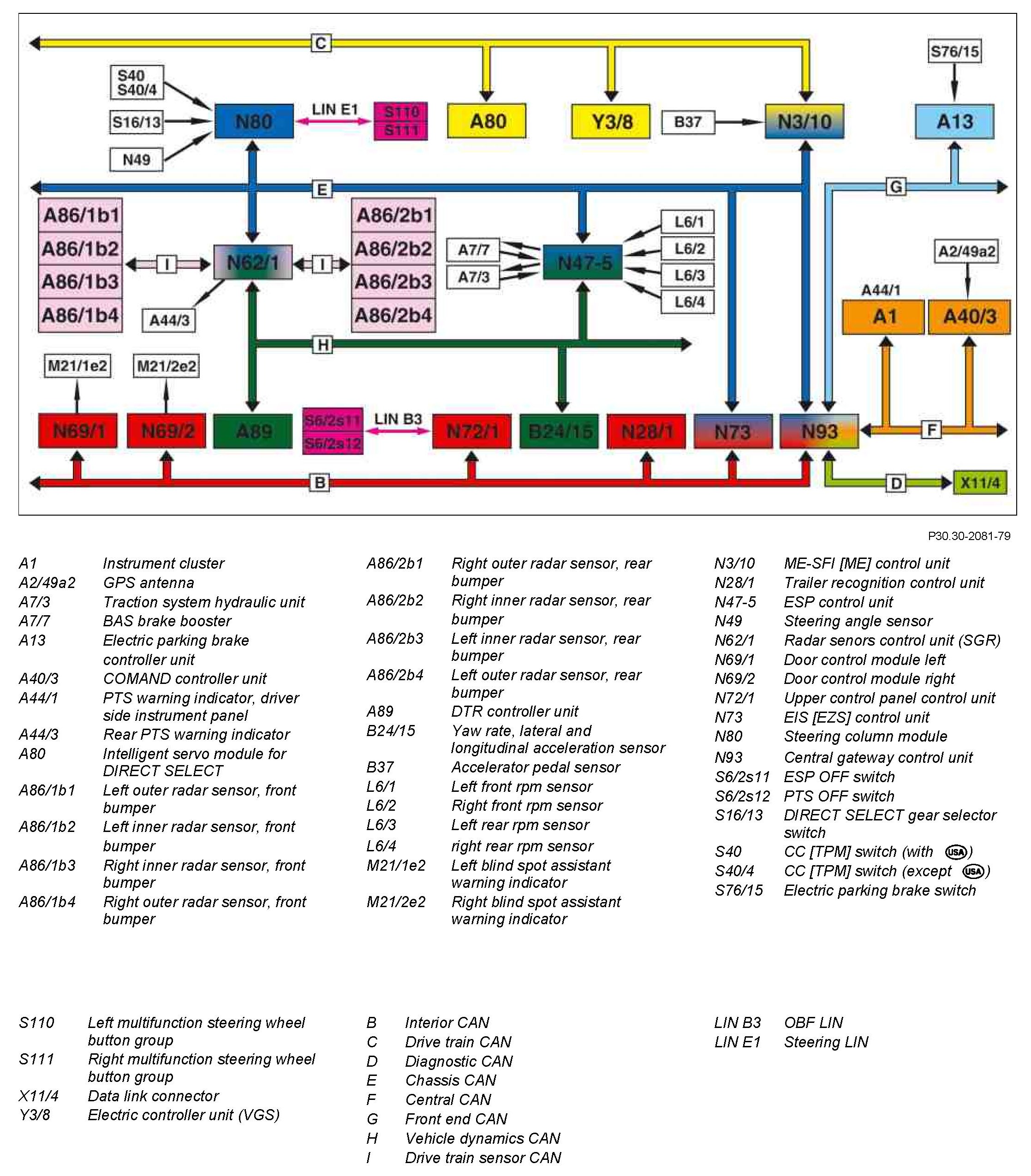

GF30.30-P-0004-03SX Distronic Plus Including BAS Plus and Park Assist, Function Diagram



GF30.30-P-0004-03SX Distronic Plus Including BAS Plus And Park Assist, Function Diagram
- with CODE (233) Distronic Plus
- up to model year 08



Component Identification:
