GF77.20-P-5218SX Open/Close Tilting/Sliding Roof (SR), Function

GF77.20-P-5218SX Open/Close Tilting/Sliding Roof (SR), Function
- with CODE (414) Power glass tilting/sliding roof
- up to model year 08

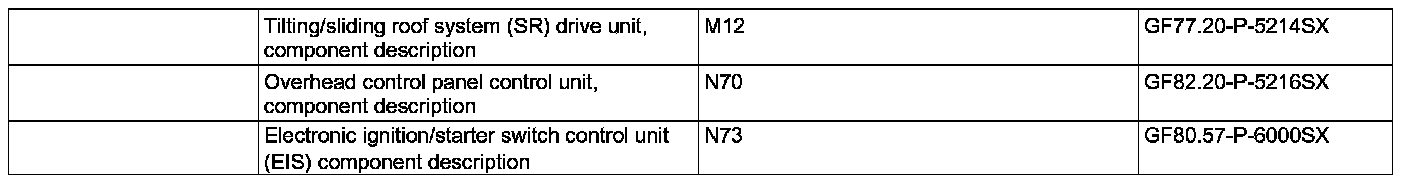

Component Identification:

Function requirements
^ Circuit 15R ON or
^ Run-on time active
(up to 5 min. after circuit 15R OFF, when front doors have not yet been opened)
^ Tilting/sliding roof (SR) normalized

Function
The SR can be opened or closed manually or automatically via the roof switch in the overhead control panel control unit.

The following operations are possible:
^ Open/close sliding roof
^ Open/close tilting roof

Manual opening/closing function
Actuate roof system switch to 1st notch and hold down until desired position is reached.

Automatic open/close function
Actuate roof system switch beyond 1st catch. Adjustment is now accomplished automatically to the corresponding limit stop or the last position stored.

If the roof switch is actuated again during automatic opening, the adjustment is stopped immediately and the present position of the tilting/sliding roof is stored.

Position measurement
The signals from the roof system Hall sensor 1 (M12b1) and roof system Hal sensor 2 (M12b2) in the drive unit are read in and evaluated by the overhead control panel control unit for determination of the position.

Obstruction protection
The obstruction sensor is active only during automatic closing.
