GF98.00-P-4005SX Detachable Parts: Substrate, Paintwork and Paintwork Structure
GF98.00-P-4005SX Detachable Parts: Substrate, Paintwork and Paintwork Structure
GF98.00-P-4005SX Detachable Parts: Substrate, Paintwork And Paintwork Structure

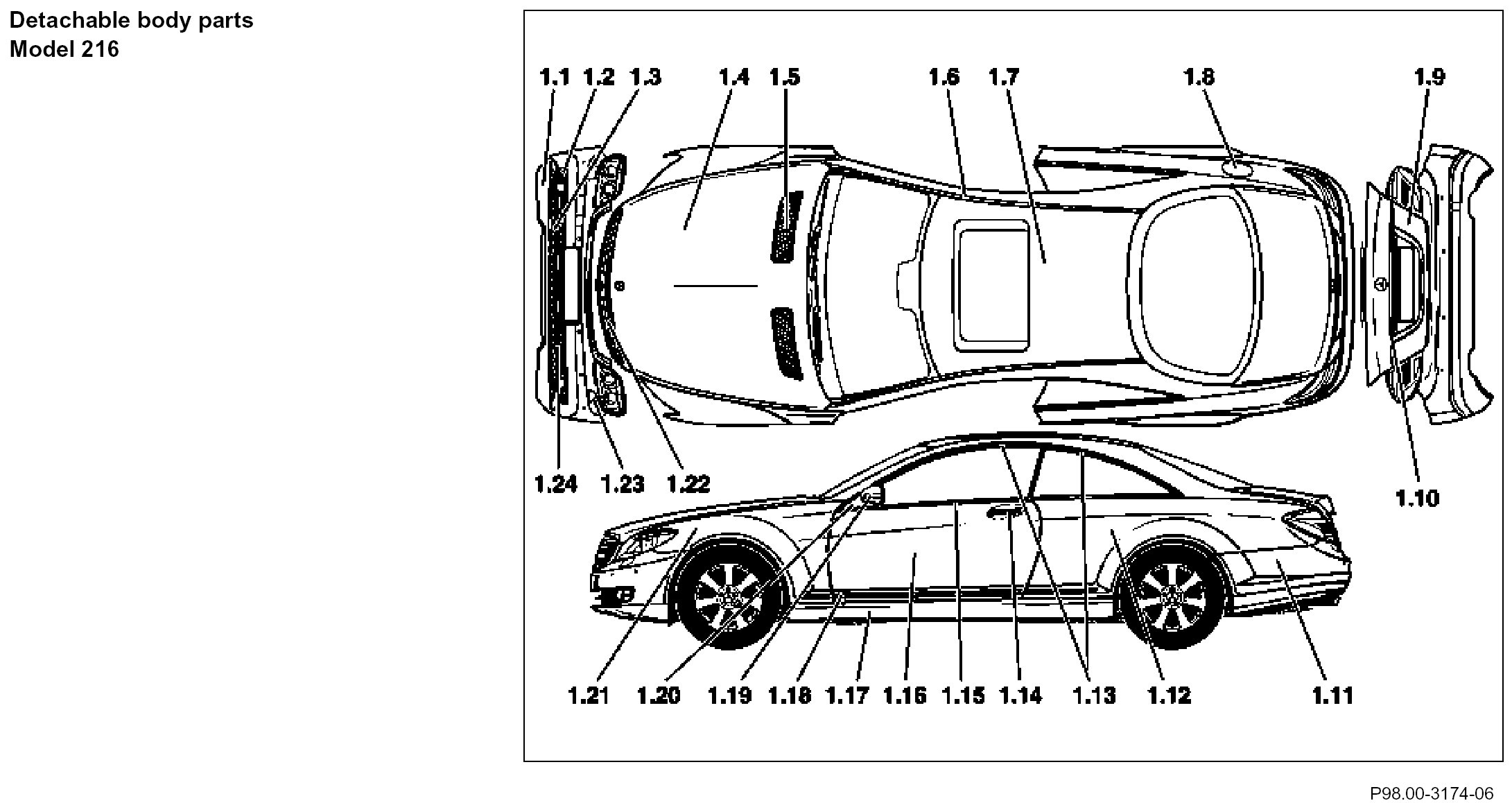

Component Identification:

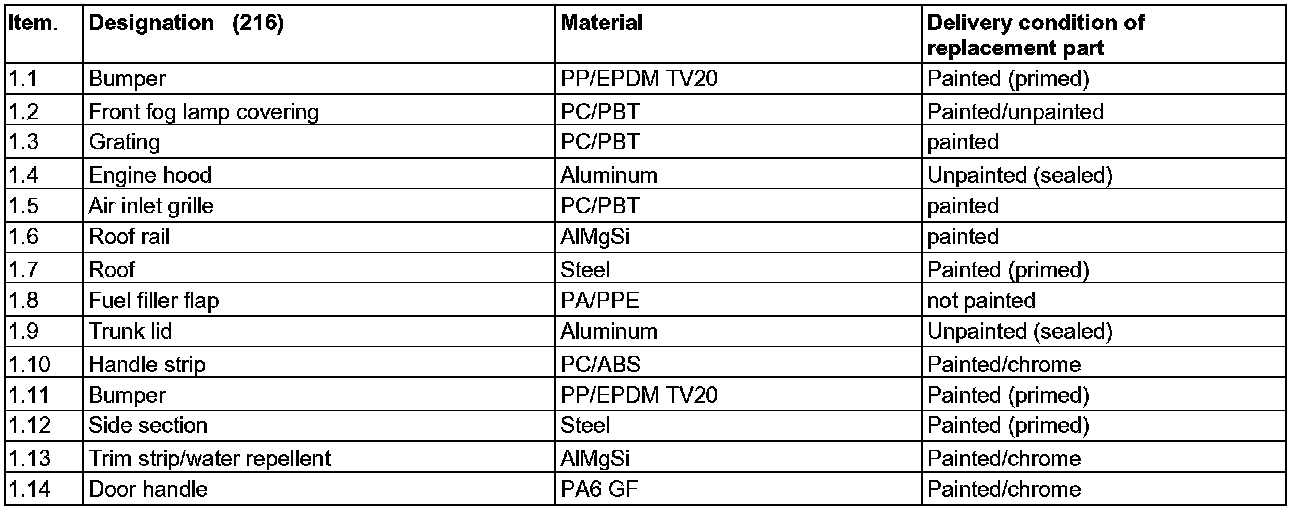

Item 1.1 - 1.14:

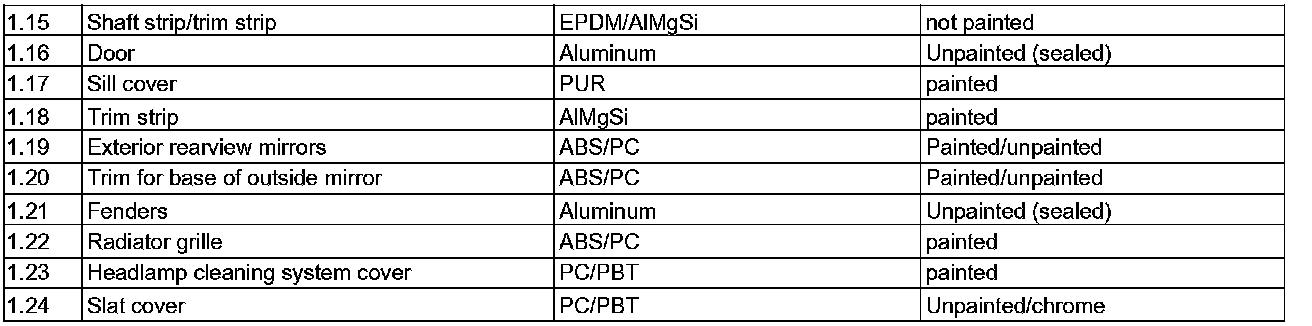

Item 1.15 - 1.24:
