Keyless Start Antenna: Description and Operation

GF82.62-P-4099SX Keyless Go Antenna, Component Description

MODEL 221.0 /1, 216.3
- with CODE (889) Keyless Go
- up to Model Year 8







Shown on model 221.0
A2/35 Trunk Keyless Go antenna

Location

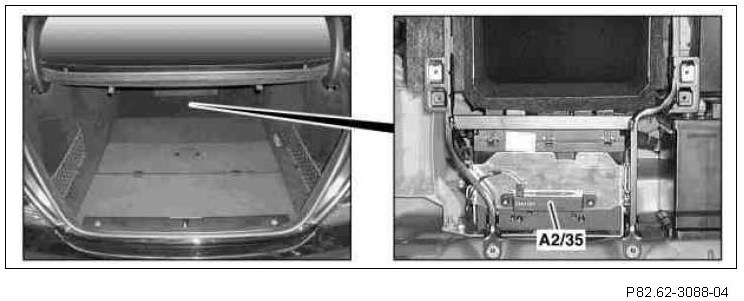

The trunk Keyless Go antenna is located on the bracket for the rear SAM control unit with fuse and relay module (N10/2) in the trunk.







MODEL 216.3
A2/39 Left door Keyless Go antenna
A2/41 Right door Keyless Go antenna

Location

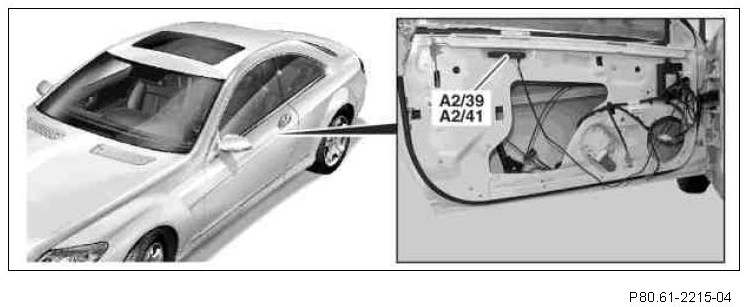

The left door Keyless Go antenna and the right door Keyless Go antenna are located behind the door trim of the respective door.







MODEL 221
A2/39 Left rear door Keyless Go antenna
A2/41 Right rear door Keyless Go antenna

Location

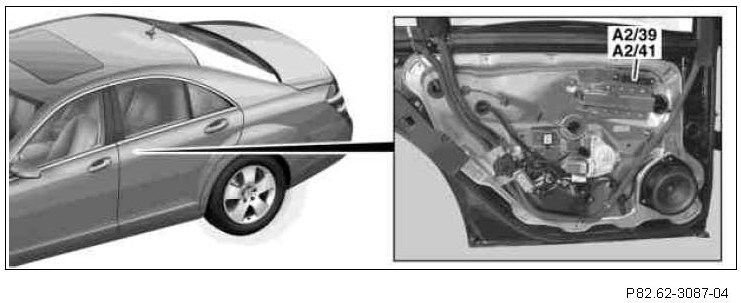

The left rear door Keyless Go antenna and the right rear door Keyless Go antenna are located behind the door trim of the respective rear door.







Illustrated on model 221
A2/60 Center console Keyless Go antenna

Location

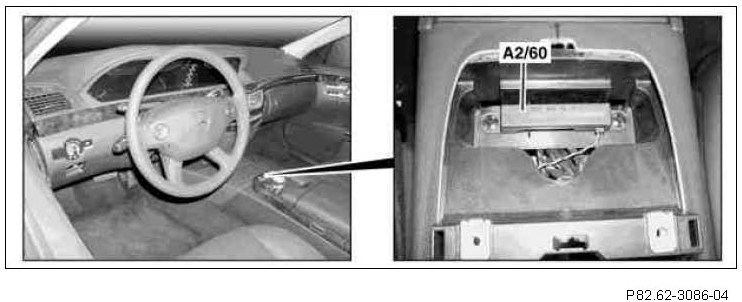

The center console Keyless Go antenna is located under the center console in the area of the turn/push control (A40/9s11).







MODEL 216.3
A2/61 Interior Keyless Go antenna

Location

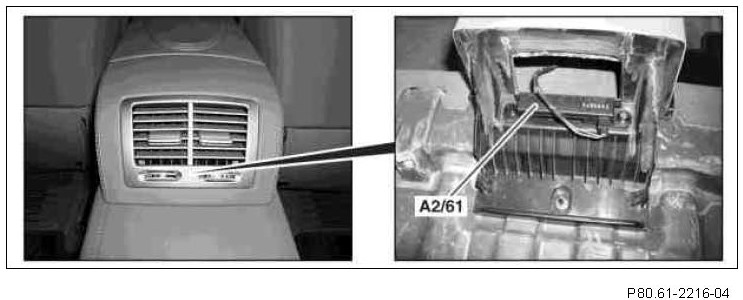

The interior Keyless Go antenna is located under the rear center console in the area of the air outlet vent.







MODEL 221
A2/61 Interior Keyless Go antenna

Location

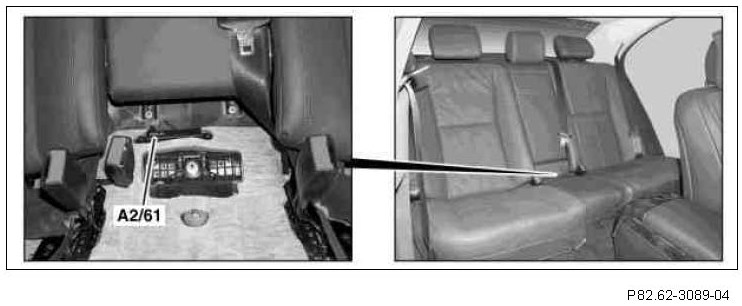

The interior Keyless Go antenna is located under the rear seats.

Tasks
At the request of the Keyless Go control unit (N69/5), the Keyless Go antennas transmit a wake-up and locating signal for the transmitter key (A8/1).
