PE80.50-P-2050CAC Electrical Function Schematic For Anti-Theft Alarm System (ATA [EDW])

Electrical Function Schematic For Anti-theft Alarm System (ATA [EDW]) PE80.50-P-2050CAC
- Self-arming, Belgium
- up to model year 08

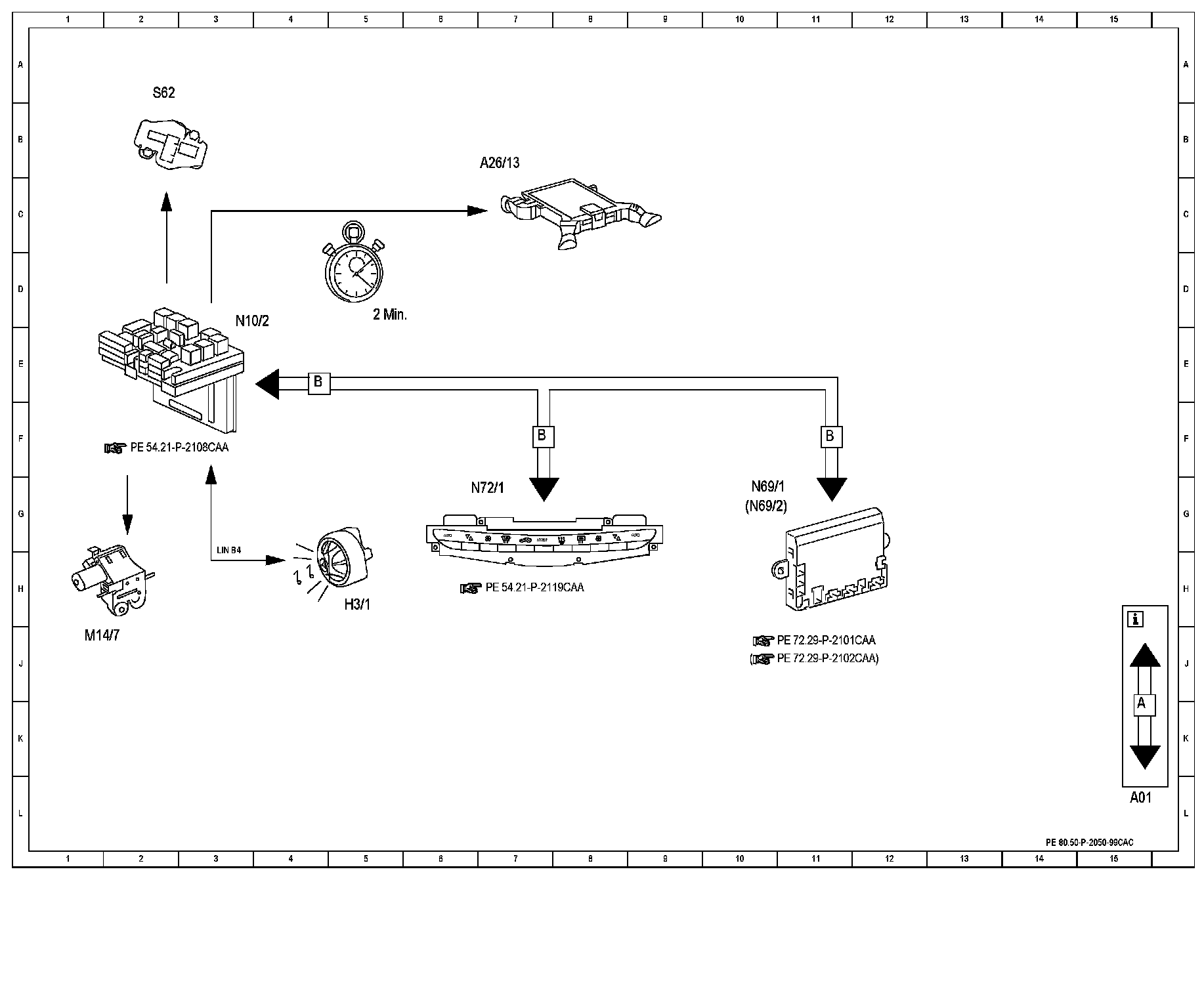

Function Diagram:

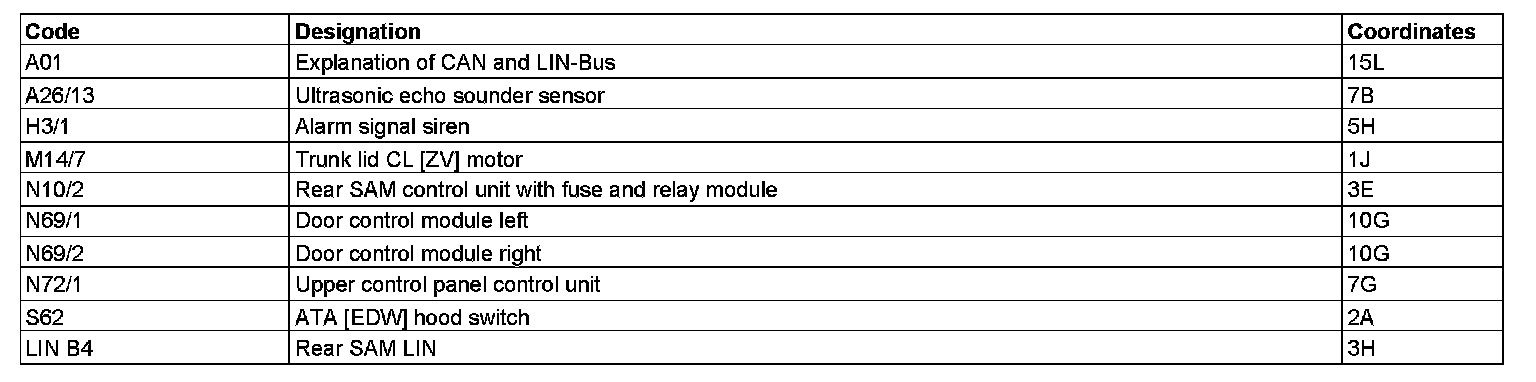

Component Description/Coordinates, A01 To LIN B4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
