GF80.50-P-3014SXU Triggering Alarm With Panic Switch, Function
GF80.50-P-3014SXU Triggering Alarm With Panic Switch, Function
- with CODE (494) USA version
- with CODE (551) Anti-theft alarm system (ATA [EDW])
- with CODE (763) Radio remote control with panic switch

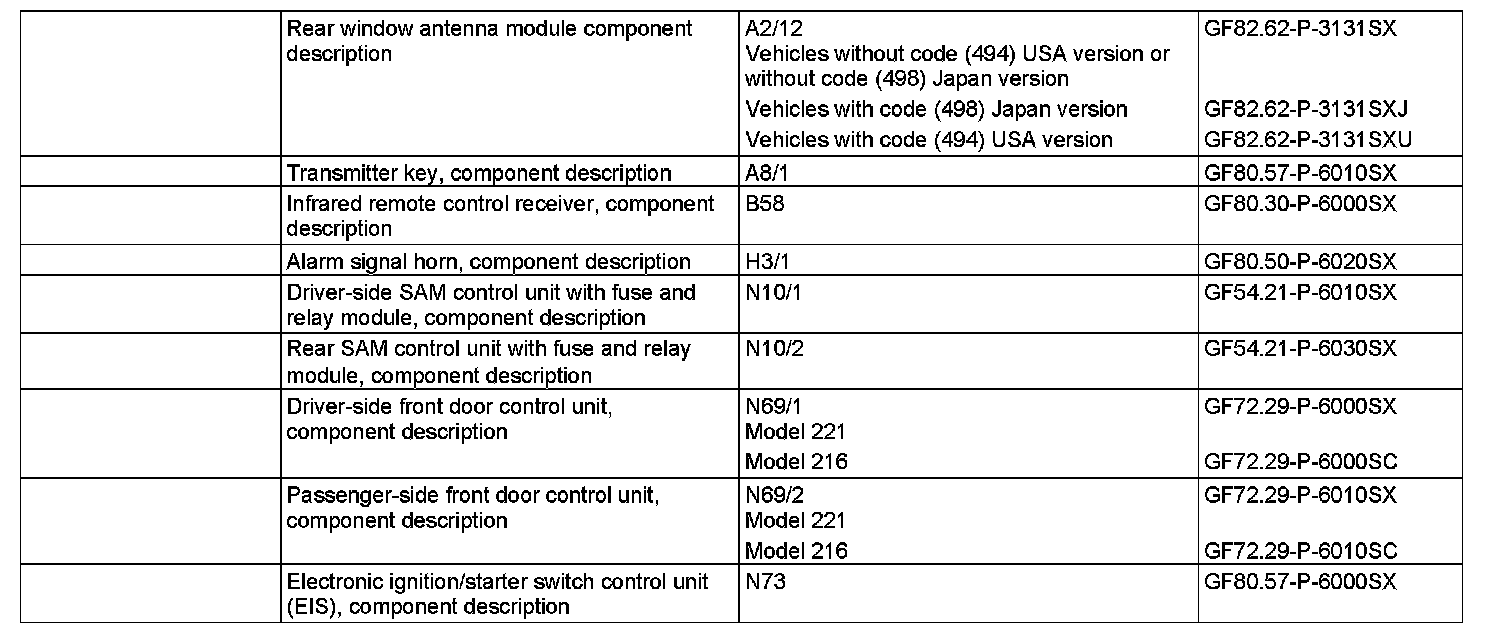

Component Identification:

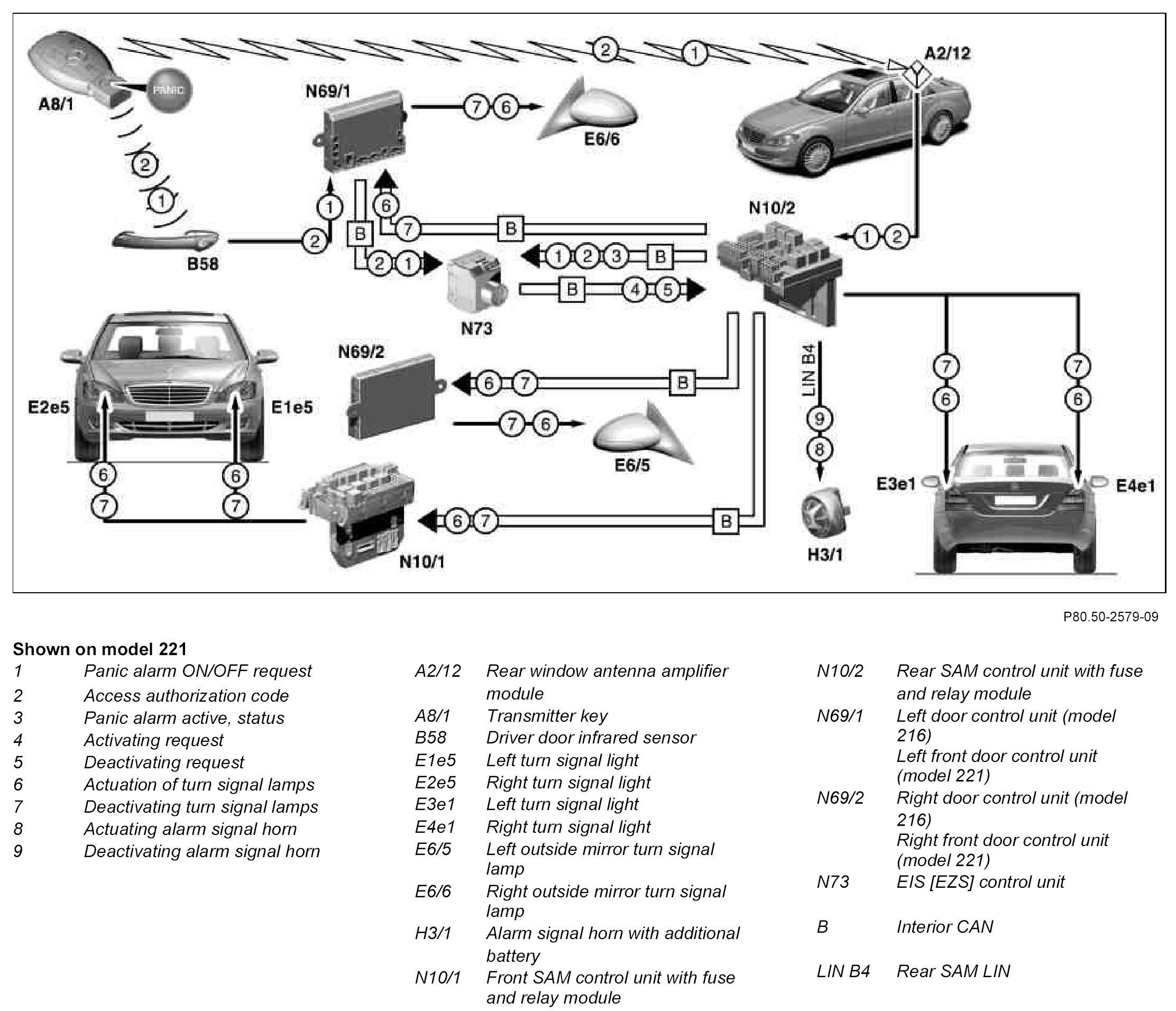

Activating panic alarm
Function requirements:
^ Circuit 15C OFF (no circuit switched)
Function
When the panic alarm button is actuated on the transmitter key for approx. 2 s, it transmits a signal to the rear SAM control unit via the antenna amplifier module and then on to the EIS control unit. Simultaneously with the radio signal, an infrared signal is transmitted to the driver door infrared sensor (precise aiming required). This signal is read in by the corresponding door control unit and transferred to the EIS control unit.
In both cases, the EIS control unit checks the access authorization of the transmitter key. If the access authorization is valid, the EIS control unit transmits the command "Activate panic alarm" to the rear SAM control unit, which then actuates a visual and acoustic alarm.
The duration of the visual and acoustic panic alarm is equal. On vehicles with panic alarm, the interior illumination is not activated as it is the case with the ATA.
The panic alarm has priority over the ATA.
Deactivate panic alarm
Function
The panic alarm is interrupted when the panic alarm button on the transmitter key is actuated briefly. The function sequence is identical to the panic alarm activation function.
The panic alarm function and the alarm duration are programmable.
Function sequence when panic alarm and ATA are actuated simultaneously
If both alarms are actuated, the panic alarm with the higher priority is activated and the ATA is suppressed. The ATA remains activated in the background.
If the panic alarm is completed or interrupted, the ATA suppressed up to that time is activated. A coding variant in the rear SAM control unit offers an exception, with which the ATA is interrupted as soon as the panic alarm is terminated.
