GF40.15-P-0001-06CW Tire Pressure Monitor (TPM [RDK]) Location of Components

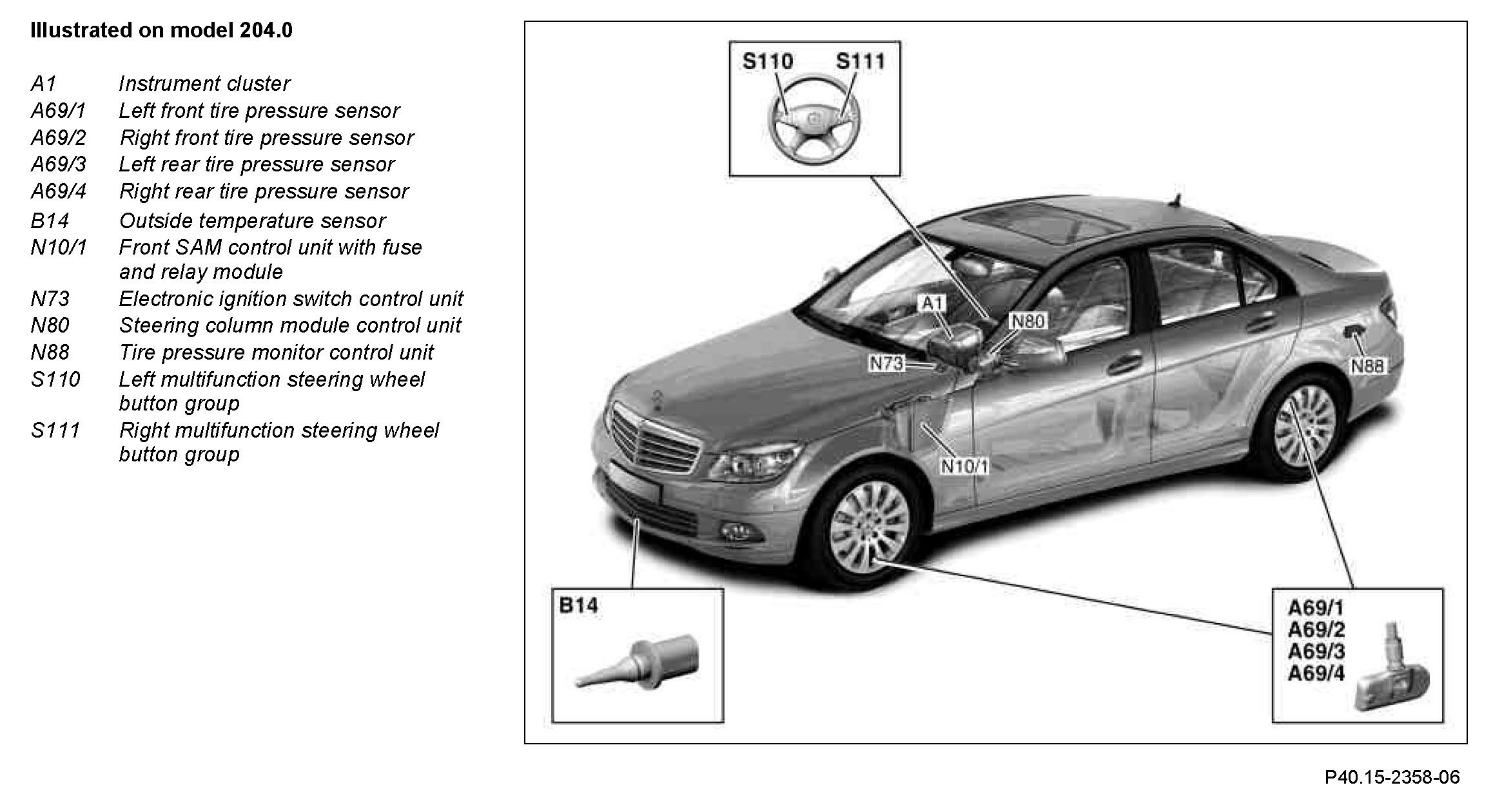

GF40.15-P-0001-06CW Tire pressure monitor (TPM [RDK]) location of components
- with CODE (470) Tire pressure monitor (base)

Component Identification:
