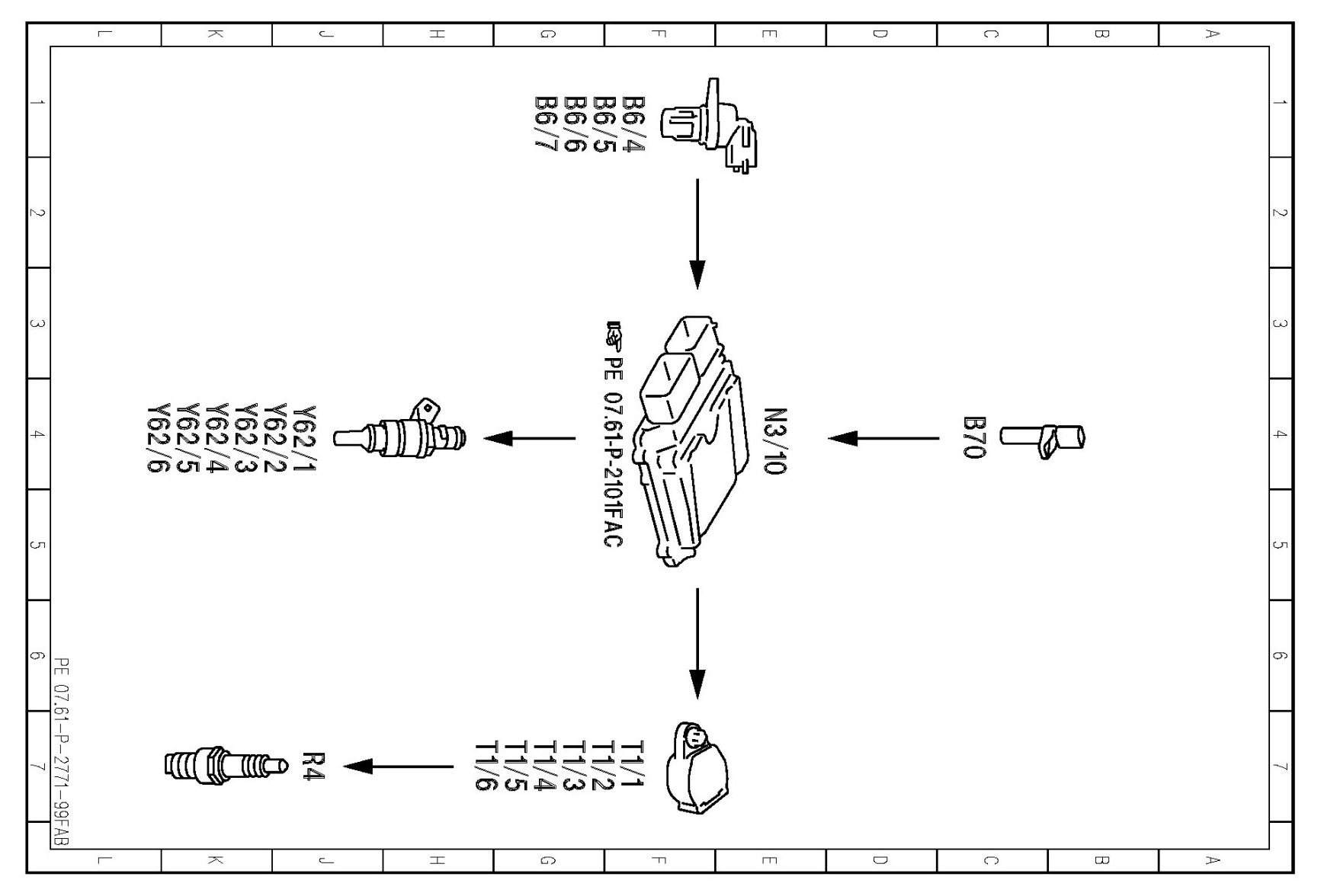

PE07.61-P-2771FAB Electrical Function Diagram For Synchronization Of Injection And Firing Order ME

PE07.61-P-2771FAB Electrical Function Diagram For Synchronization of Injection and Firing Order ME

ENGINE 272 in MODEL 204
- up to model year 08 /AEJ 07

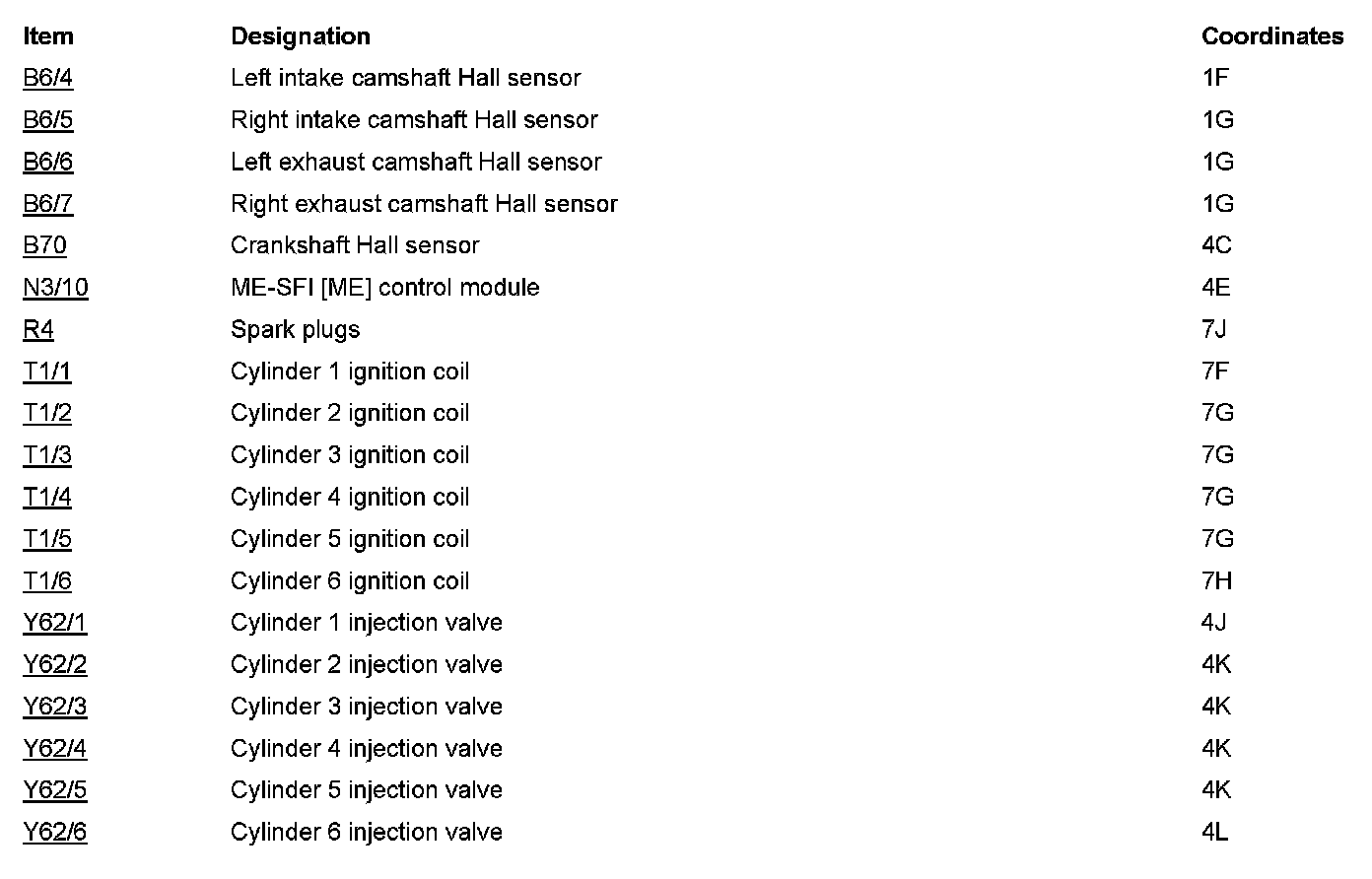

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
