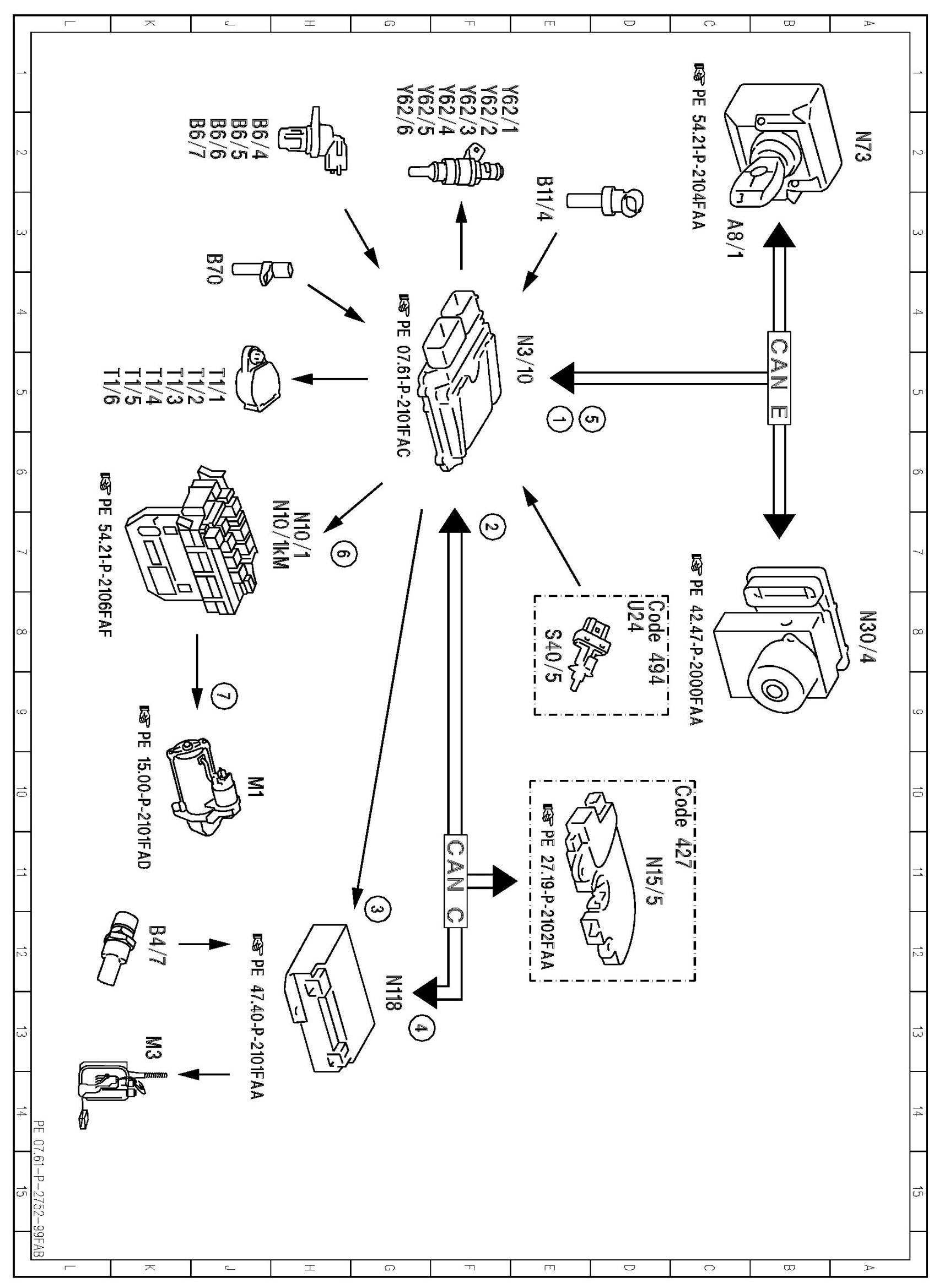

PE07.61-P-2752FAB Electrical Function Schematic, ME Engine Start

PE07.61-P-2752FAB Electrical Function Schematic, ME Engine Start

ENGINES 272 in MODEL 204
- up to model year 08 /AEJ 07

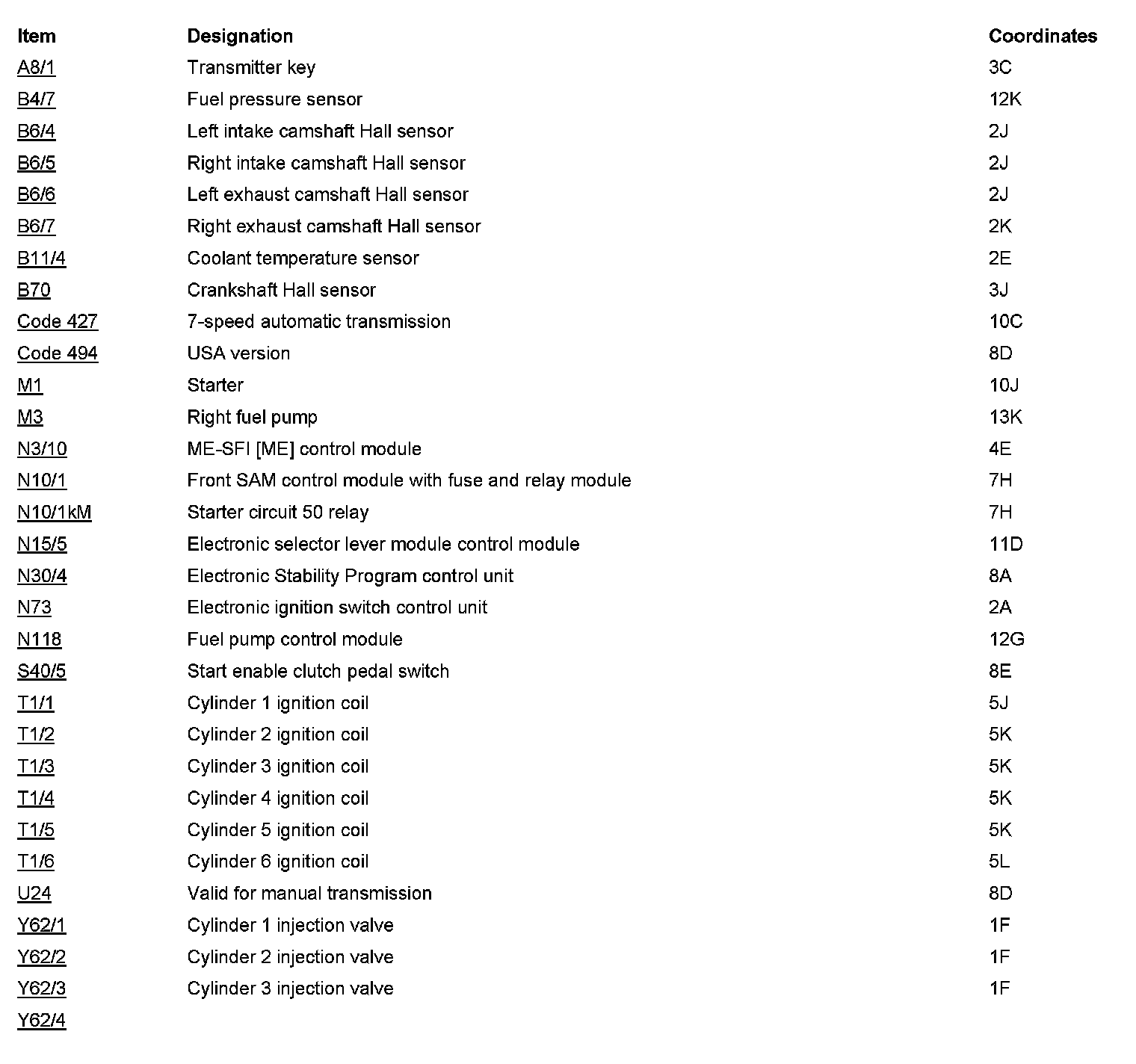

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
