PE77.20-P-2050FAA Electrical Function Schematic For Tilting/Sliding Roof (SHD)

PE77.20-P-2050FAA Electrical Function Schematic For Tilting/Sliding Roof (SHD)

MODEL 204
- with CODE (414) Power glass tilting/sliding roof
- up to model year 08 /YoM 07











































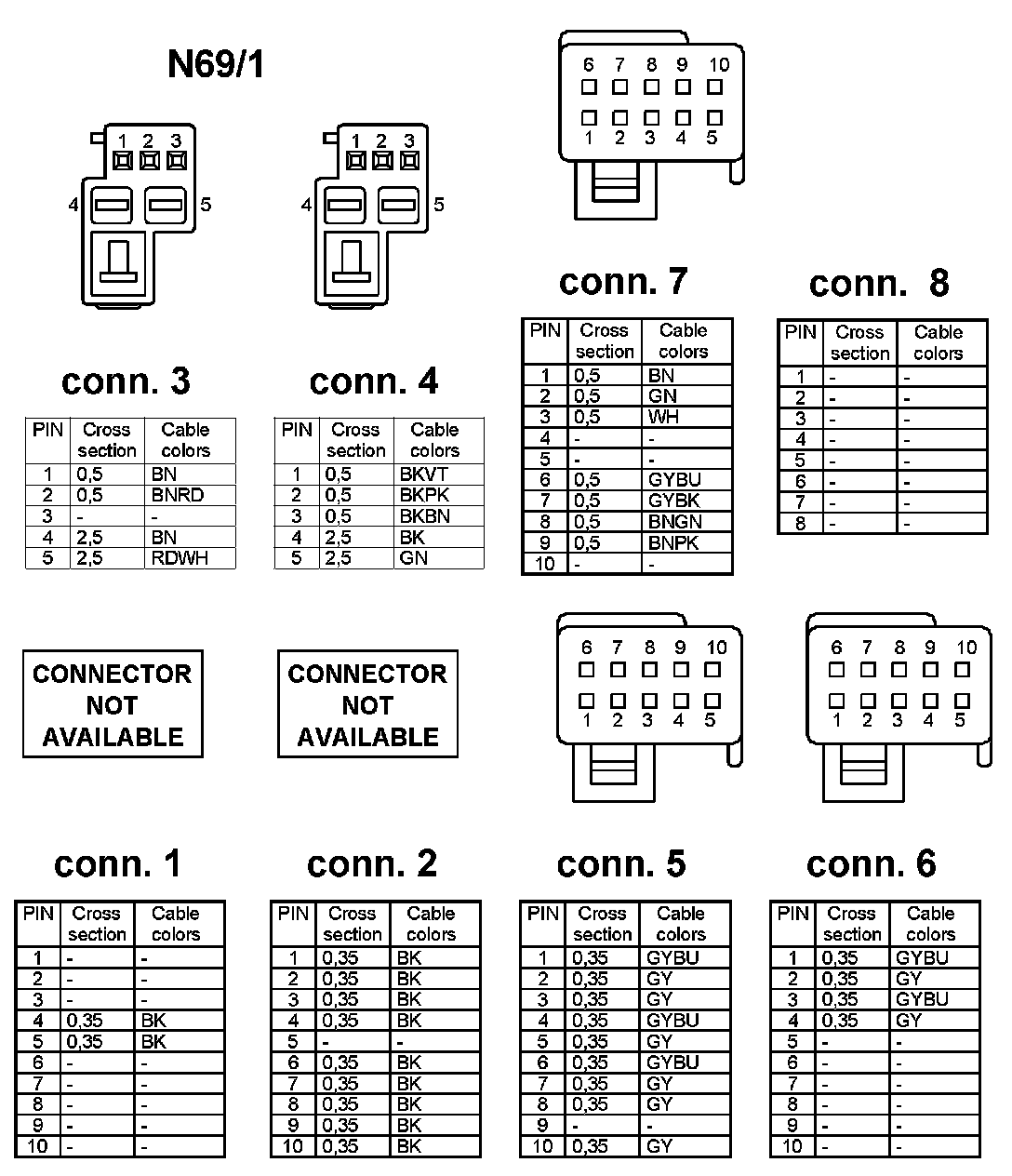

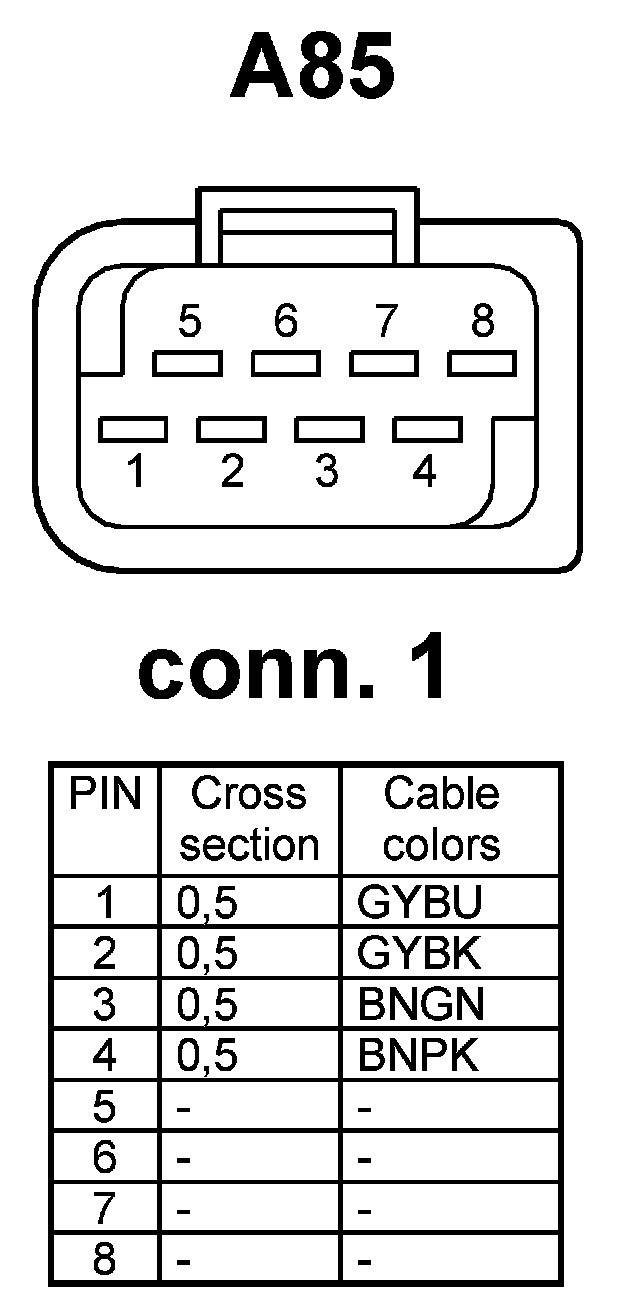

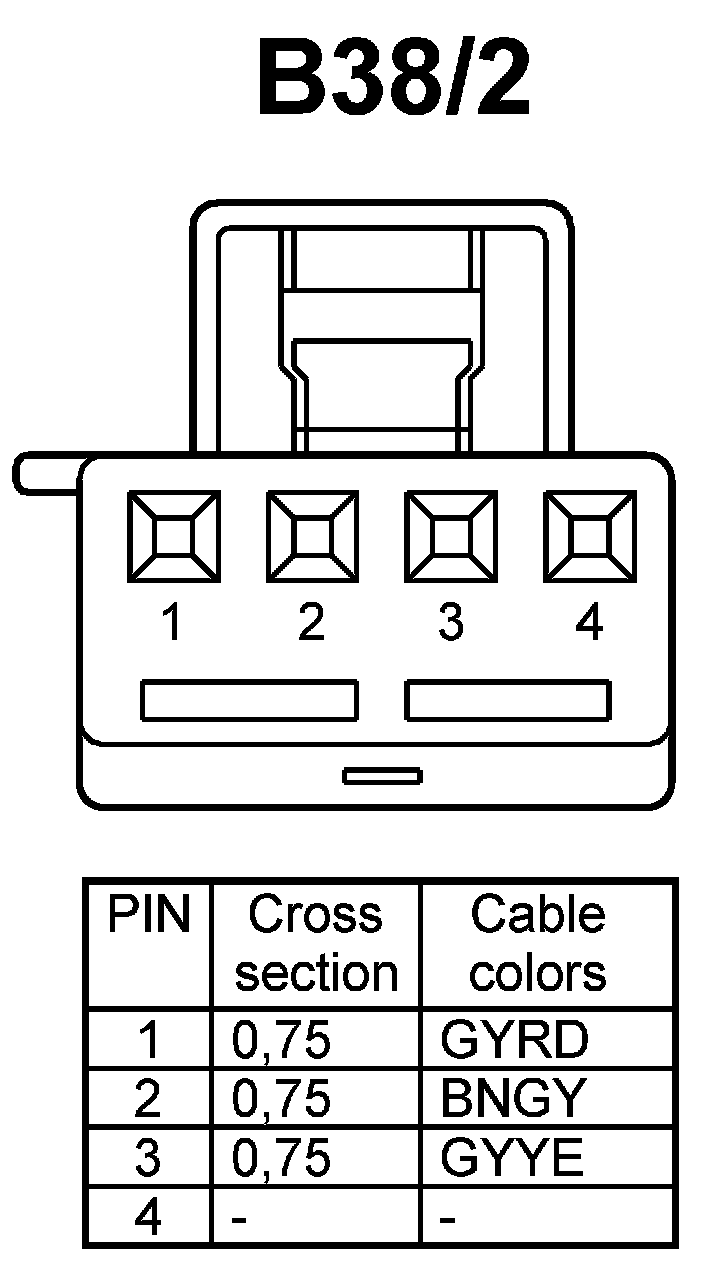

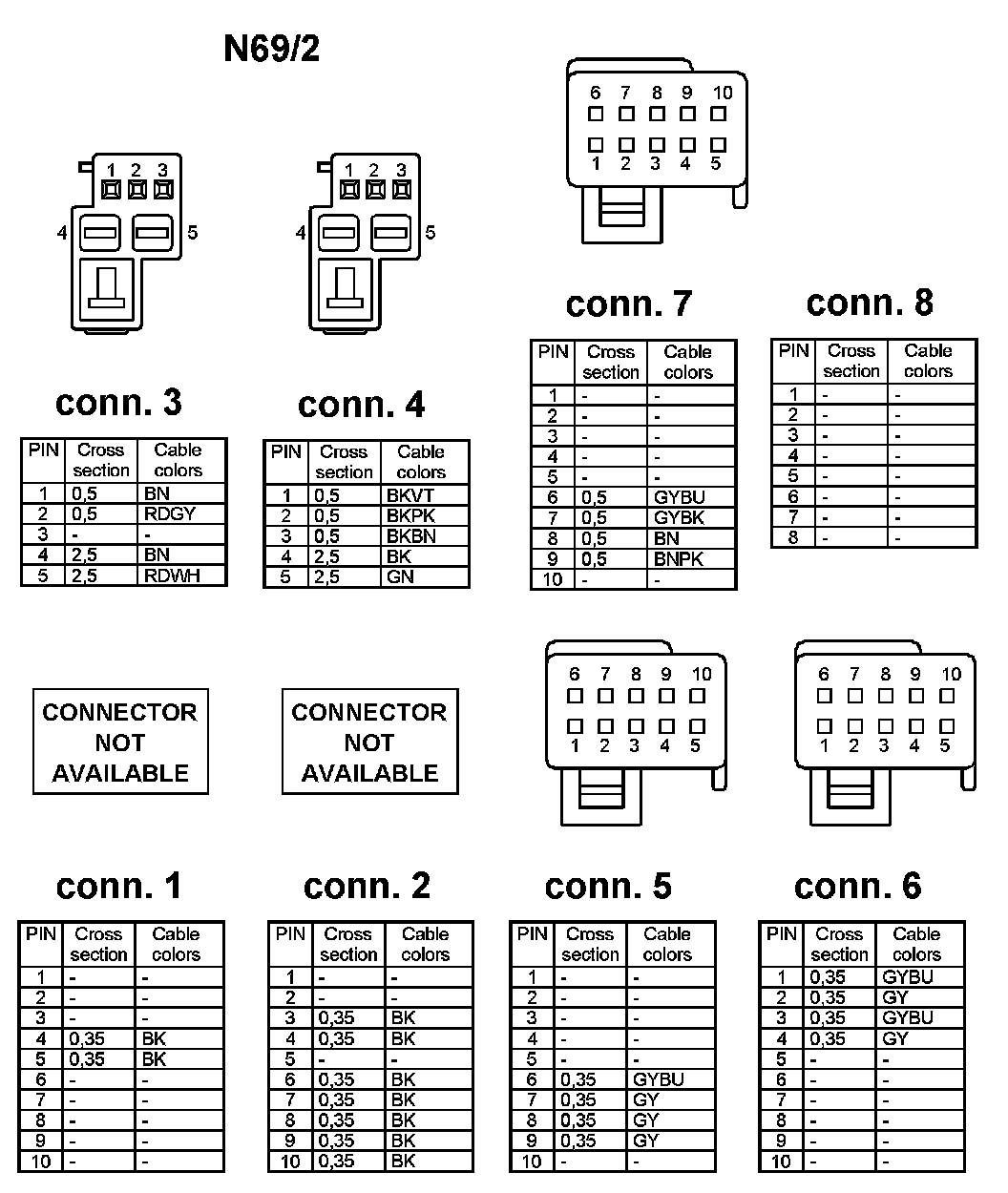

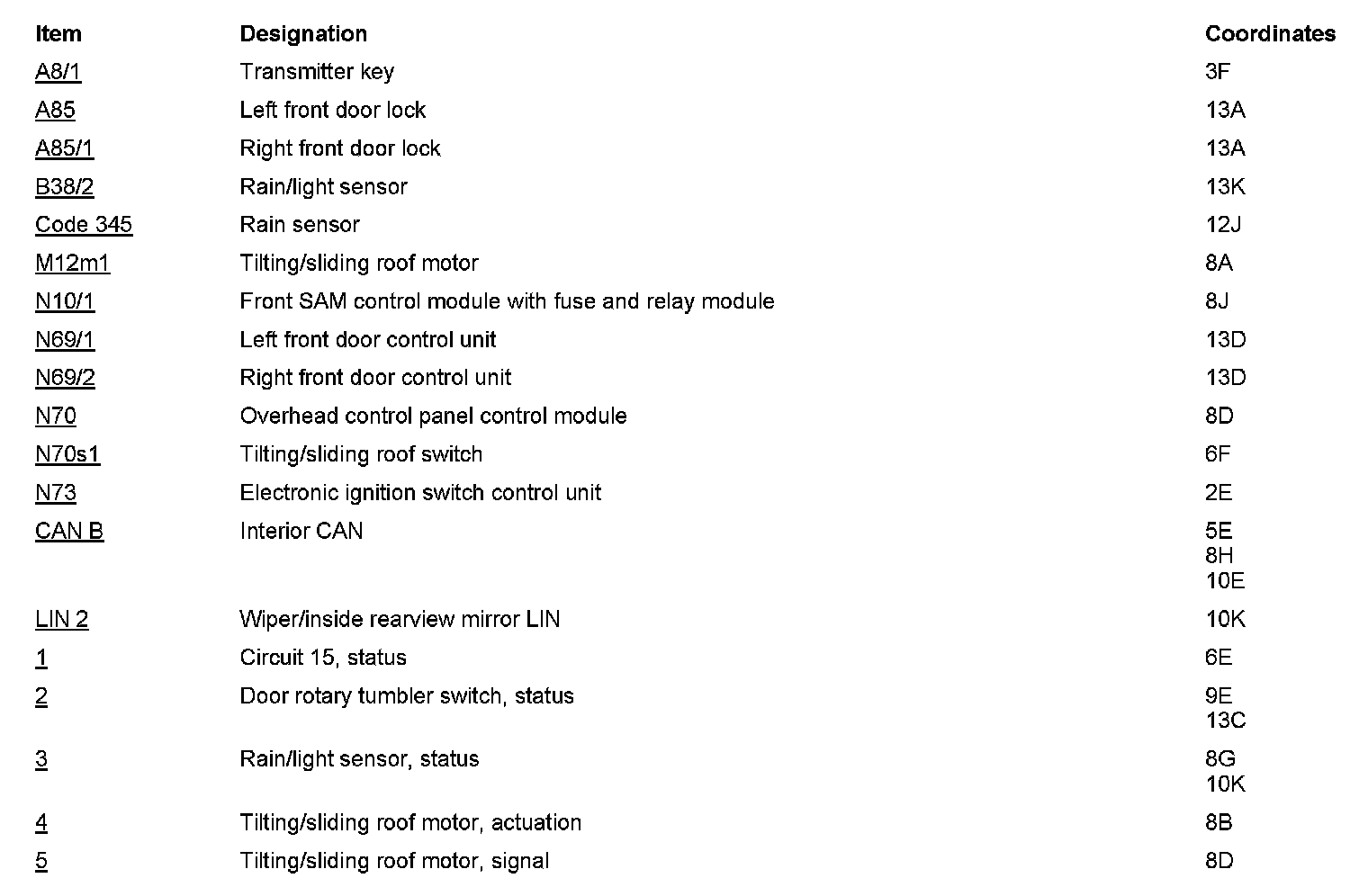

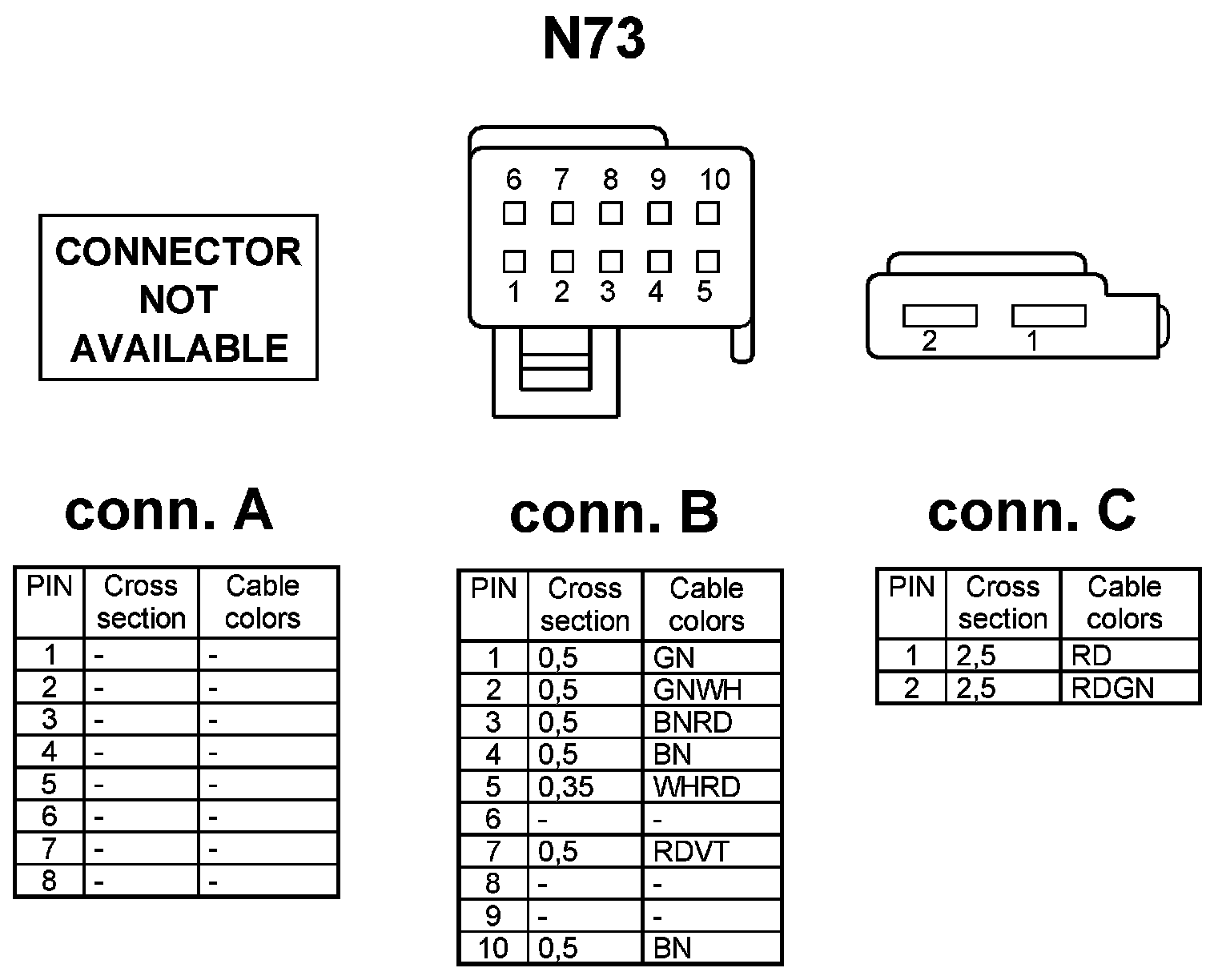

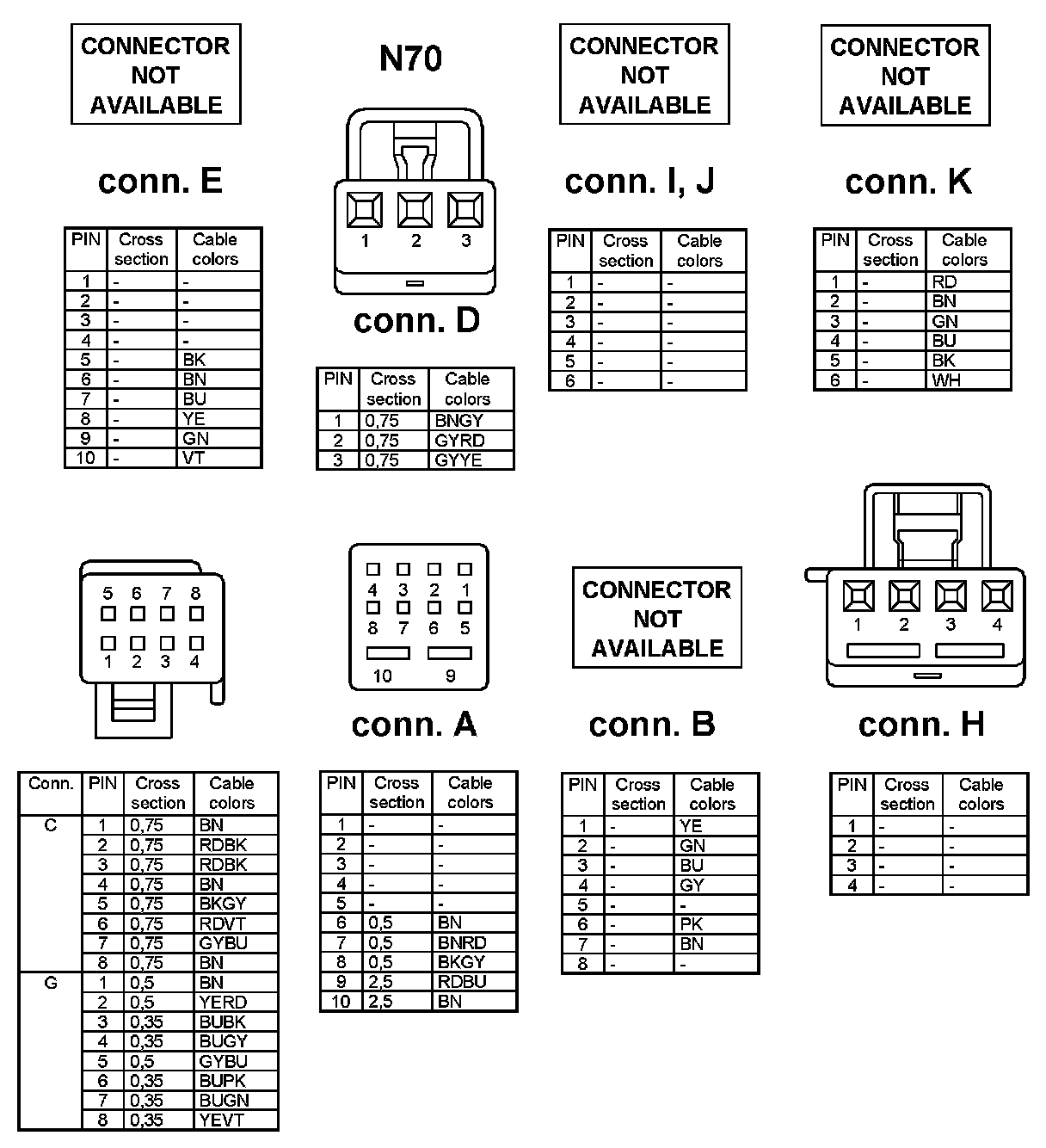

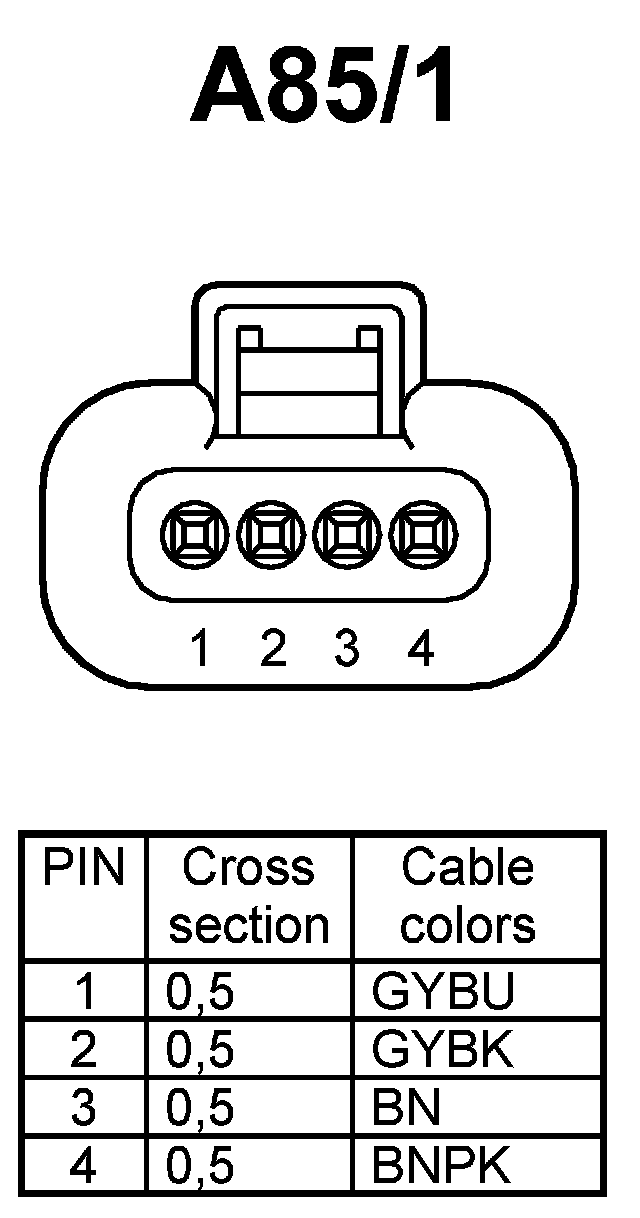

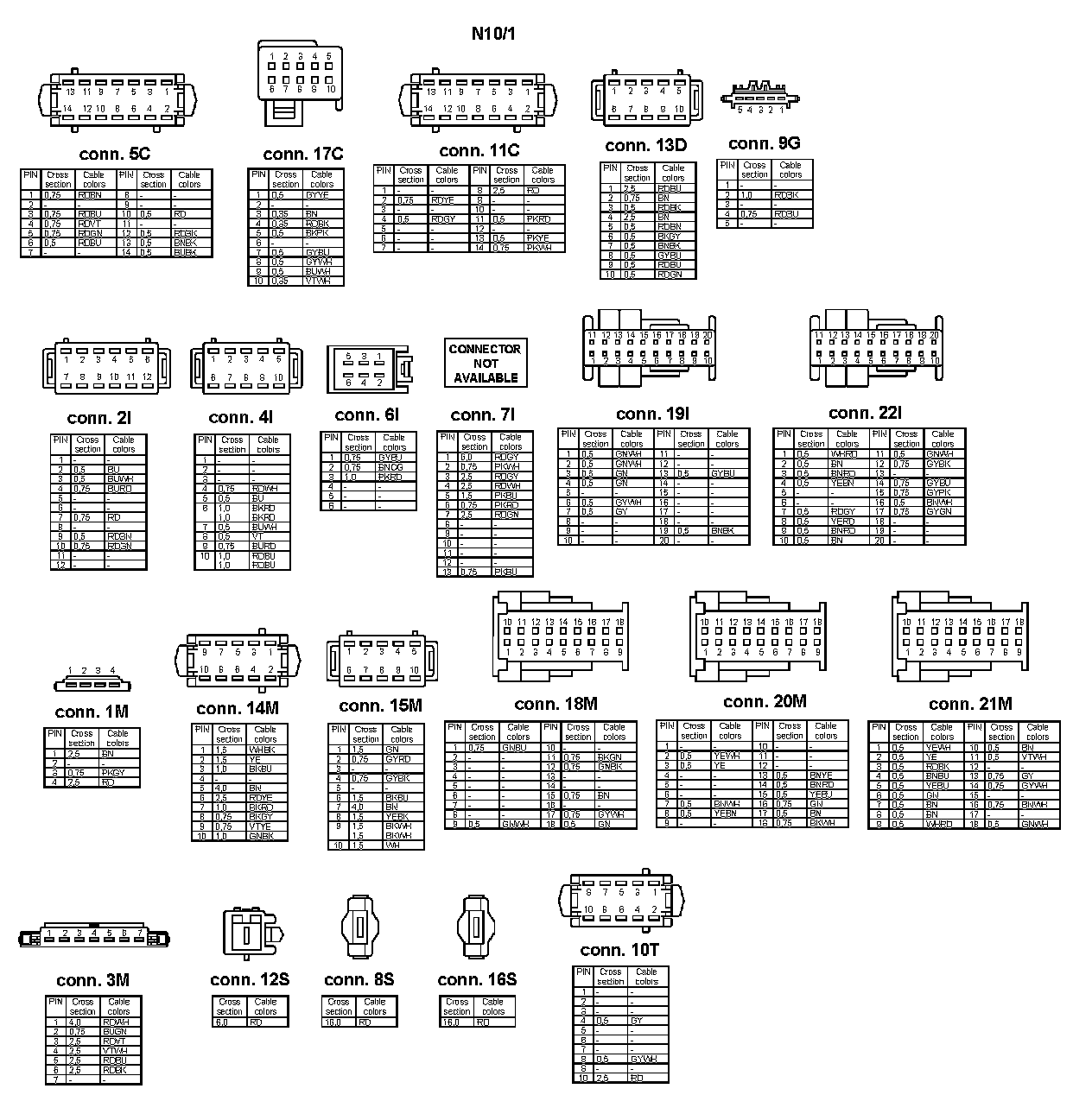

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
