Mercedes Benz
>>
2008
>>
C 300 4MATIC (204.081) V6-3.0L (272.948)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Relays and Modules - Wiper and Washer Systems
>>
Wiper Relay
>>
Locations
Wiper Relay: Locations
Tailgate Windshield Wiper Relay

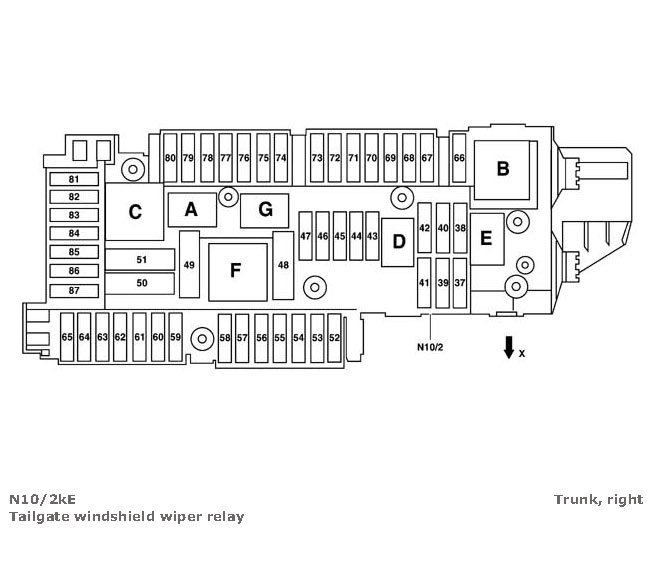

Tailgate Windshield Wiper Relay (View 1):

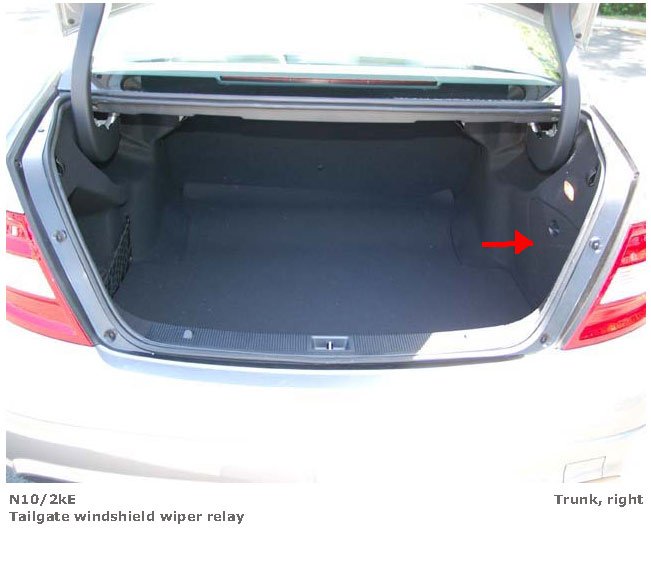

Tailgate Windshield Wiper Relay (View 2):

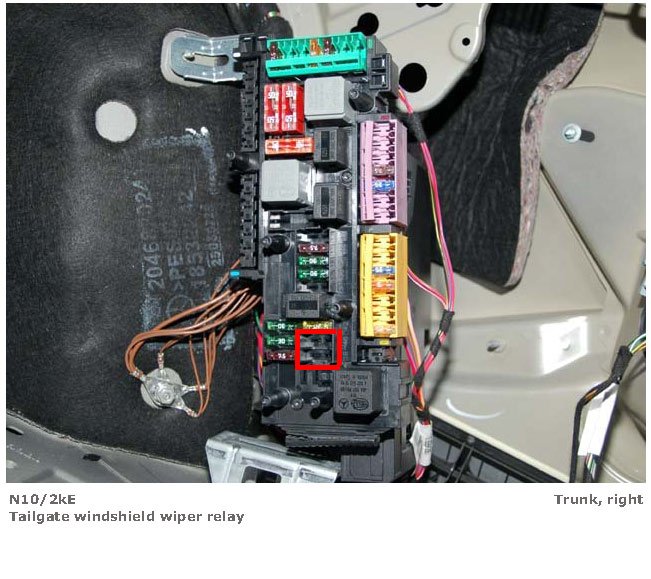

Tailgate Windshield Wiper Relay (View 3):
