AR67.10-P-1000-08CW Apply Adhesive Material

AR67.10-P-1000-08CW Apply Adhesive Material

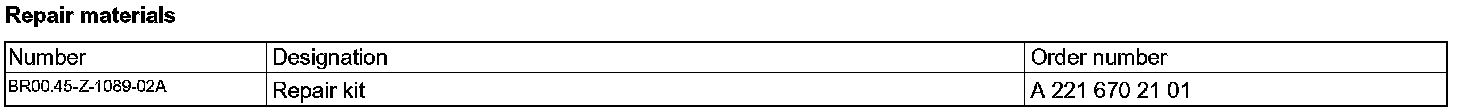

Repair Materials:

Install windshield on body flange within 10 minutes after applying adhesive material, otherwise adhesive force of glue starts to decrease.

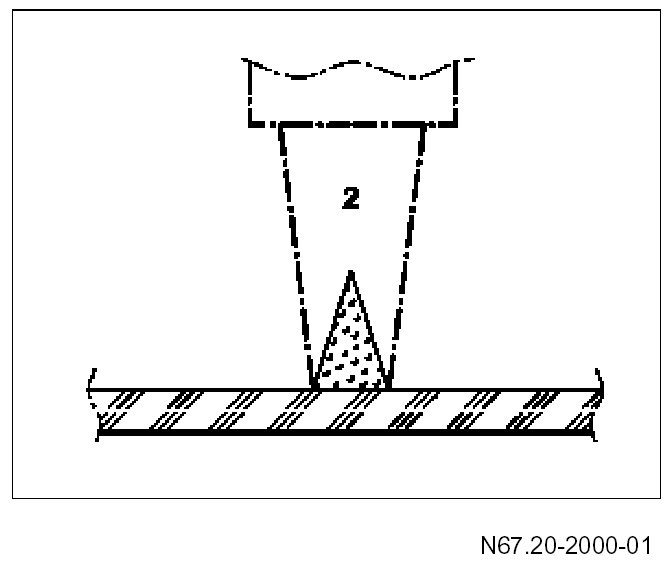

1. Guide application nozzle (2) along bonding surface on windshield or along glue residues on body flange.
Cartridge gun

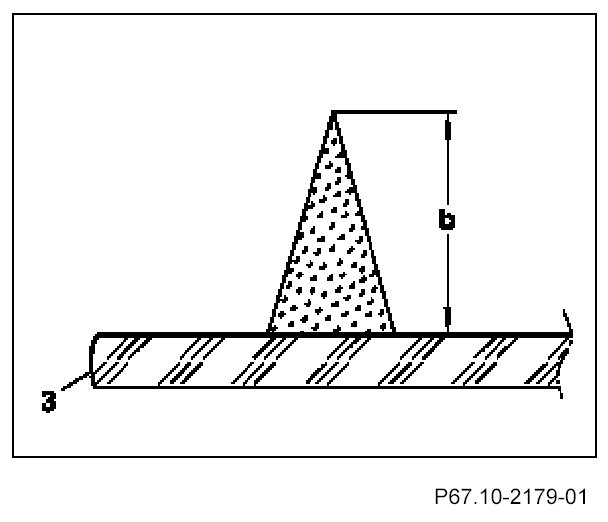

2. Uniformly apply adhesive bead to windshield (3) at a height (b) of approx. 13 mm.
Completely press out adhesive material not required immediately following application (disposal).
