AR67.10-P-1000-03CW Prepare Window For Installation

AR67.10-P-1000-03CW Prepare Window For Installation

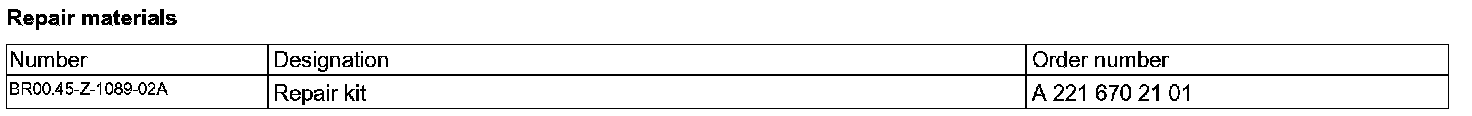

Repair Materials:

The gluing area on the window must be absolutely free of dust and grease to prevent paint adhesion problem of the adhesive material when glazing.

1. Check window for scratches and damage, replace if necessary.
2.1. Cut off residual adhesive material of window with scraper down to a height of approx. 2 mm. Remove adhesive material residues.
When reinstalling removed window.

2.2. Clean gluing area on window using cleaner from repair kit and rub dry with rag.
When installing a new window.
Observe processing instructions for primer to prevent adhesion problems with the adhesive material when installing the window.

3.1. Repair damaged primer layer on window with primer included in repair kit.
When reinstalling removed window.

3.2. Coat gluing area on window with primer included in repair kit (with max. 20 mm).
When installing a new window.
Windshields are generally delivered with a viewing window on the bottom left. If the viewing window is not required, coat this area on the inside of the window with primer.
