Window Shade: Diagrams

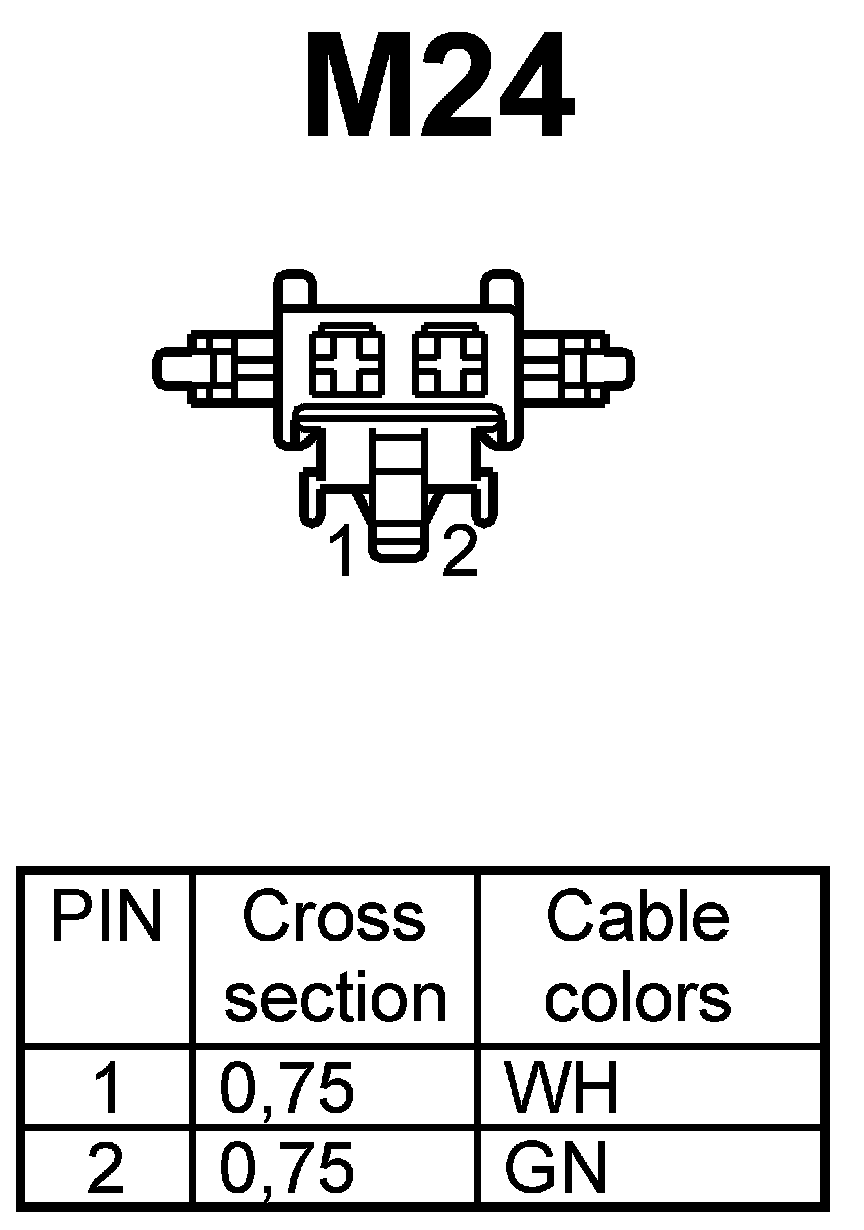

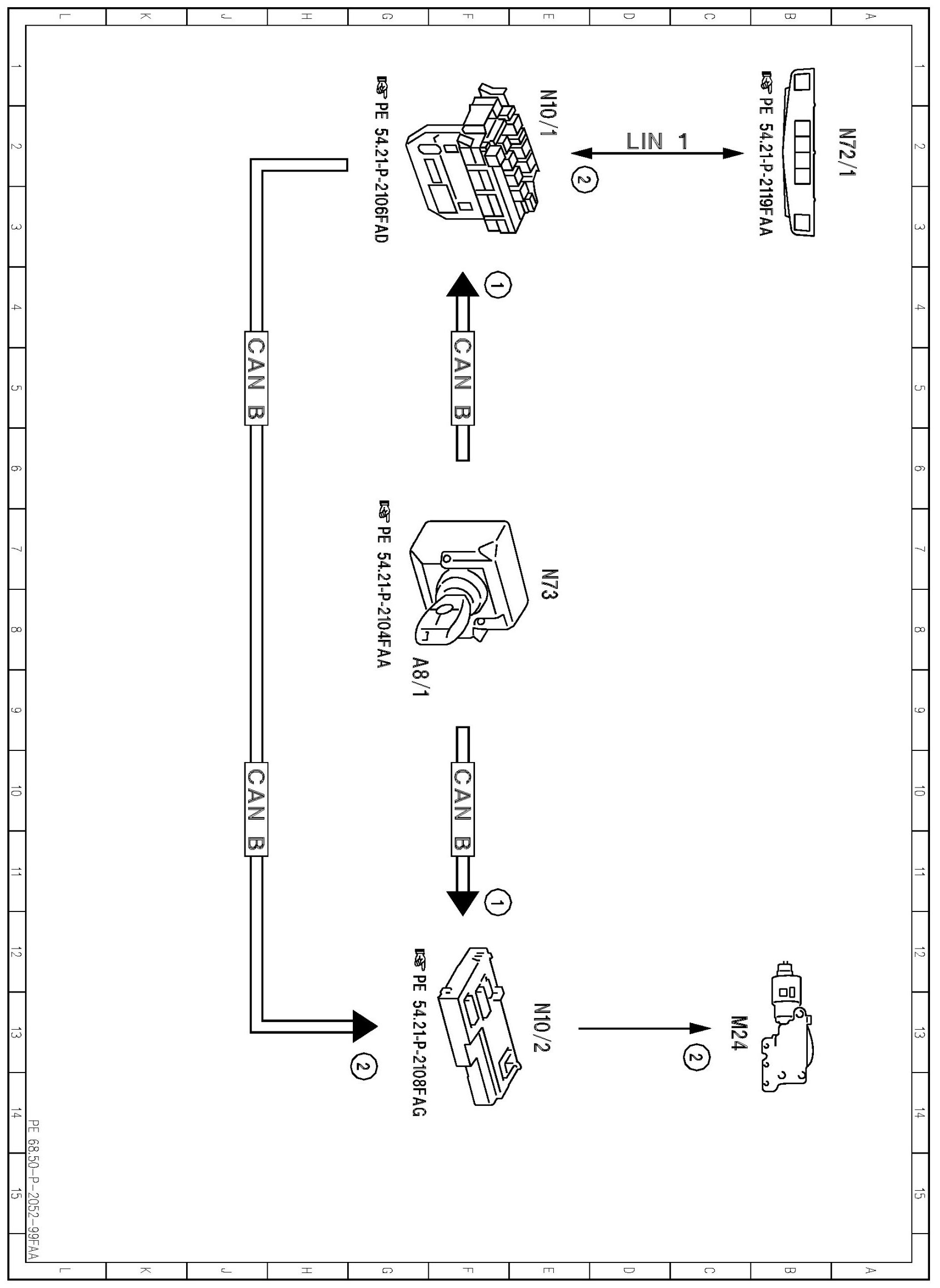

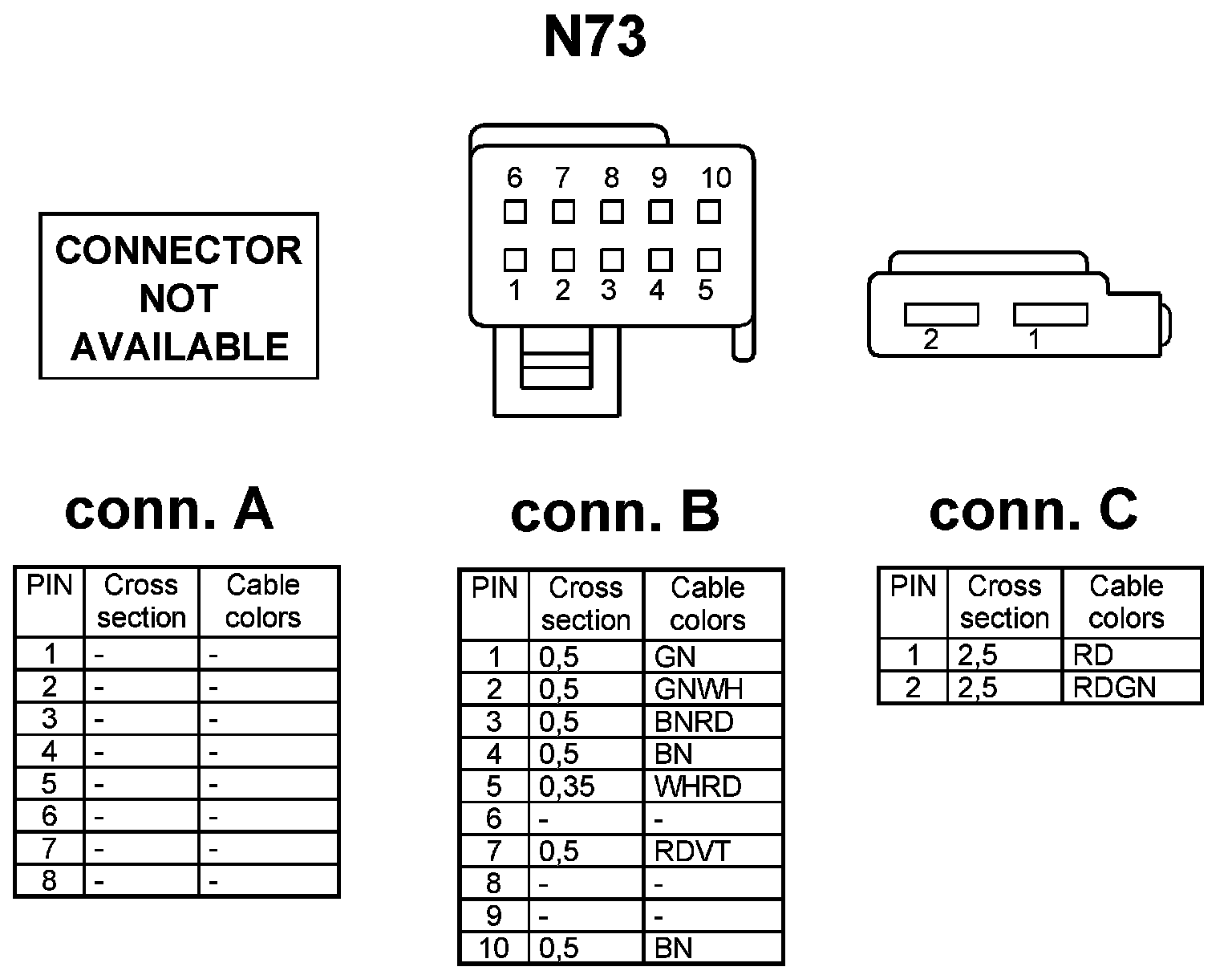

PE68.50-P-2052FAA Electrical Function Schematic For Roller Sun Blind

MODEL 204.0
- with Code (540) Roller sun blind
- up to model year 08 /YoM 07































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
