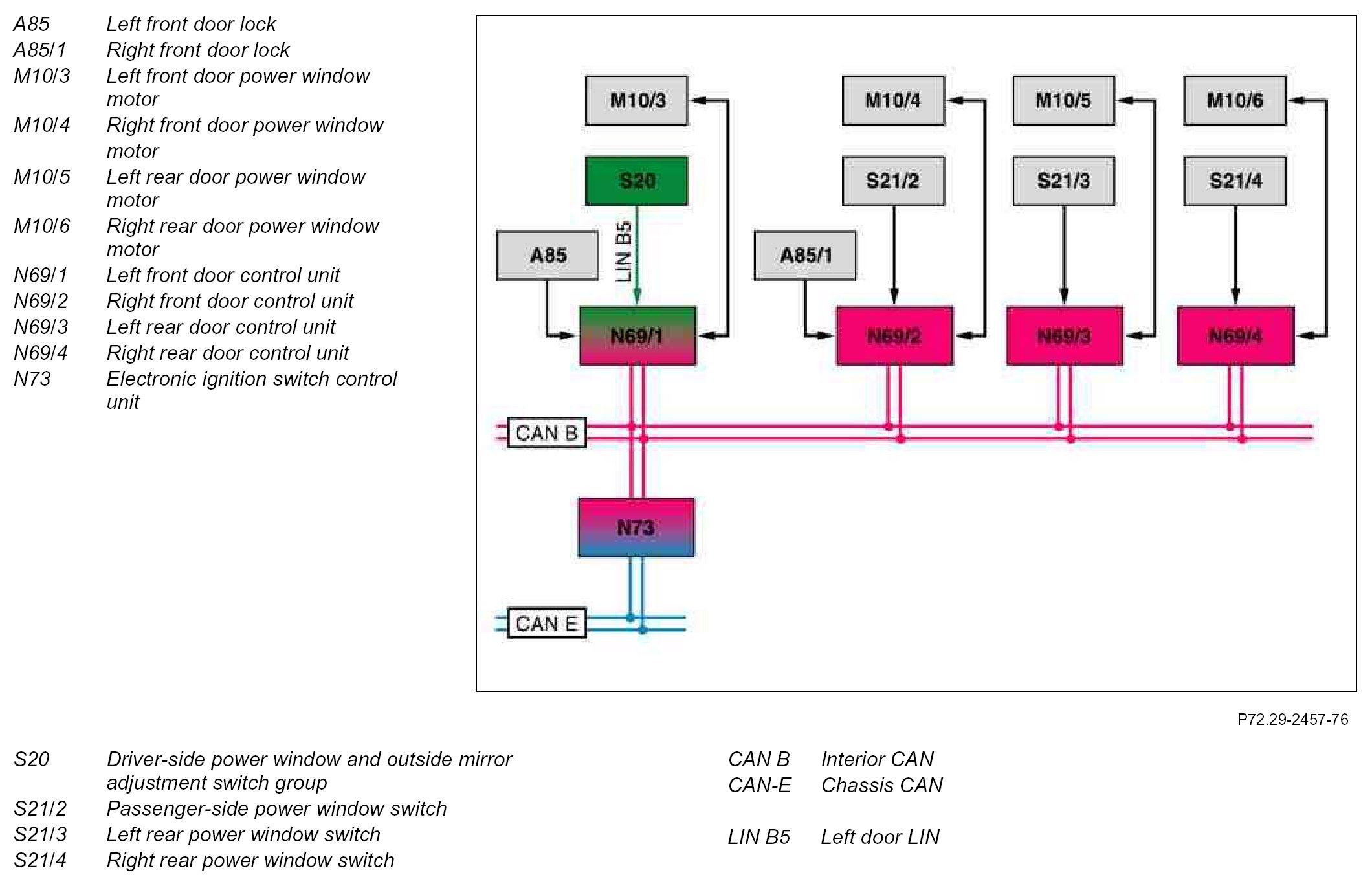

GF72.29-P-0003-03CW Power Window (PW), Block Diagram
GF72.29-P-0003-03CW Power Window (PW), Block Diagram
GF72.29-P-0003-03CW Power Window (PW), Block Diagram
- up to model year 08
Component Identification:
