AR03.30-P-8001QB Remove/Install Flywheel / Drive Plate



AR03.30-P-8001QB Remove, install flywheel / drive plate

Component Identification:

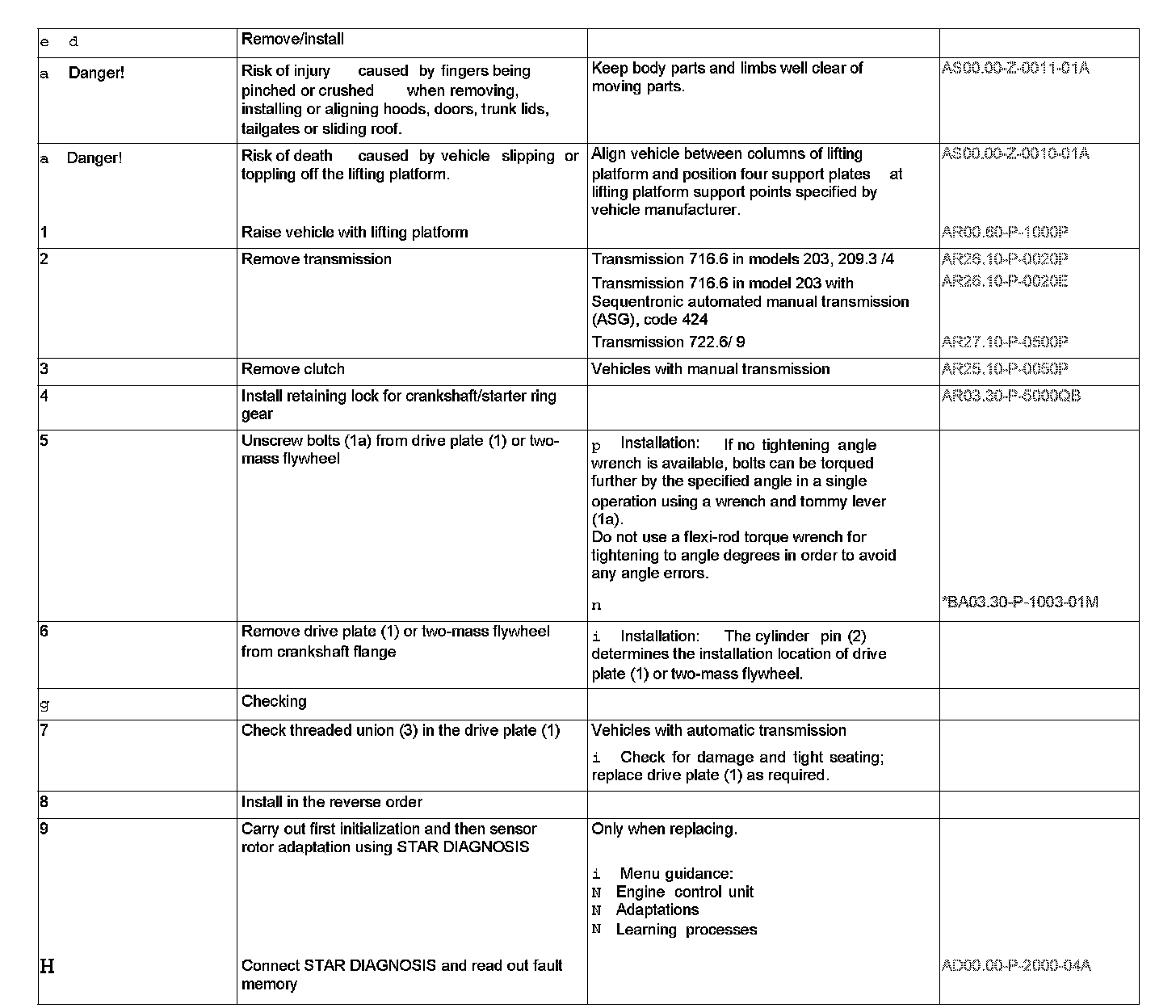

Steps 1 - 9:

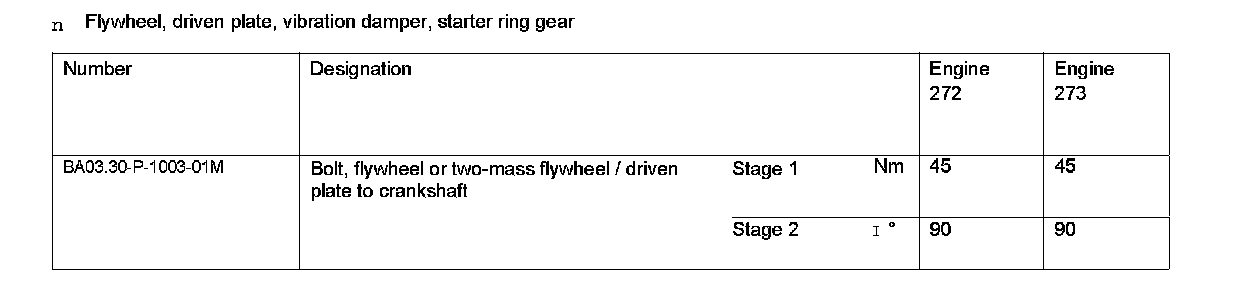

Flywheel, Driven Plate, Vibration Damper, Starter Ring Gear:
