GF27.60-P-5163CW Electronic Selector Lever Module Control Unit, Component Description

GF27.60-P-5163CW Electronic selector lever module control unit, component description
- TRANSMISSION 722.6/9

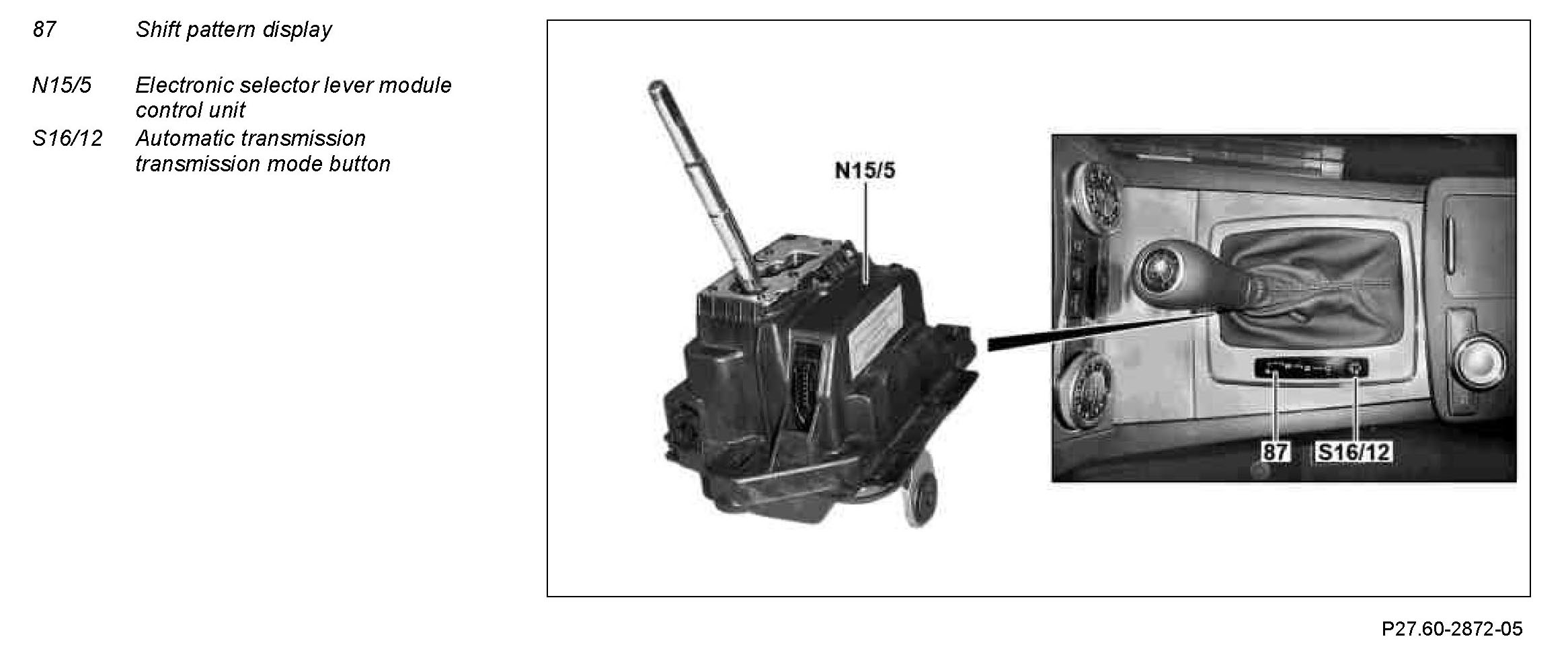

Component Identification:

Location
The electronic selector lever module control unit is located in the center console of the vehicle.

Task
The electronic selector lever module control unit receives analog and digital signals, actuates various components based on theses signals and makes available the corresponding information about the drive train CAN to various control units.

The selector lever positions and touch shifts carried out are detected in a non-contact manner by means of optoelectronic switches. A photoelectric barrier is closed or interrupted each time the position of the selector lever is changed.

Internal input signals:
^ Selector lever position
^ Status, automatic transmission transmission mode button
^ Touch button +/-
^ Power supply

Internal output signals:
^ R/P locking solenoid
^ Terminal 58d (gate illumination)

The following information is received via drive train CAN
^ Transmitted from instrument cluster (A1)
- Terminal 58 dimmed
^ Transmitted from Electronic Stability Program control unit (N30/4)

Wheel speed and left rear direction of rotation
Wheel speed and right rear direction of rotation
- Adjusted braking torque

^ Transmitted from electronic ignition lock control unit (N73)
- Terminal 50 - Terminal 15
- BAS release switch status(A7/7s1)
- Stop lamp actuation feedback
- Drive authorization system, stage 3 (DAS 3) message
- Diagnosis request
^ Transmitted from steering column module control unit (N80)
- Status of steering wheel downshift button (S110/1), with code (428) Steering wheel shift buttons and steering wheel upshift button (S111/1), with code (428) Steering wheel shift buttons

The following information is transmitted via drive train CAN
^ To the instrument cluster
- Selector lever position for the gear indicator (A1p12)
- Status of automatic transmission transmission mode button for the transmission mode display (A1p16)
^ at the CDI control unit (N3/9)
- Selector lever position, P/N
^ at the ME-SFI [ME] control unit (N3/10)
- Selector lever position, P/N
^ at the electronic ignition lock control unit
- Selector lever position for reversing lamp actuation
- BS 3 messages (approval request)
- Diagnosis request
^ at the electronic transmission control control unit (N1513)
- Selector lever position
- Status of automatic transmission transmission mode button
