Body - Wheel Well/Bumper Corrosion Protection Material

Date: December 21, 2007

Order No.: P-B-63.50/14

Supersedes:

Group: 63

SUBJECT:
Model 204.054/056/081

Corrosion Protection Material at Transition from Wheel Well to Bumper

If the corrosion protection material between the wheel well to bumper on the above models vehicles needs to be replaced, follow the below procedure.

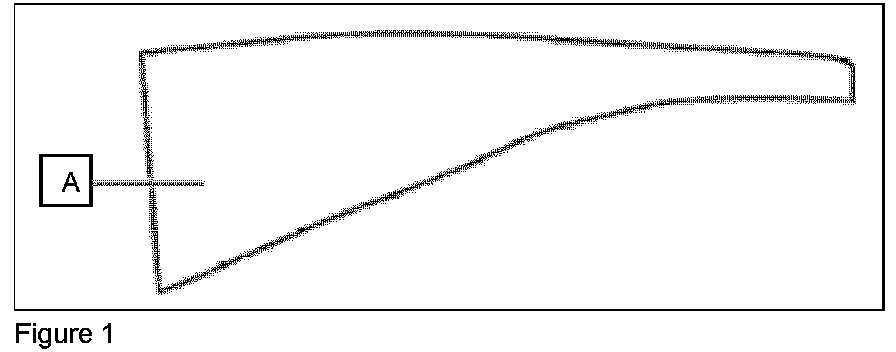

1. Refer to the template for the contour of the chafe protection (Figure 1).

2. Transfer the pattern/template from Figure 1 to the adhesive foil and cut out the contour.

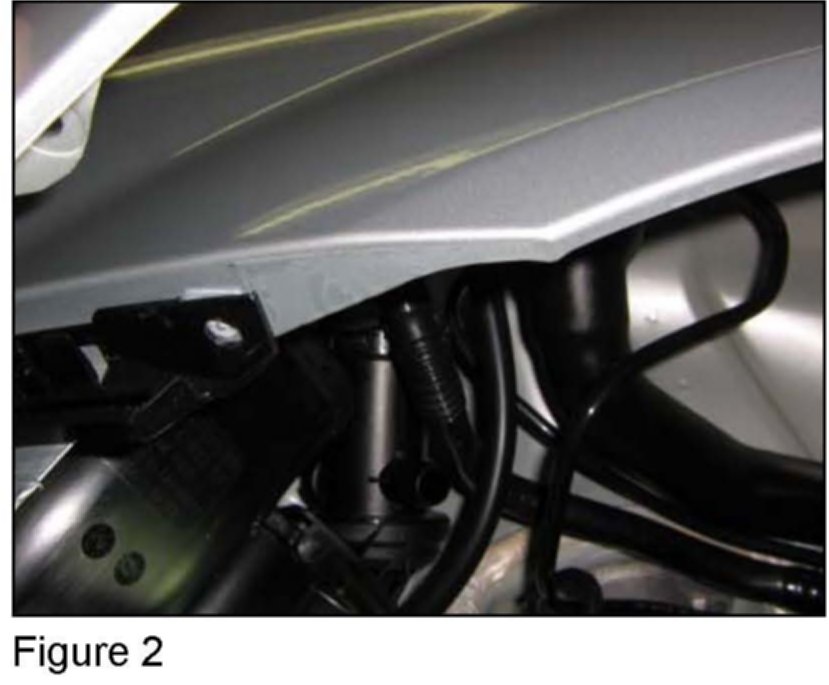

3. Clean the surface then apply adhesive foil chafe protection at transition from the wheel well to bumper (Figure 2).

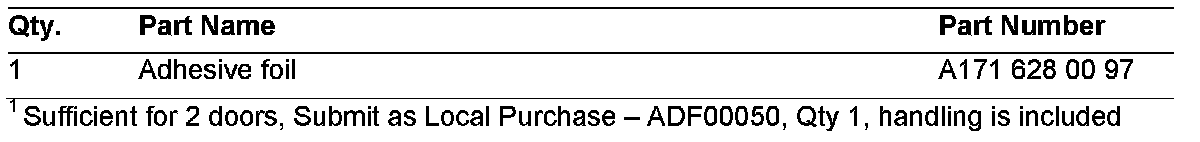

Parts Information
