Suspension - Vehicle Sits Too Low In Front

Date: June 1, 2009

Order No.: P-B-32.20/80

Supersedes:

Group: 32

SUBJECT:
Model 204.081, Equipped with Sports Package (Sales Code 952)

Low Vehicle Ride Height

If you receive customer reports in the above model vehicles of low ride height at the front axle, check the vehicle level at the front axle with an electronic inclinometer. Reference WIS document AR40.20-P-0301CW. If the vehicle level is outside the specified tolerance, the vehicle level must be adjusted by replacing the springs. Reference EPC for the correct spring part number based upon build configuration.

Note:
In some cases a vehicle may be assembled with spring part number A204 321 22 04, which can be identified by three stripes, two yellow and one white, whereas EPC identifies the build configuration spring as part number A204 321 23 04 identified by 4 stripes, three red and one white. Due to specification overlaps, either spring may have been used in series production vehicles.

Note:

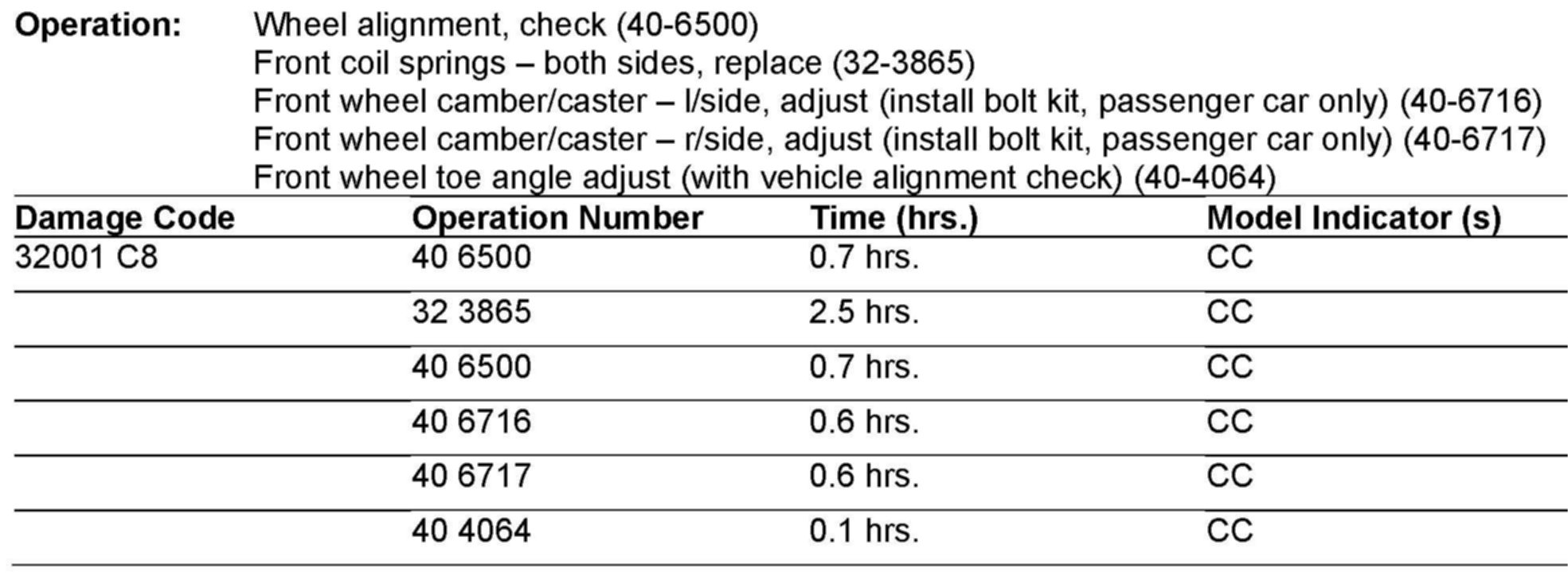

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on June 1, 2009. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.





In Case of Warranty, use the table above.
