GF46.20-P-5137CW Steering Gear of Rack-and-Pinion Steering, Component Description

GF46.20-P-5137CW Steering gear of rack-and-pinion steering, component description
- except CODE (213) Speed-sensative power steering

Location

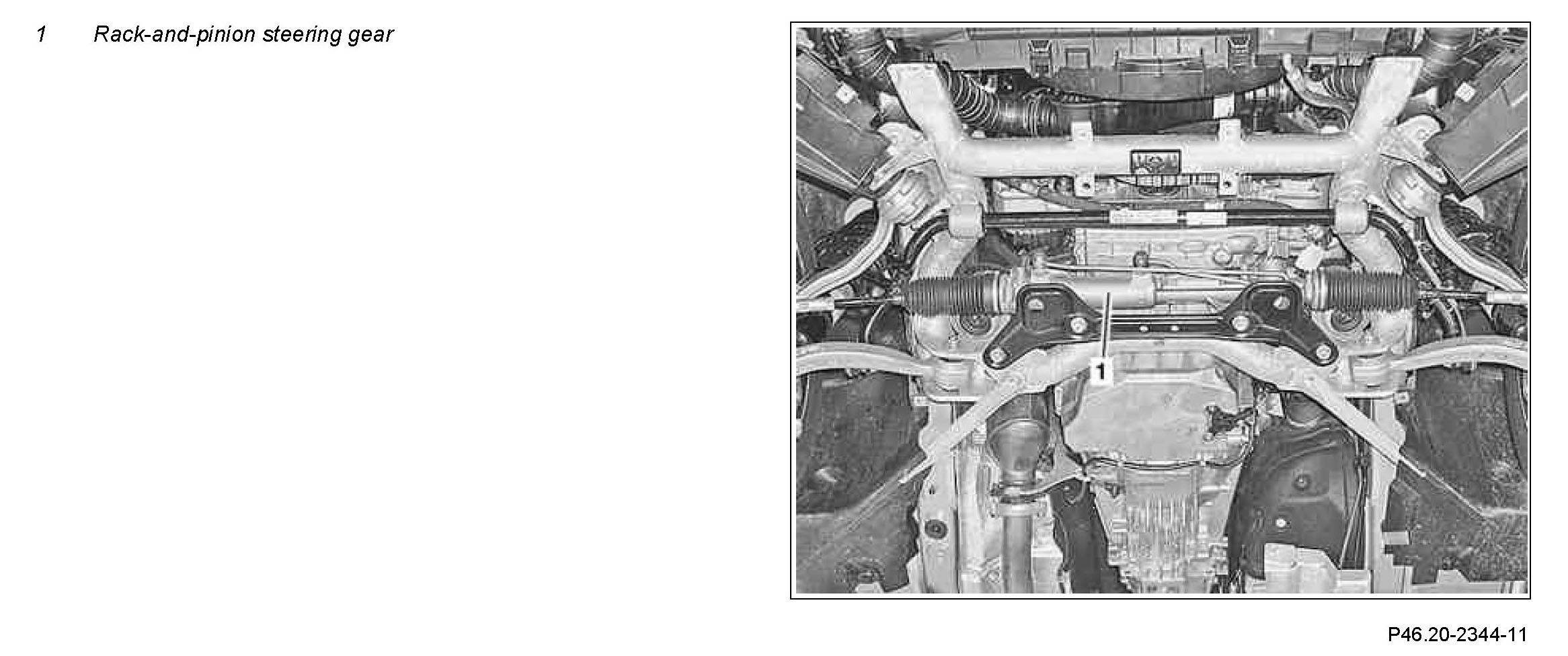

The steering gear is mounted rigidly to the front axle's frame-type integral support.

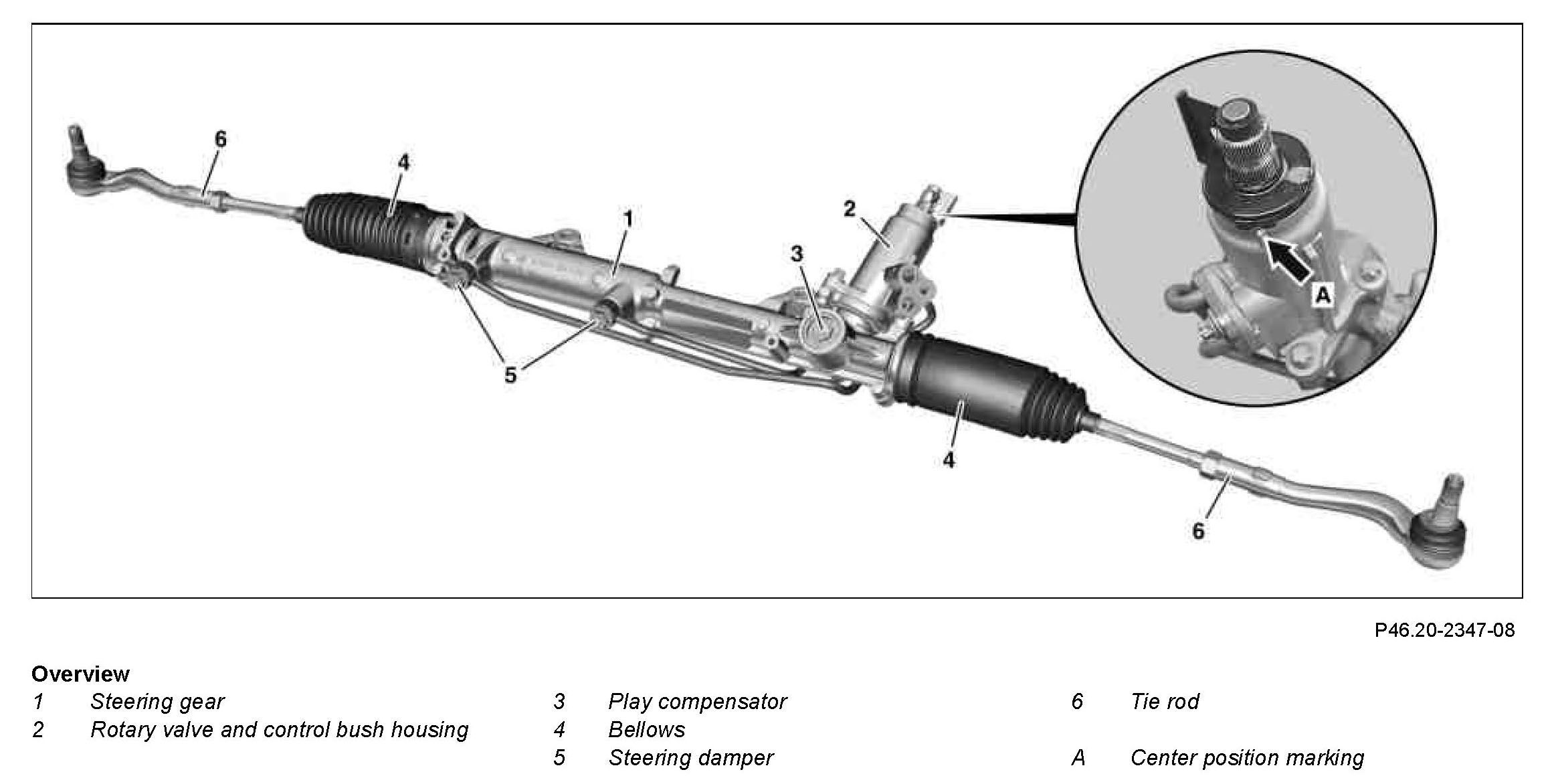

Component Identification:

The rack-and-pinion steering gear enables the following functions to be performed:
^ Transfer of steering movement
^ Steering assistance control
^ Play compensator
^ Steering damping

Component Identification:

Transfer of steering movement
The drive pinion (1a) transmits the movement of the steering wheel to the toothed rack (1b) and then via the tie rods to the wheels.

The drive pinion has spiral splines. Since several teeth are always engaged at the same time, rack and pinion steering gear is wear-resistant and also has a very low noise level.

Steering assistance control
If the steering wheel is turned, then the drive pinion is supported on the toothed rack. A rotary valve is twisted against the pilot bushing surrounding it via the stabilizer bar and this changes the position of the control grooves in relation to one another.

Component Identification:

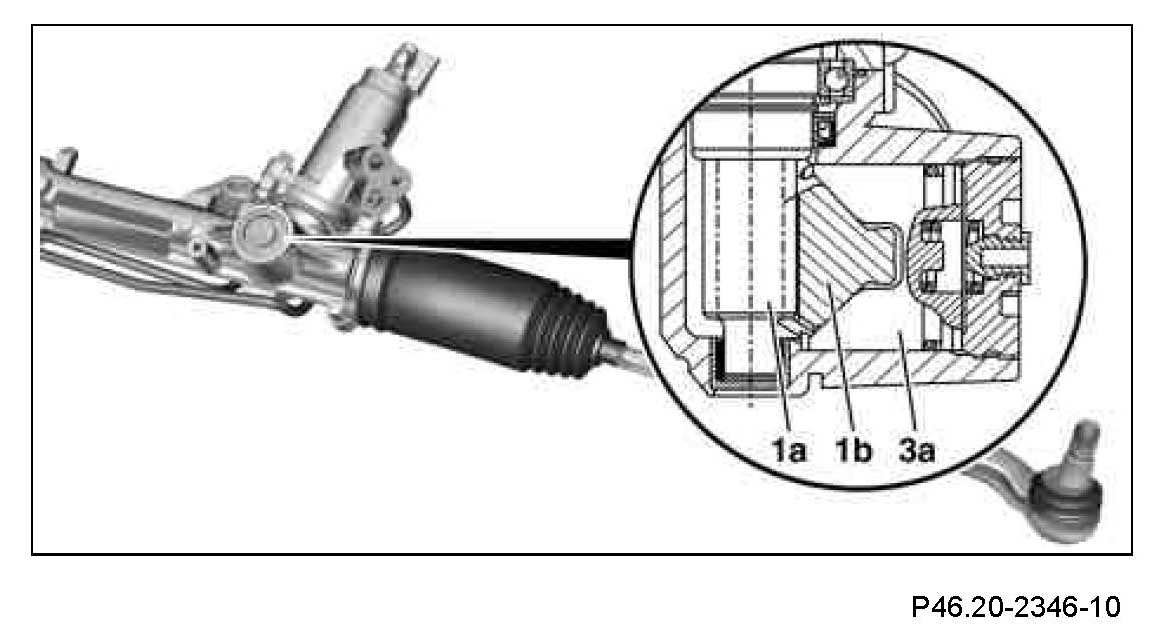

Play compensator
The thrust piece (3a) ensures that the drive pinion (1a) and toothed rack (1b) mesh without any play.

Engine ON
Because the hydraulic steering assistance starts immediately, no steering play is noticeable.

Engine OFF
When steering, only a slight, gradually increasing torque is noticeable for a travel distance of approx. 50 mm. This is due to the slewing range of the torsion bar in the rotary valve and should not be confused with play in the rack-and-pinion steering gear. Only when the steering wheel is turned further does the drive pinion begin to roll across the toothed rack, this can be felt on the steering wheel in the form of a slight pressure point and a more rapid torque increase.

Now the oil flow is supplied by the power steering pump to the right working cylinder (left steer) (I) or the left working cylinder (right steer) (II) and supports the axial movement of the toothed rack to the right or left.

Component Identification:

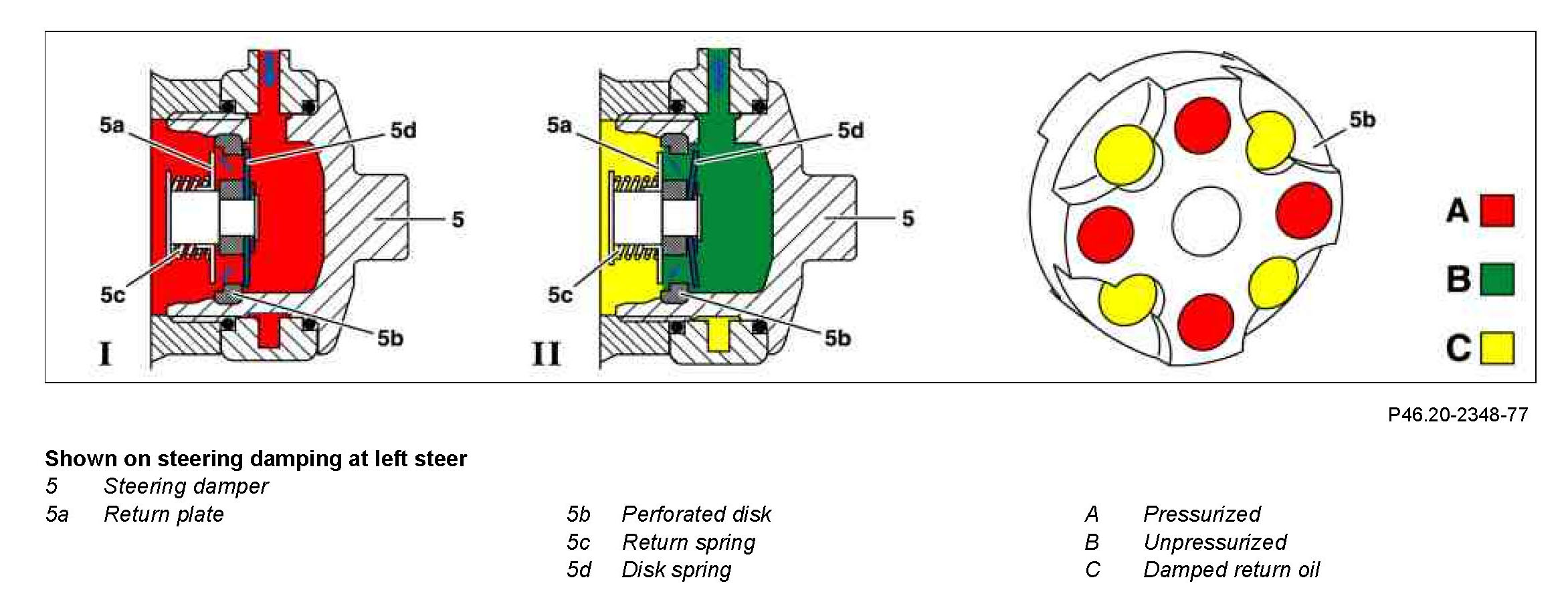

Pressurized steering damper (I)
Through 4 holes in the perforated disk the high-pressure oil is routed unthrottled at the return stroke plate against the force of the return stroke spring to one of the working cylinders.

Dampened return pressure (II)
The oil flowing out of the opposite working cylinder is forced into the perforated disk via 4 further bores. As a result the disk spring is pressed on and the oil is delivered into the return line. This restricted pressure provides the required damping effect.
