GF54.15-P-1256-03CW Fuse Assignment of Fuse and Relay Box In Left Engine Compartment

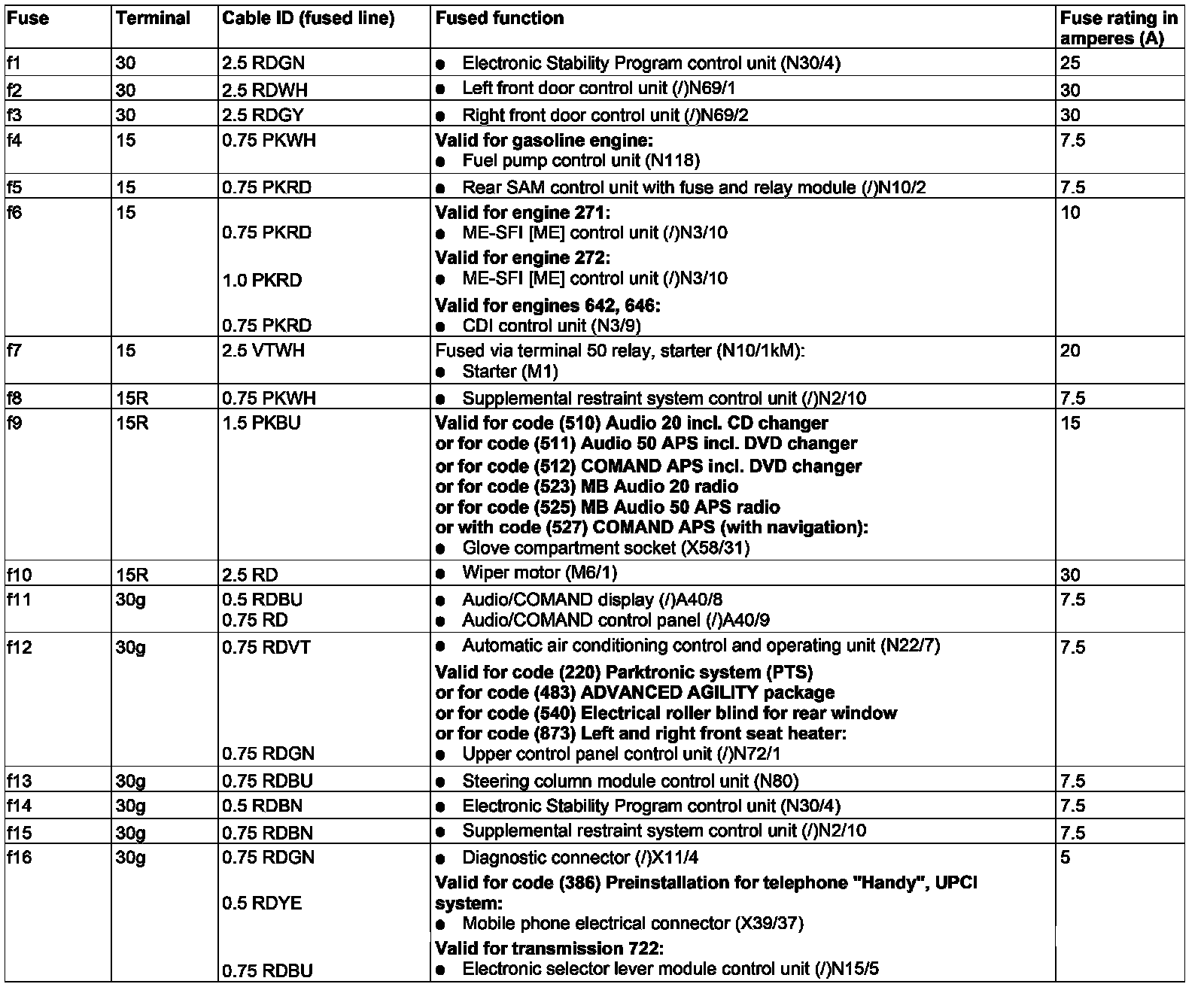

GF54.15-P-1256-03CW Fuse assignment of fuse and relay box in left engine compartment
- up to model year 08

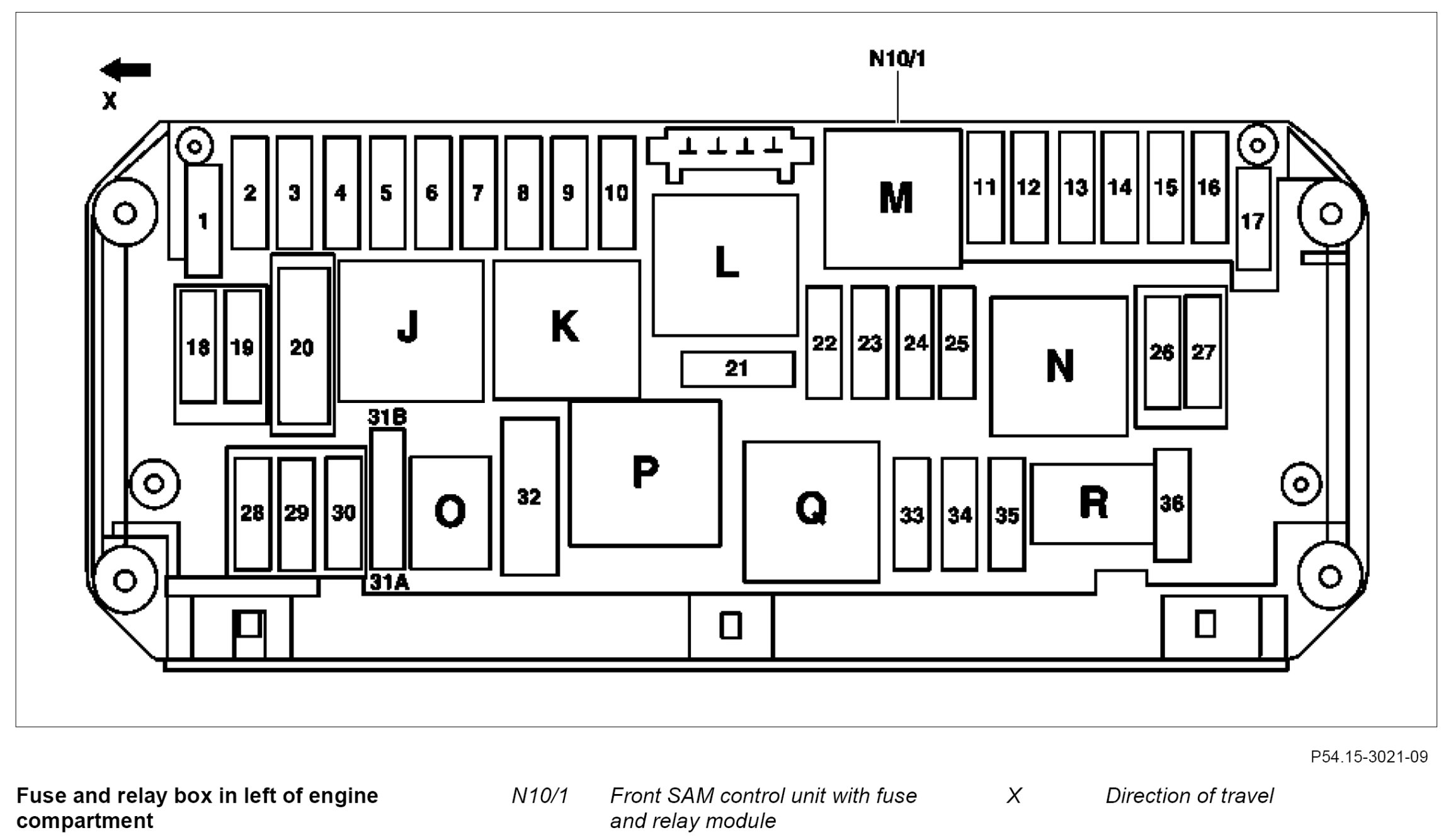

Component Identification:
