Wheel Stud / Lug Nut
>>

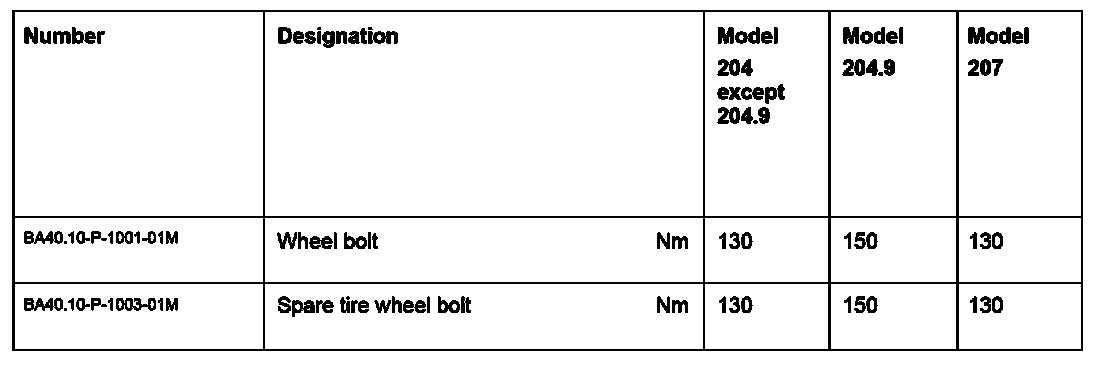

AR40.10-P-4050CW Wheel Lug Bolts
AR40.10-P-4050CW Wheel Lug Bolts
AR40.10-P-4050CW Wheel Lug Bolts

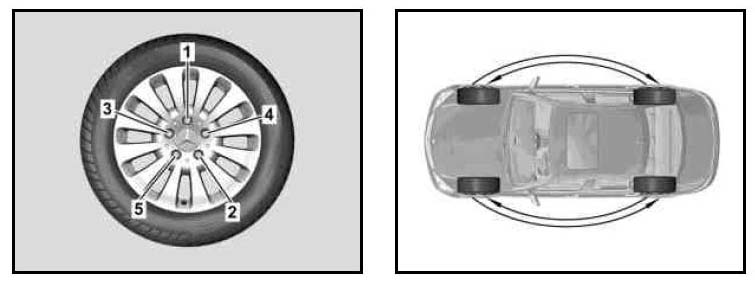

Tightening sequence and rotation pattern:
