Mercedes Benz
>>
2008
>>
C 300 4MATIC (204.081) V6-3.0L (272.948)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Body and Frame
>>
Power Seat Switch
>>
Locations
>>
Seat Adjustment Switch Group, Left, Front
Seat Adjustment Switch Group, Left, Front

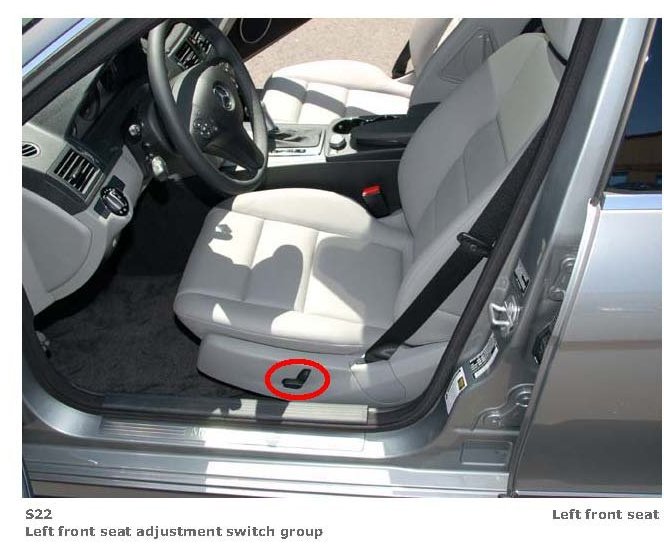

Left Front Seat Adjustment Switch Group (View 1):

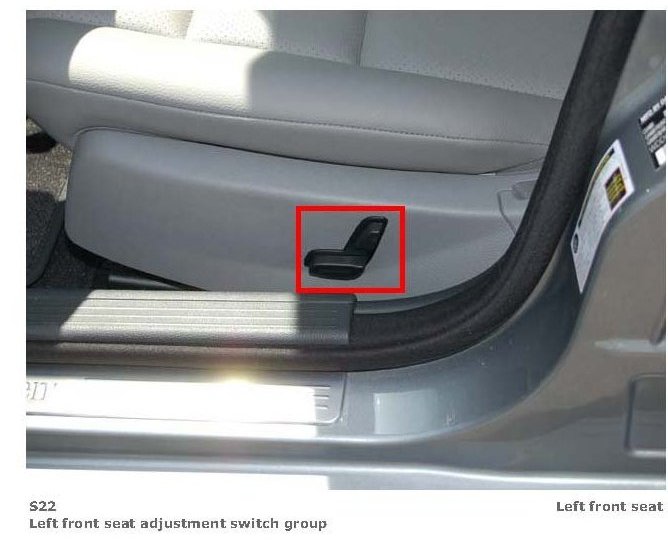

Left Front Seat Adjustment Switch Group (View 2):
