Seat Belt Tension Sensor: Description and Operation

GF91.60-P-4108CWU Belt Tension Sensor, Component Description
- with CODE (494) USA version

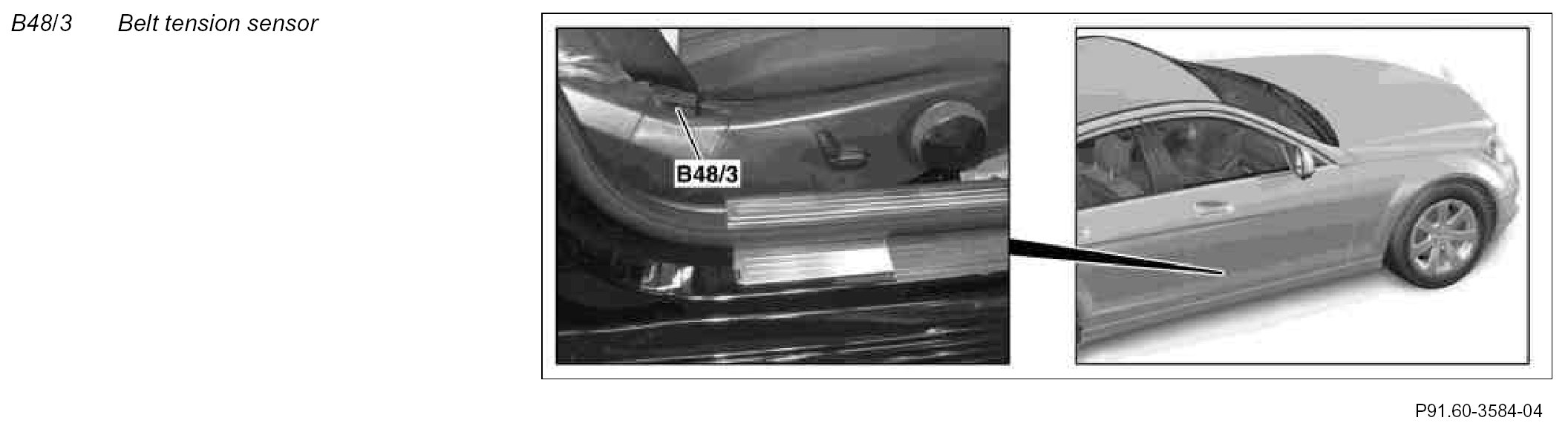

Component Identification:

Location
The belt tension sensor is located on the front passenger seat belt end fitting.

Task
The belt tension sensor measures the tension of the belt.

The belt tension is used by the Weight Sensing System (WSS) control unit (N110) as a correction factor for weight classification.
