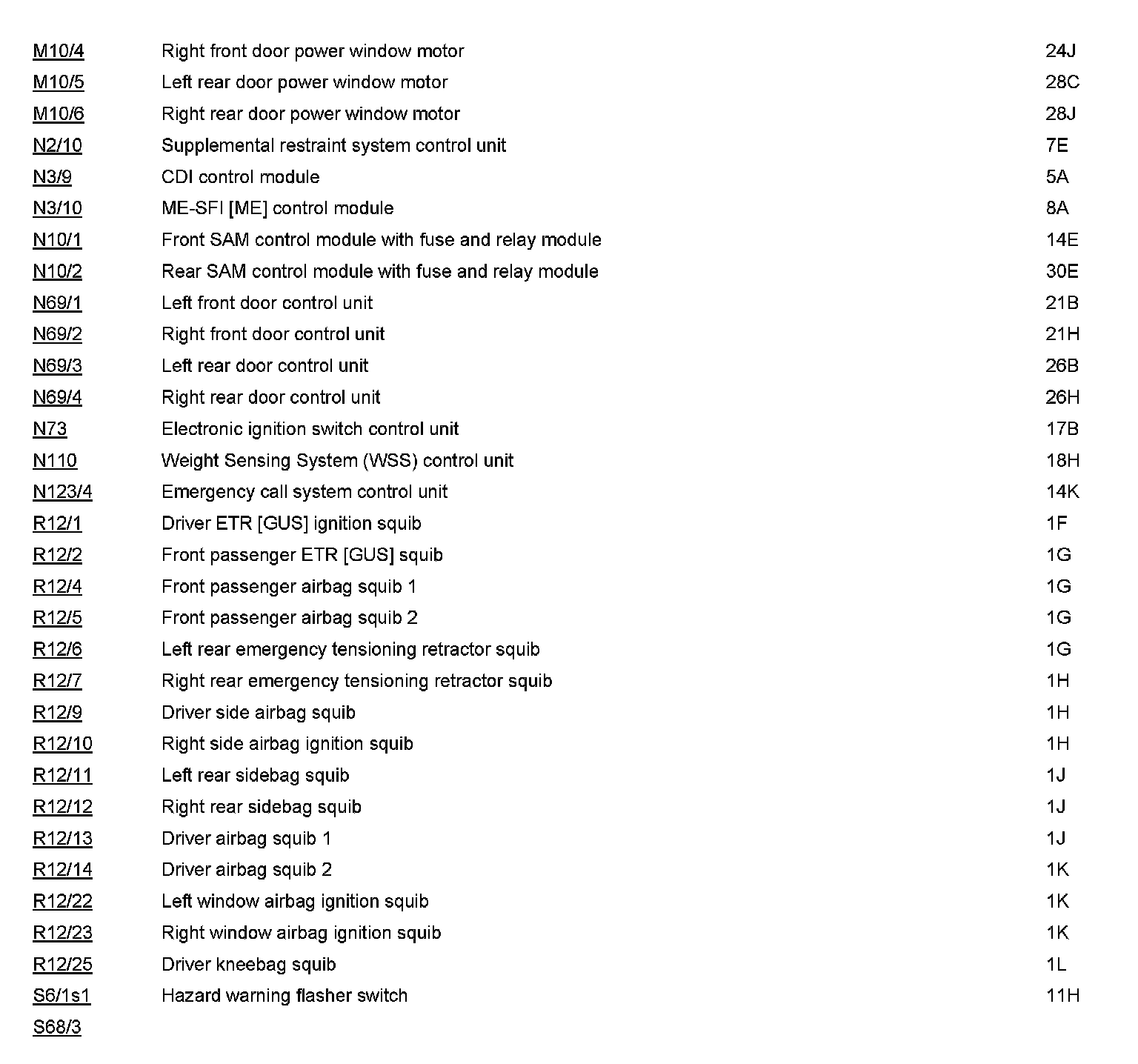

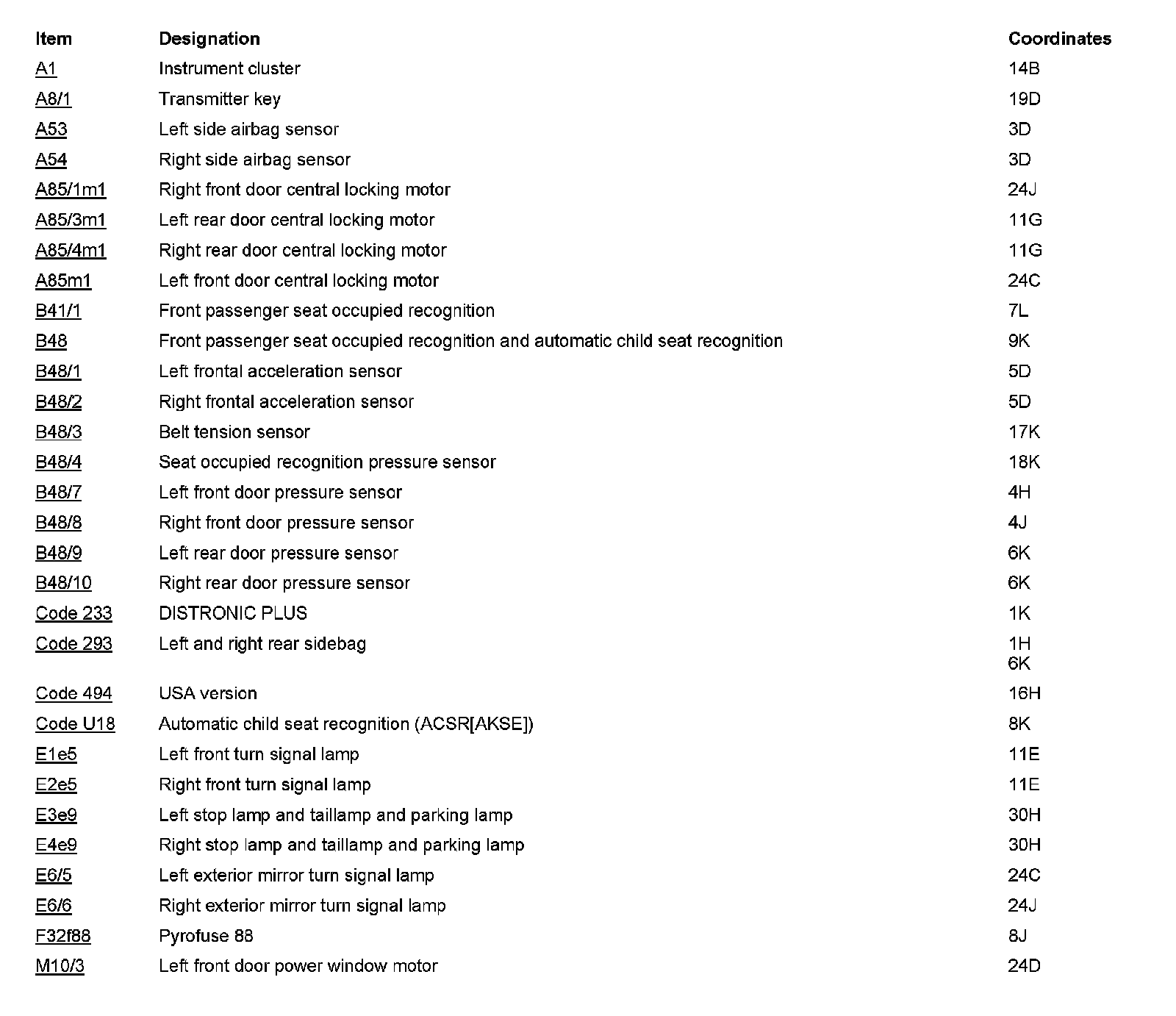

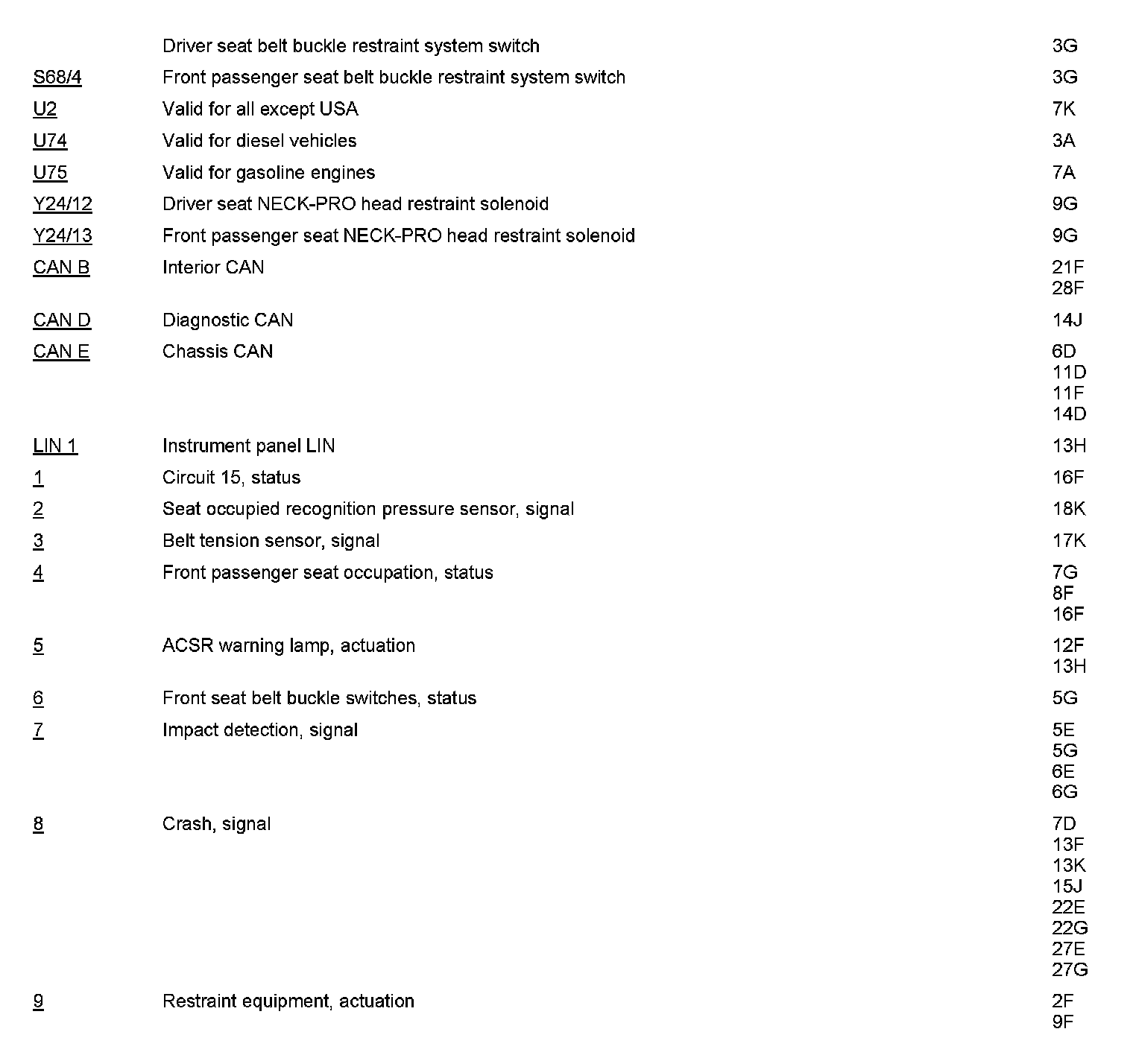

PE91.60-P-2052FAA Electrical Function Schematic, Supplemental Restraint System (SRS)

PE91.60-P-2052FAA Electrical Function Schematic, Supplemental Restraint System (SRS)

MODEL 204
- up to model year 08/YoM 07































































































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
