GF91.60-P-4038CW Front Passenger Airbag Component Description



GF91.60-P-4038CW Front Passenger Airbag Component Description

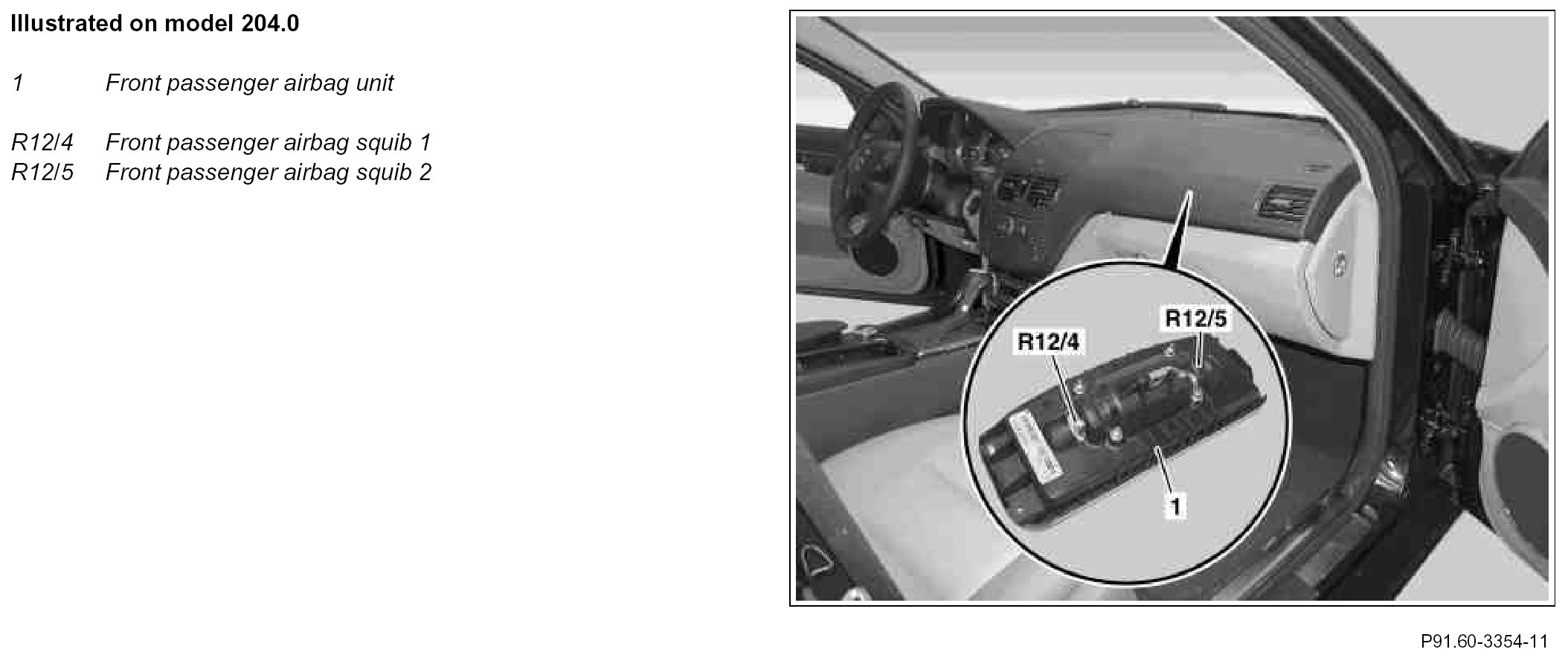

Component Identification:






Location
The airbag unit is located underneath the dashboard above the glove compartment.

Task
The front passenger is protected from injury in the event of a frontal impact by the airbag unit.

The airbag unit is activated in two stages, which permits a controllable deployment. Triggering is conducted by the supplemental restraint system control unit (N2/10) igniting the squibs.
