Home >> Mercedes Benz >> 2008 >> C 300 4MATIC (204.081) V6-3.0L (272.948) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Steering and Suspension >> Relays and Modules - Wheels and Tires >> Tire Pressure Module >> Locations

Tire Pressure Module: Locations

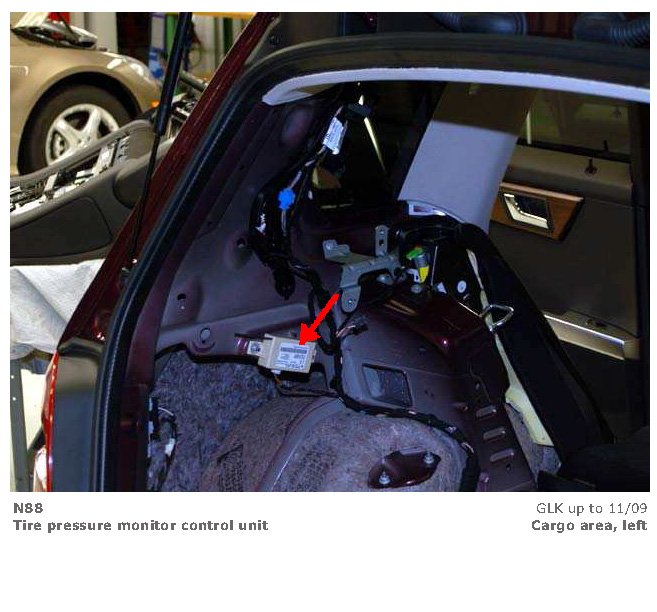

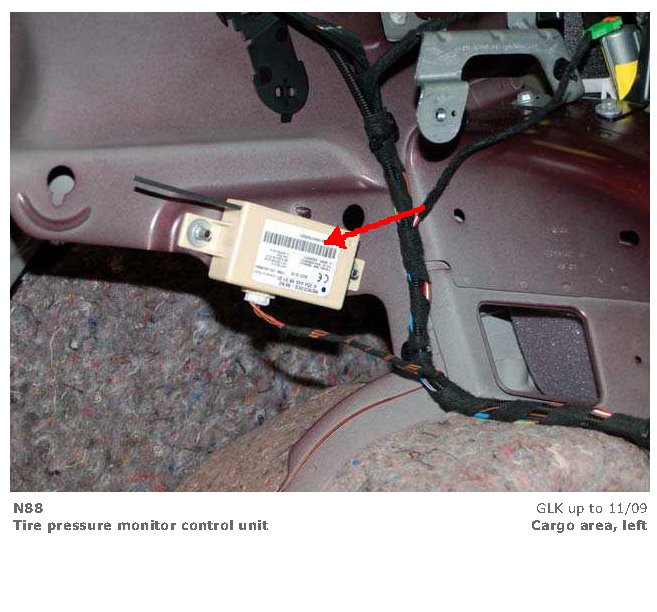

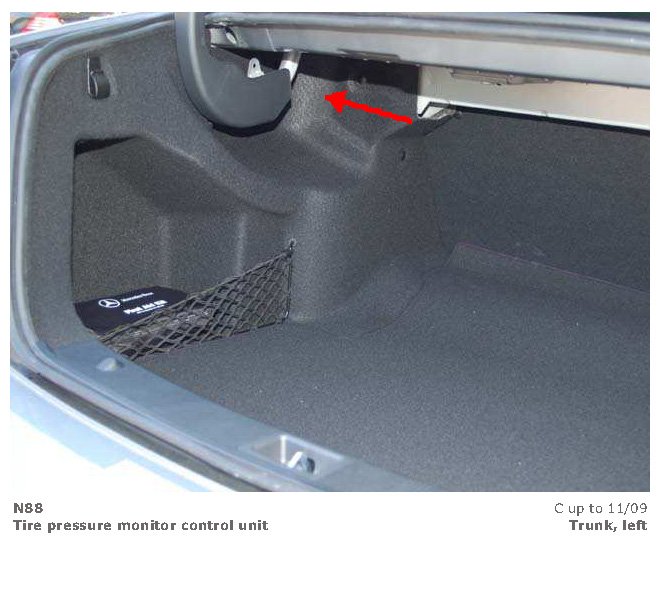

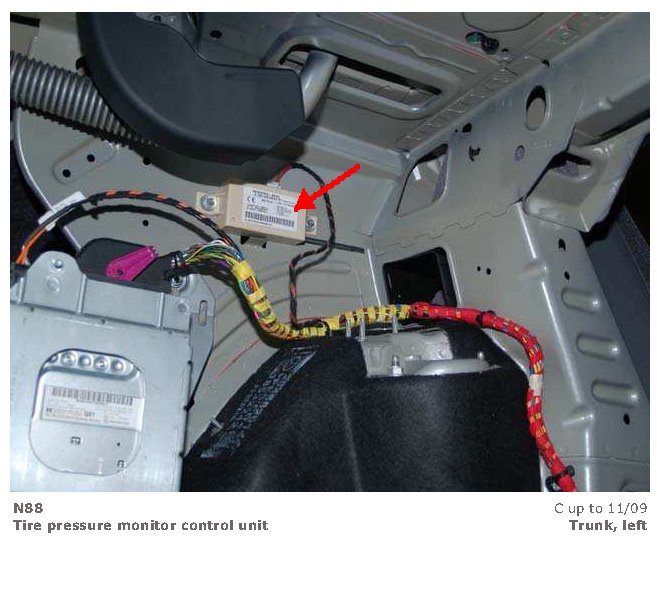

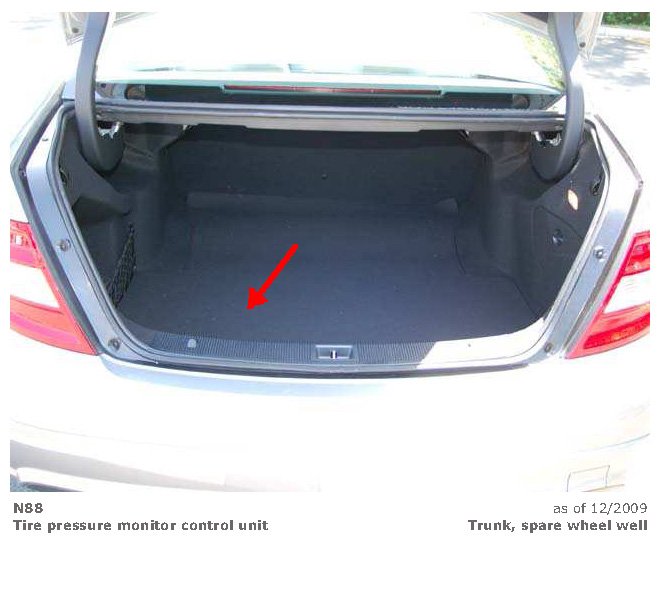

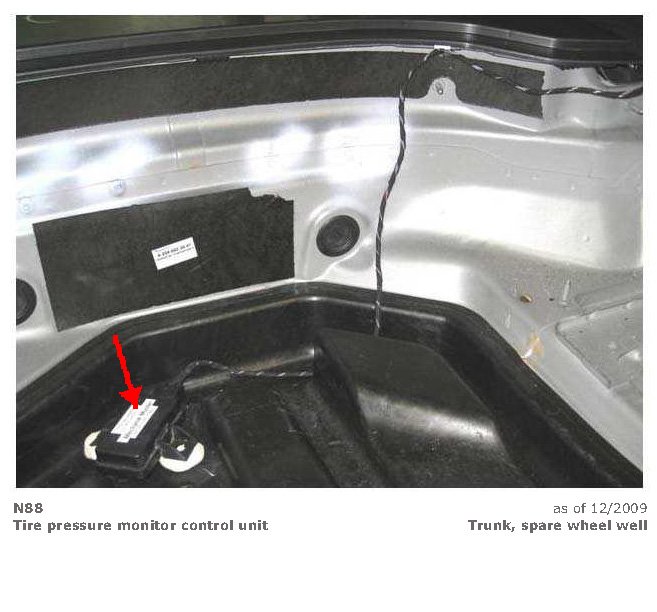

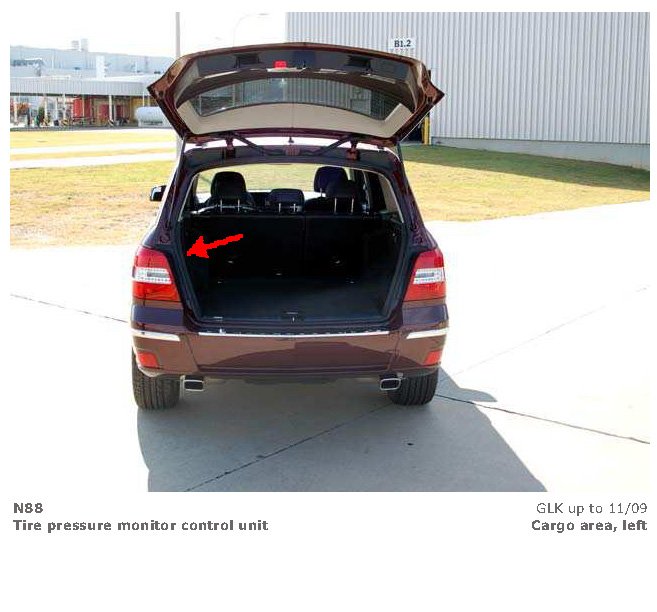

Tire Pressure Monitor Control Unit
