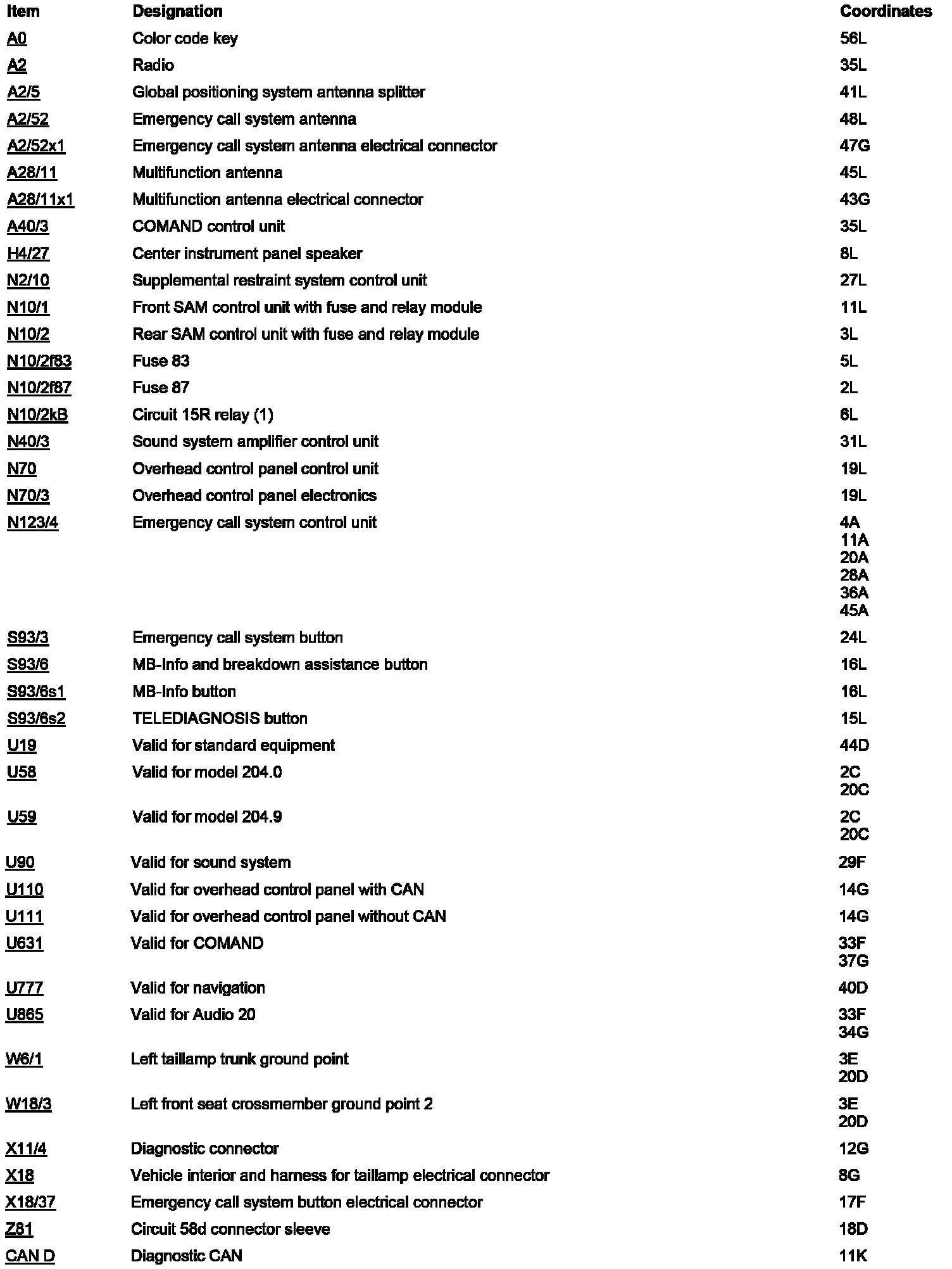

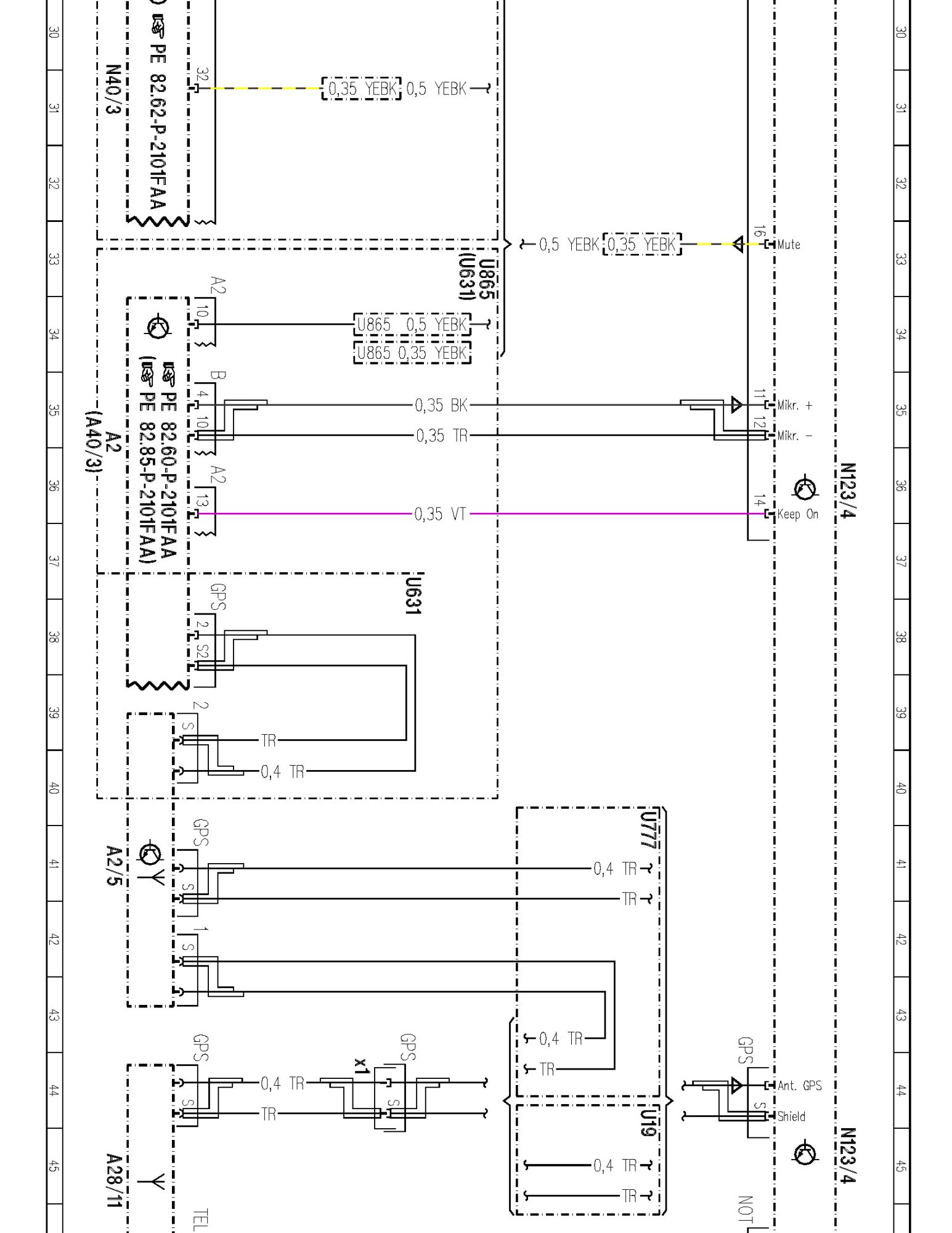

Electrical Diagrams

PE82.95-P-2101FAA Emergency Call System Control Unit
- with CODE (359) TELE AID emergency call system
- with CODE (494) USA version
- control unit N123/4






















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
