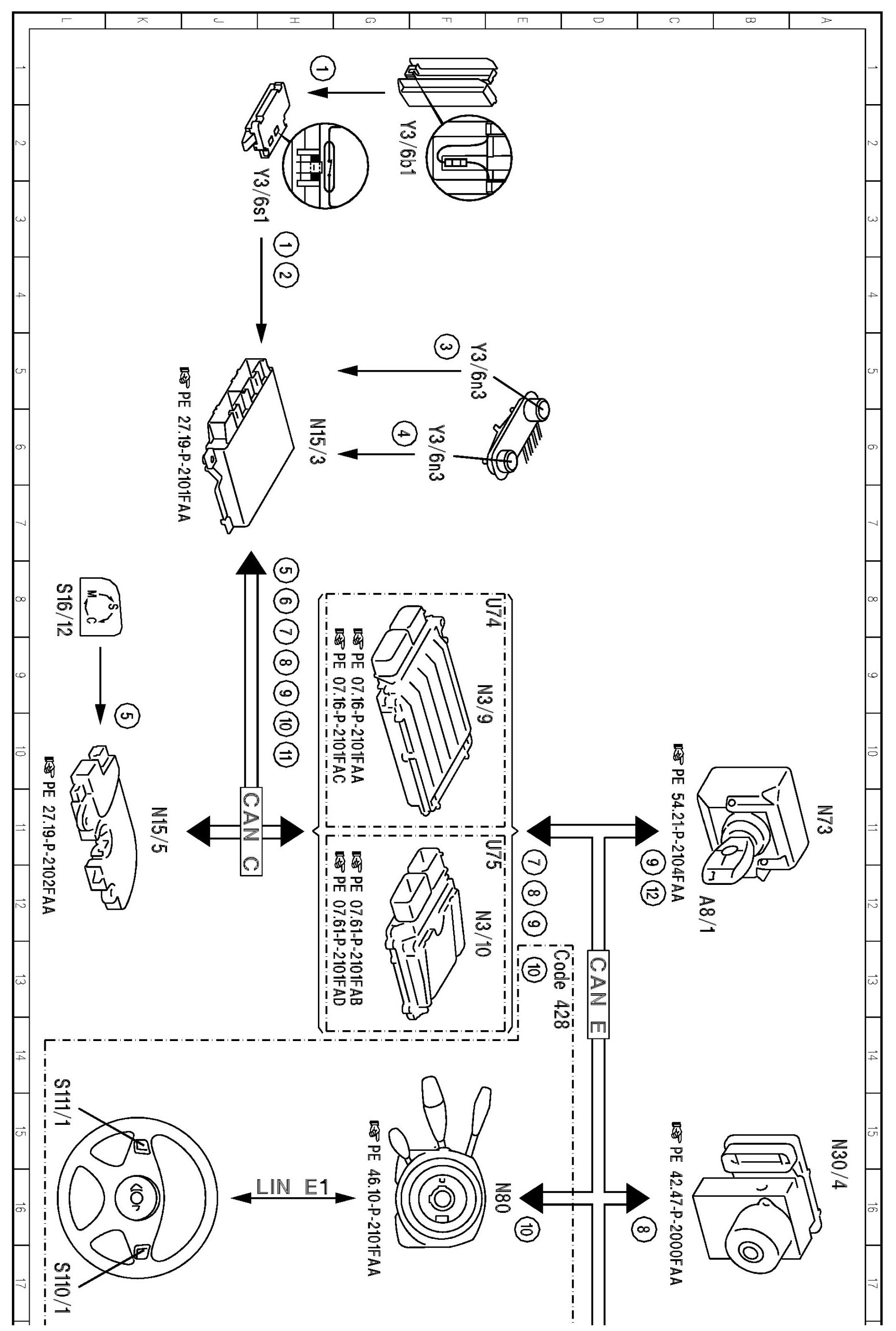

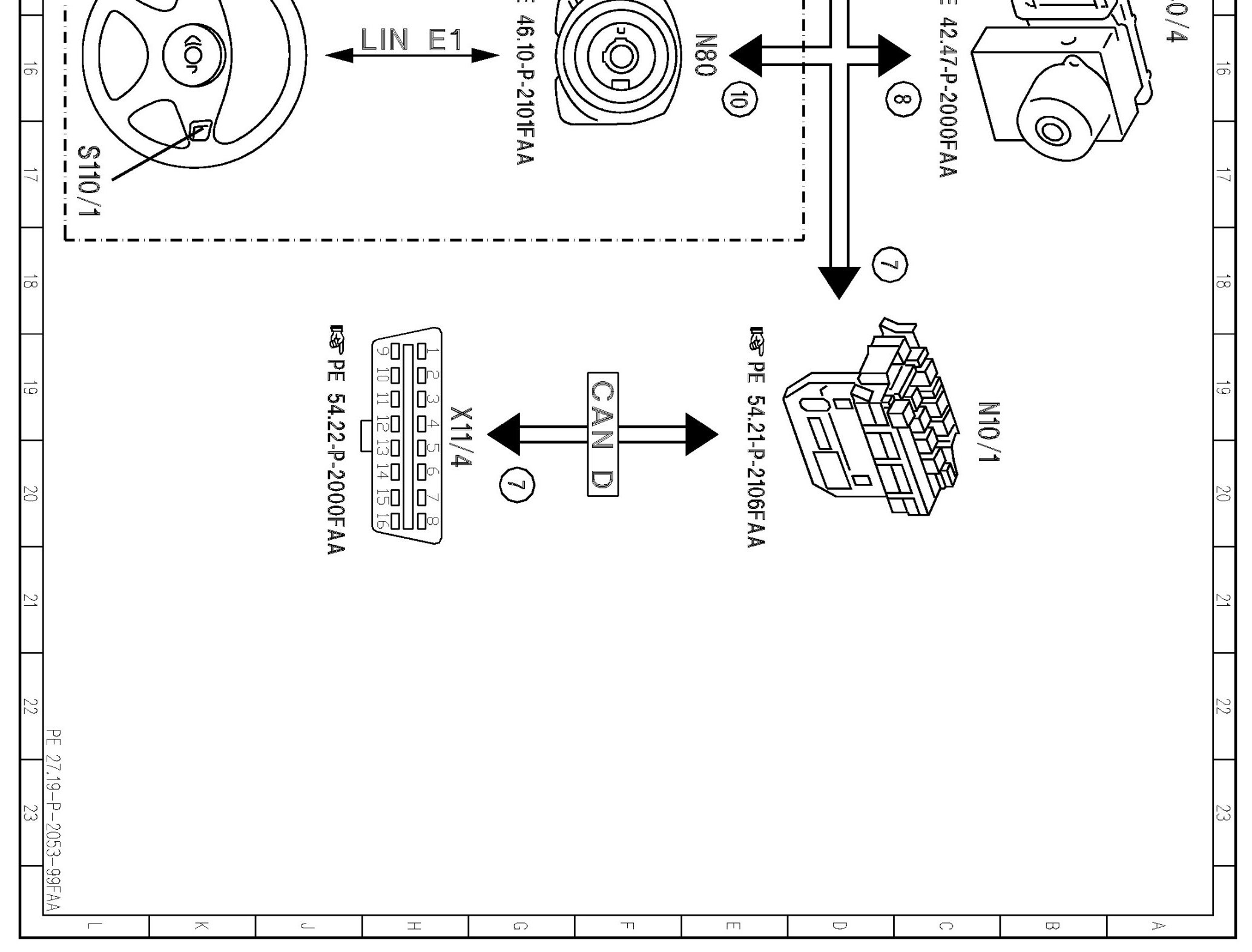

PE27.19-P-2053FAA Electrical Function Schematic For Electronic Transmission Control (ETC [EGS]) Input Signals

PE27.19-P-2053FAA Electrical Function Schematic For Electronic Transmission Control (ETC [EGS]) Input Signals

TRANSMISSION 722.6 in MODEL 204.0
- up to Model Year 08 /modification year 07

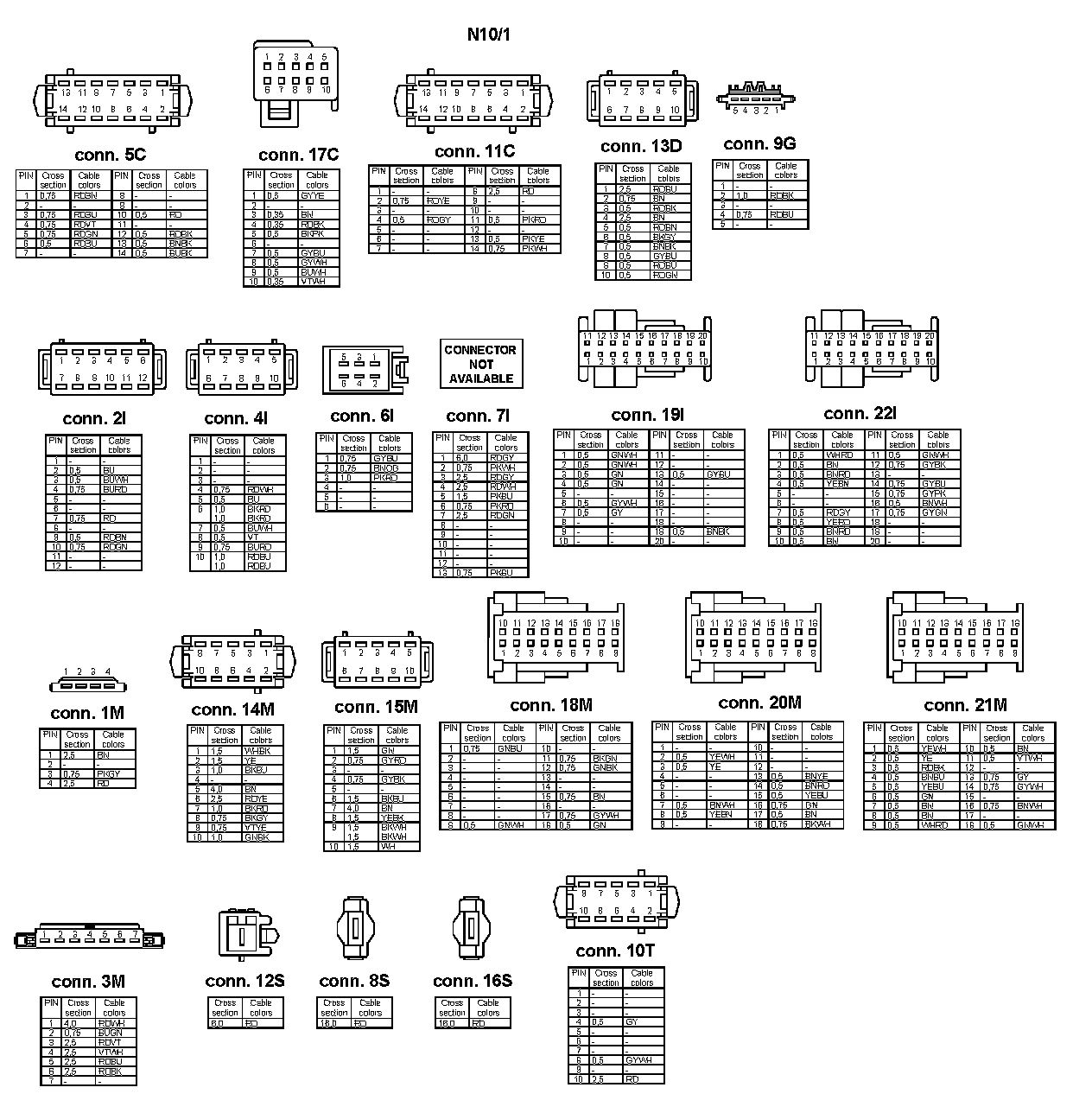

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
