AR09.20-P-1990CV Remove/Install Tumble Flap And Resonance Flap Switchover Valve To Intake Manifold



AR09.20-P-1990CV Remove, Install Tumble Flap And Resonance Flap Switchover Valve To Intake Manifold

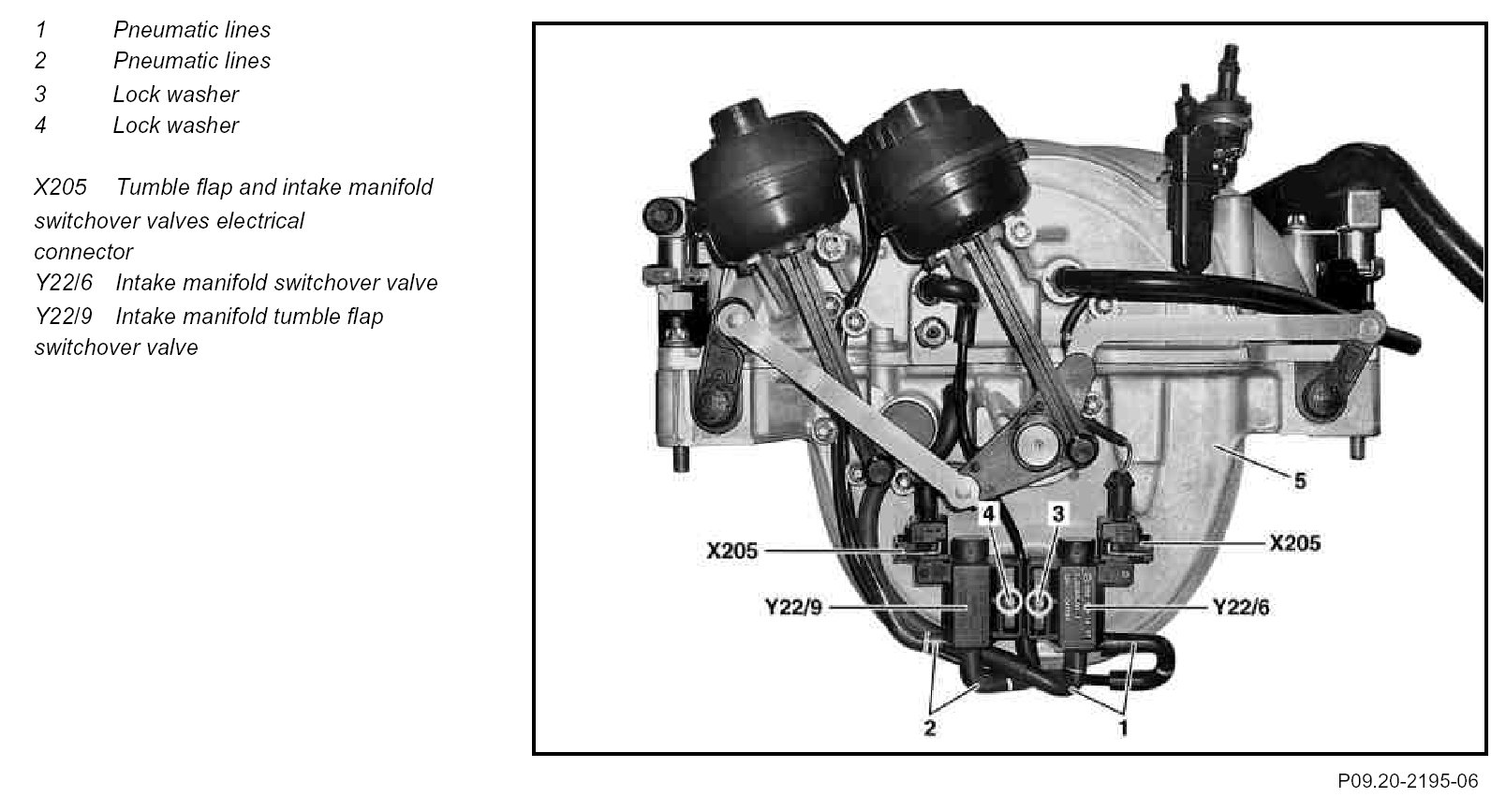

Component Identification:

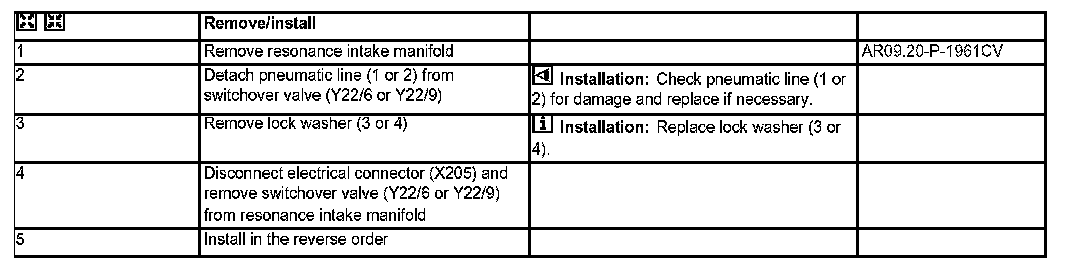

Steps 1 - 5:
