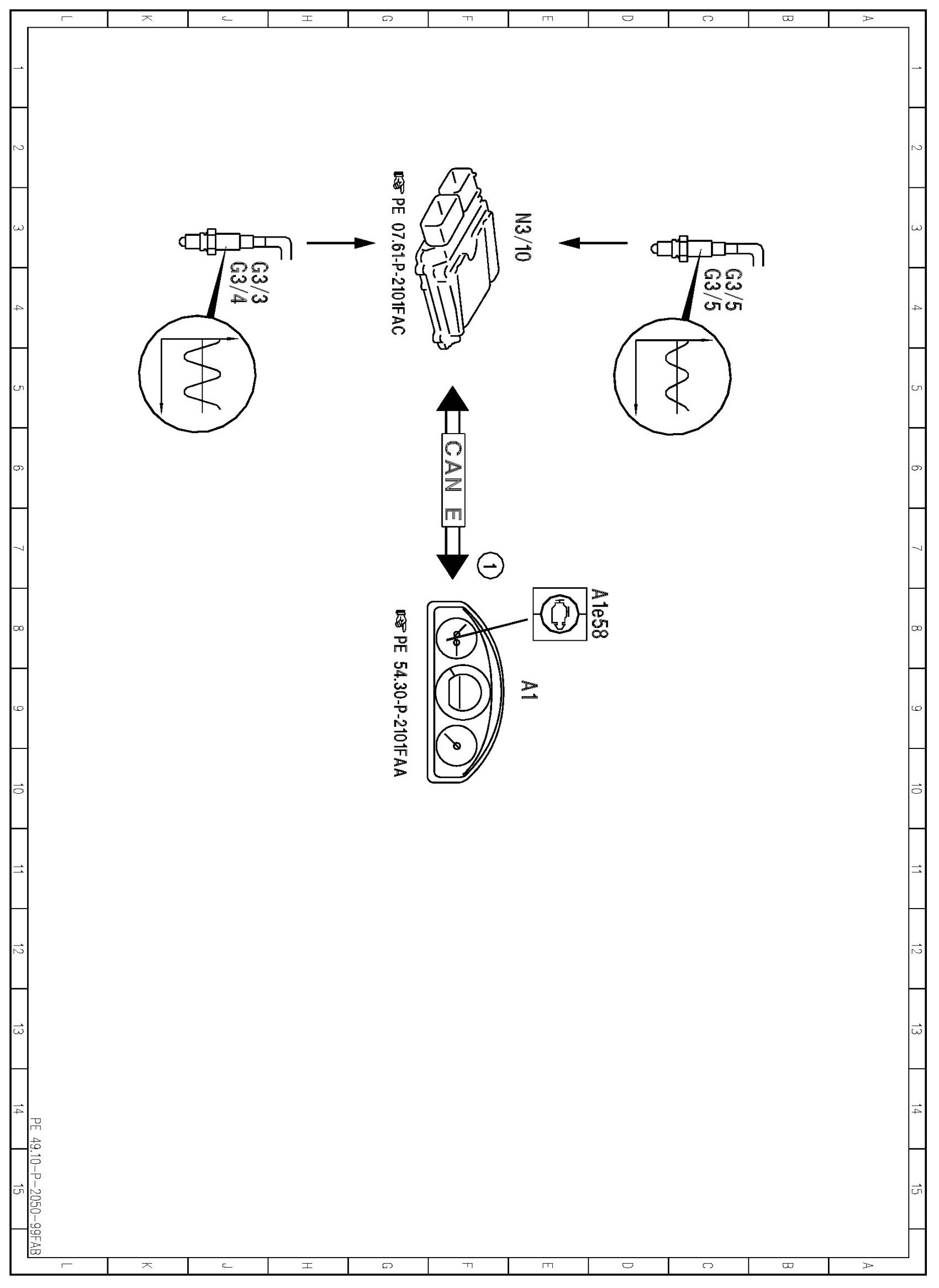

PE49.10-P-2050FAB Electrical Function Schematic For Monitoring Of Catalytic Converter Efficiency

PE49.10-P-2050FAB Electrical Function Schematic For Monitoring Of Catalytic Converter Efficiency

ENGINES 272 in MODEL 204
- up to model year 08 /AEJ 07






























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
